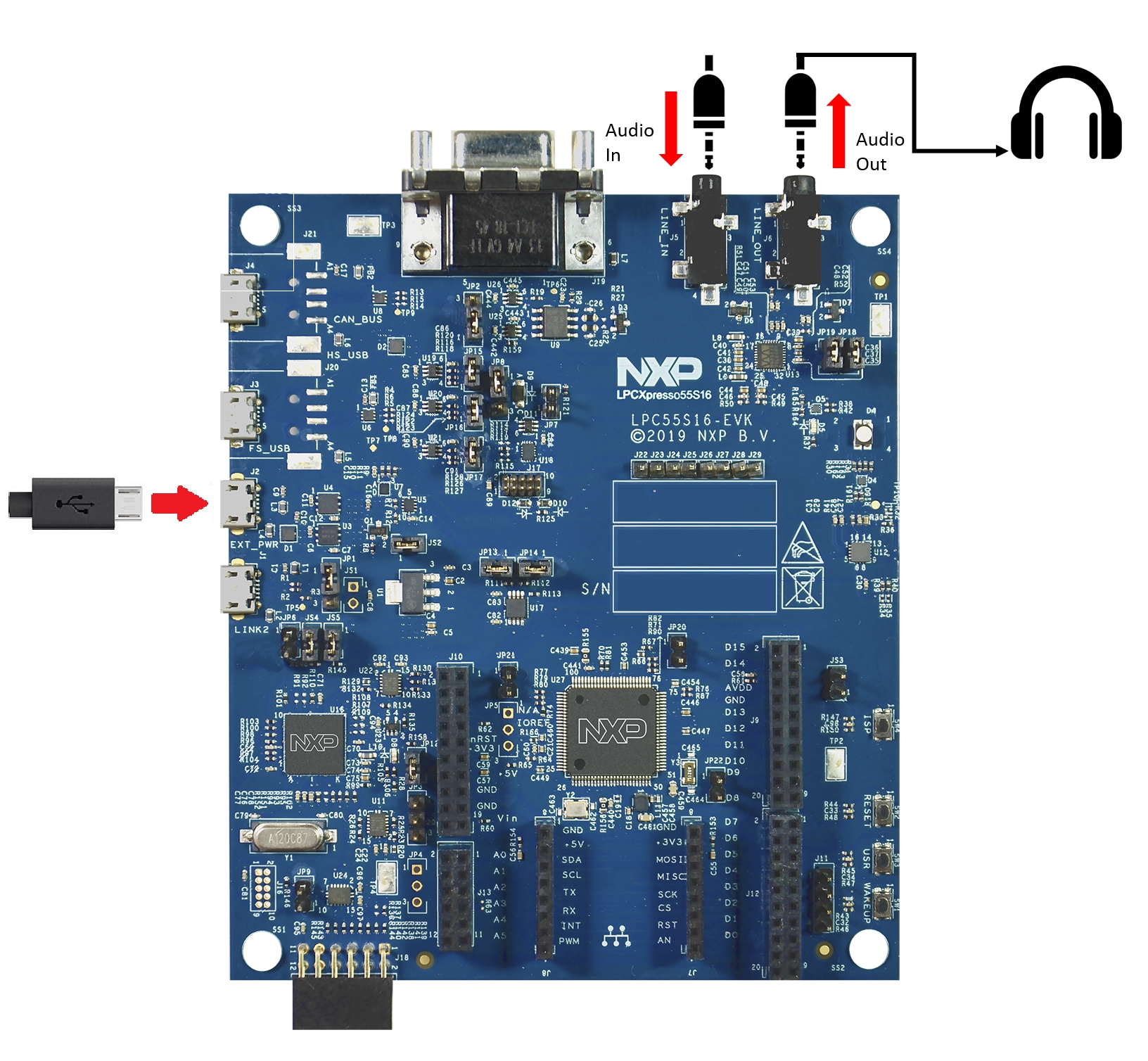

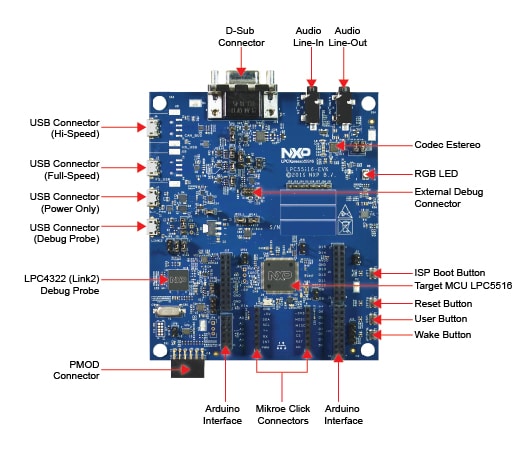

Getting Started with the LPC55S16-EVK Evaluation Board

LPCScrypt is a command-line based, fast flash, EEPROM, OTP and security programming tool for LPC microcontrollers. It is the recommended tool to program the latest CMSIS-DAP and J-Link firmware.

1. Download the LPCScrypt tool using the button below, choose your platform (Windows, MAC OC X, Linux). After the download, run the installer. During the installation the DFU and VCOM drivers will be automatically installed for all platforms, also for windows users these drivers can be managed if required by running lpc_driver_installer.exe located within the Drivers subdirectory of the LPCScrypt installation
Download
2. Launch LPCScrypt by double-clicking on the “Boot LPCScrypt” file in the LPCScrypt install C:\ProgramData\Microsoft\Windows\Start Menu\Programs\LPCScrypt.

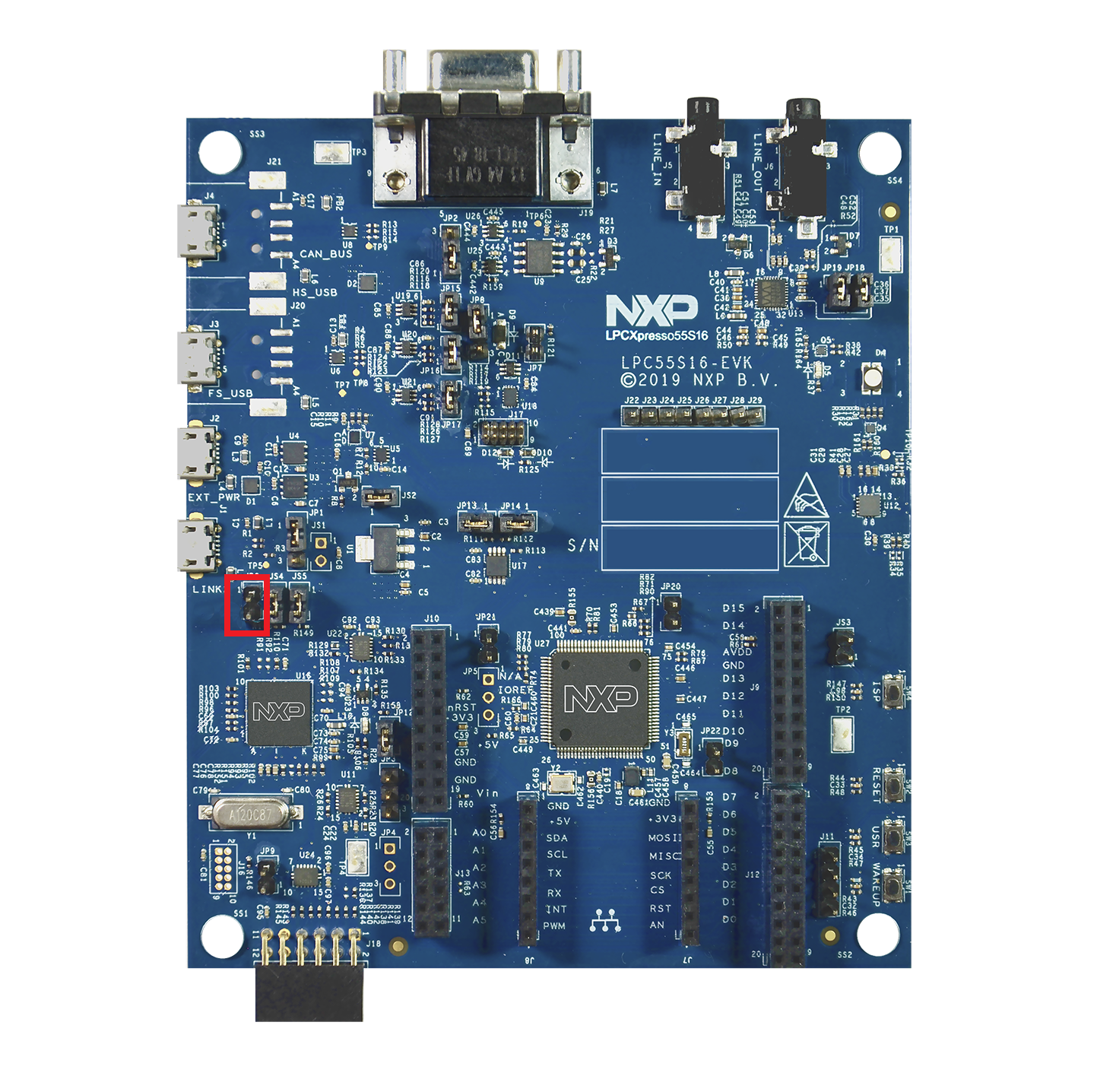

3. Configure To program an LPCXpresso v2/v3 board, first ensure that the DFULink jumper is connected. Normally DFULink can be found between the two USB; please check the information for your actual board to confirm.
   • In the LPCXpresso55S16 JP6 is the LPCXpresso DFU

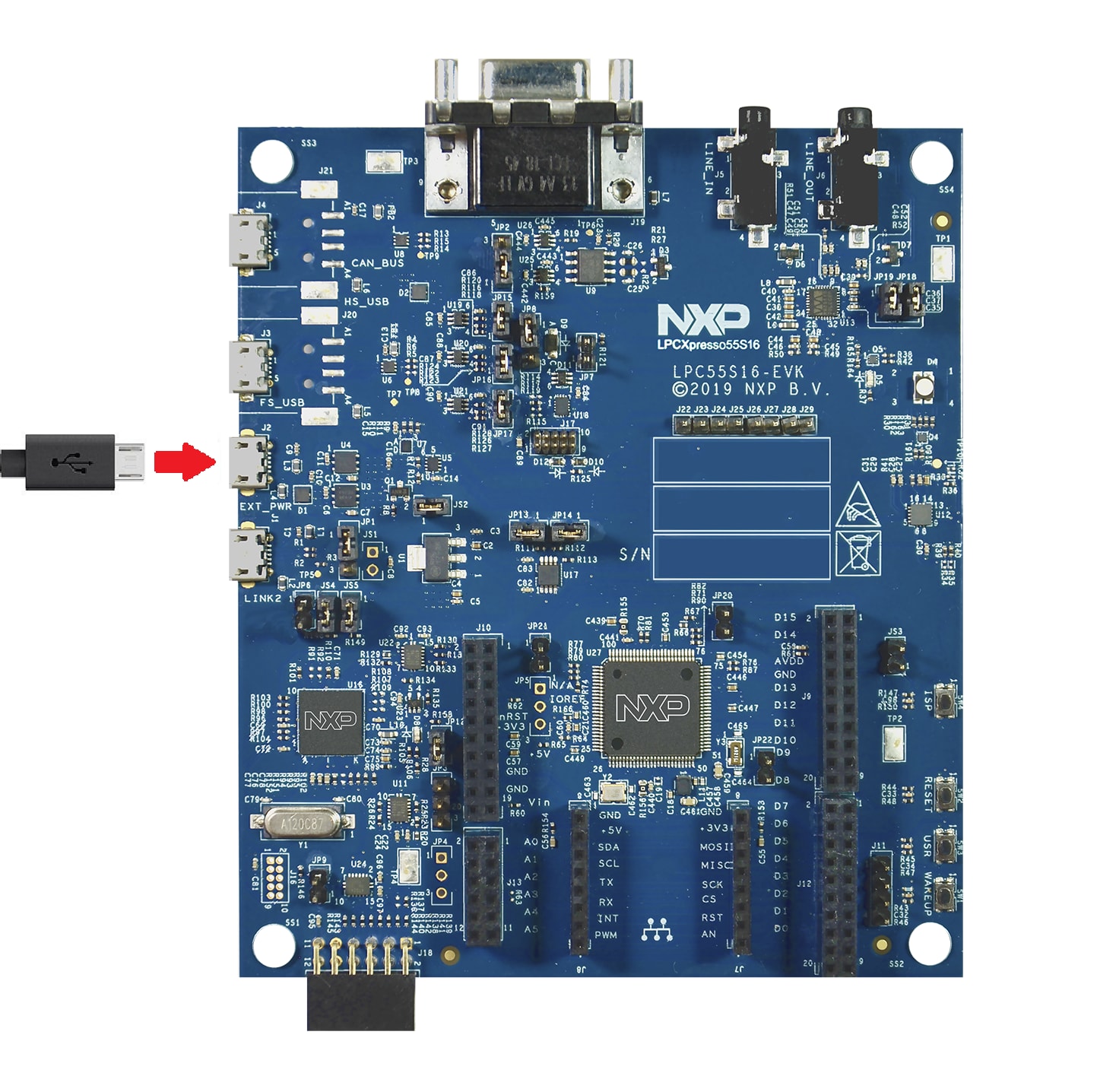

4. Connect the board to your host computer over the debug link USB connector J6, and in a command, shell run either:
   • To install CMSIS-DAP debug firmware, and call the program_CMSIS script:

   • To install JLINK debug firmware, and call the program_JLINK script:

   Notes:
   • File paths in this document use Windows directory separators, on Linux or Mac OSX these must be replaced with ‘/.’

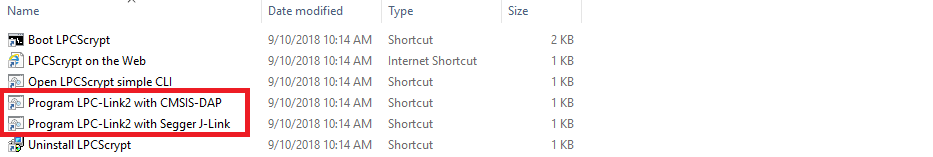

   • For Windows users, shortcuts to these scripts are available from the LPCScrypt entry on the Start menu.

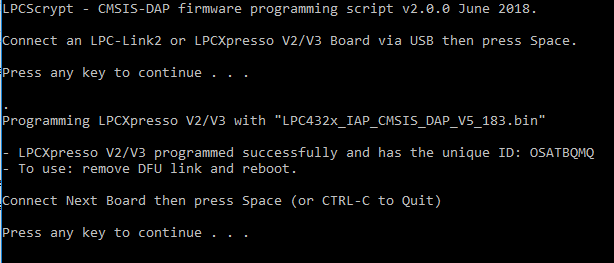

5. Verify once you select on firmware (in this case CMSIS-DAP), LPCScrypt will show something like below in its title bar.

6. Ready Once programming is complete, disconnect the board from the host, remove the DFULink jumper, then reconnect the board to the host computer. You should see the probe enumerate on the host’s USB system.

The most recent versions of General Purpose Microcontrollers IDE count with a terminal emulation application. This tool can be used to display information sent from your NXP development platform's virtual serial port.

1. Open the General Purpose Microcontrollers IDE.

2. Launch the General Purpose Microcontrollers IDE terminal by clicking on the “Open a Terminal” button on the top of the IDE or press “Ctrl + Alt + Shift + T.”

3. Select Serial Terminal

4. Configure the serial port settings (using the corresponding COM port number) to 115200 baud rate, 8 data bits, no parity and 1 stop bit, then press “OK” button.


5. Verify that the connection is open. If connected, General Purpose Microcontrollers IDE will look like the figure below at the Terminal view.



6. You're ready to go

Tera Term is a very popular open source terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.

1. Download Tera Term from SourceForge. After the download, run the installer and then return to this webpage to continue.
Download

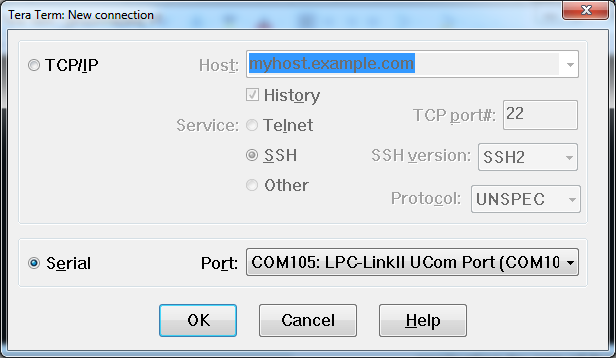

2. Launch Tera Term. The first time it launches, it will show you the following dialog. Select the serial option. Assuming your board is plugged in, there should be a COM port automatically populated in the list.

3. Configure the serial port settings (using the COM port number identified earlier) to 115200 baud rate, 8 data bits, no parity and 1 stop bit. To do this, go to Setup -> Serial Port and change the settings.

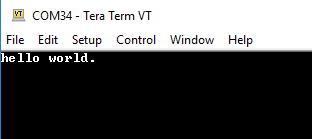

4. Verify that the connection is open. If connected, Tera Term will show something like below in it's title bar.

PuTTY is a popular terminal emulation application. This program can be used to display information sent from your NXP development platform's virtual serial port.

1. Download PuTTY using the button below. After the download, run the installer and then return to this webpage to continue.
Download
2. Launch PuTTY by either double clicking on the *.exe file you downloaded or from the Start menu, depending on the type of download you selected.
3. Configure In the window that launches, select the Serial radio button and enter the COM port number that you determined earlier. Also enter the baud rate, in this case 115200.

4. Click Open to open the serial connection. Assuming the board is connected and you entered the correct COM port, the terminal window will open. If the configuration is not correct, PuTTY will alert you.

5. You're ready to go

1. Import the General Purpose Microcontrollers SDK
1. Open the General Purpose Microcontrollers IDE and close the welcome page.

2. Switch to the Installed SDKs view within the General Purpose Microcontrollers IDE window.

3. Drag and drop the LPCXpresso55S16 SDK (zipped) file into the Installed SDKs view.

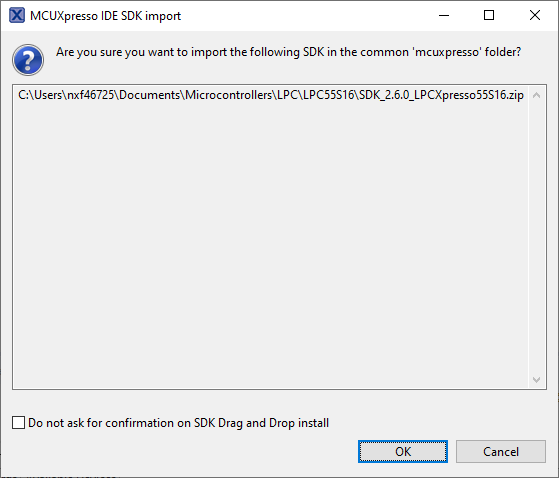

4. You will get the following pop-up. Click on OK to continue the import:

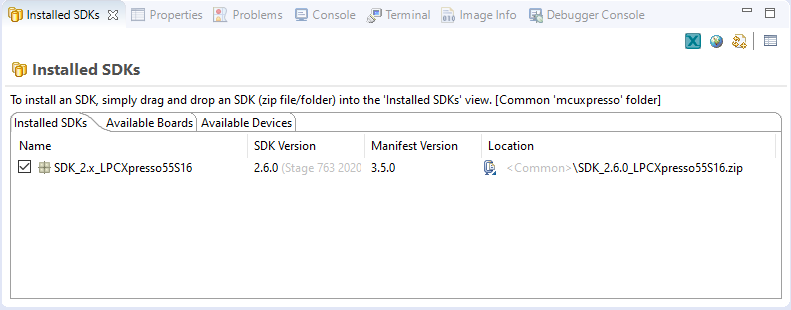

5. The installed SDK will appear in the Installed SDKs view as shown below:

2. Build an Example Application

   The following steps will guide you through opening the hello_world example.

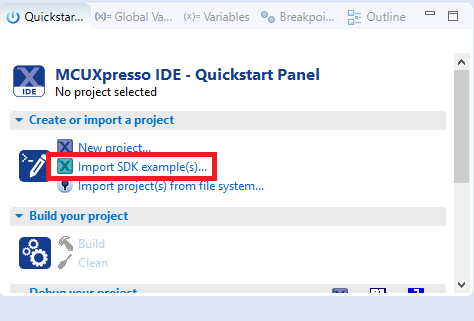

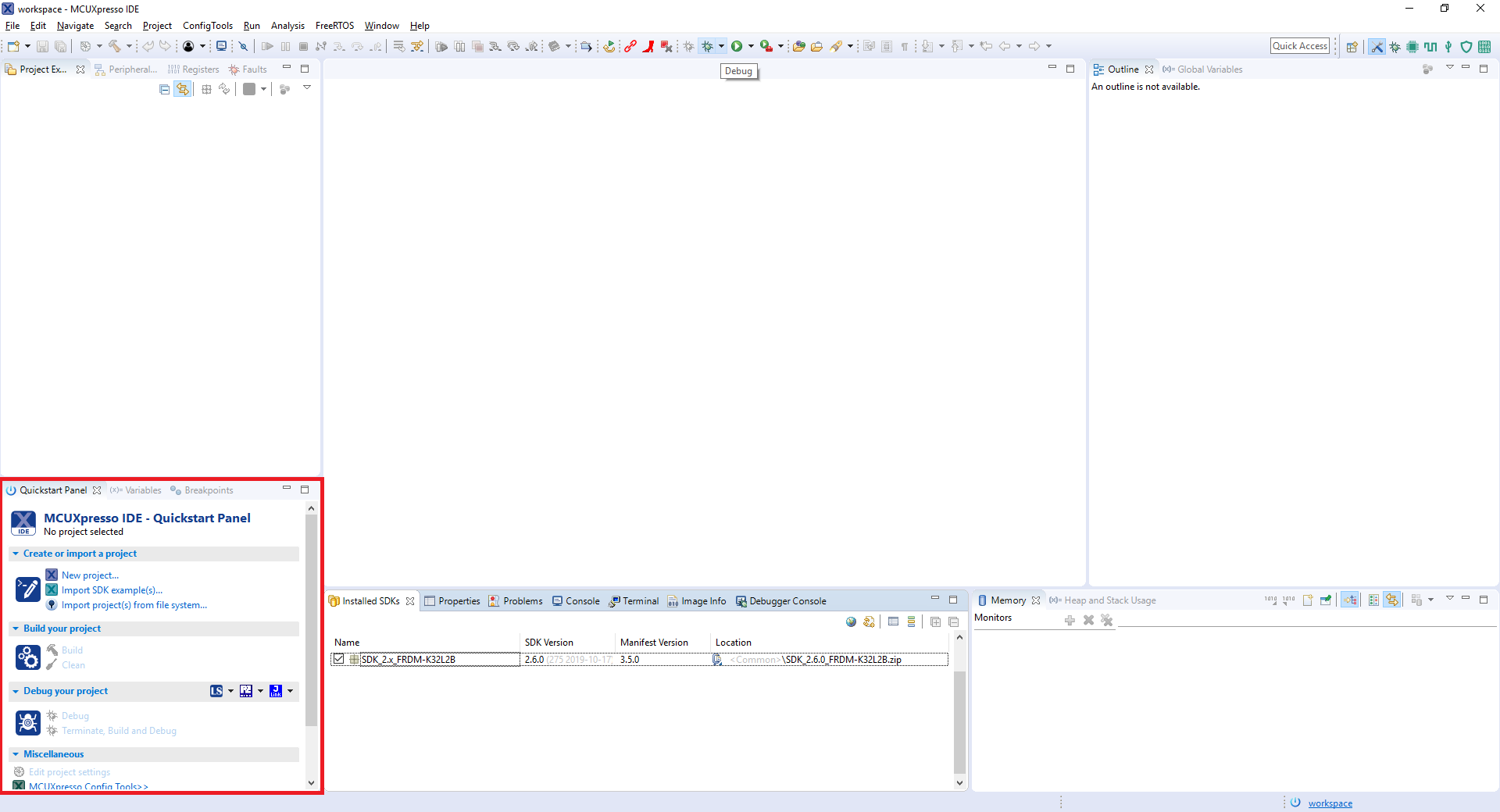

   1. Find the Quickstart Panel in the lower left-hand corner

   2. Then click on Import SDK examples(s)…

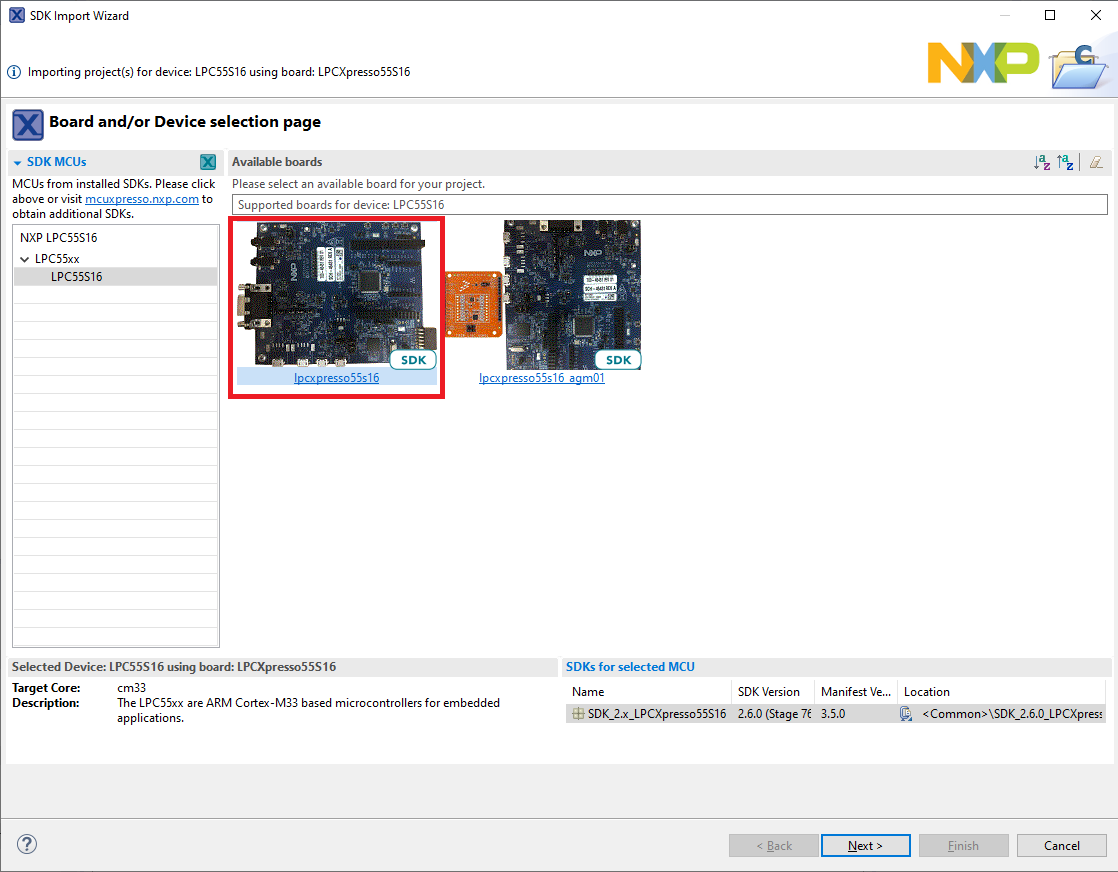

   3. Click on the LPCXpresso55S16 board to select that you want to import an example that can run on that board, and then click on Next.

   4. Use the arrow button to expand the demo_apps category, and then click the checkbox next to hello_world to select that project. To use the UART for printing (instead of the default semihosting), Select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish.

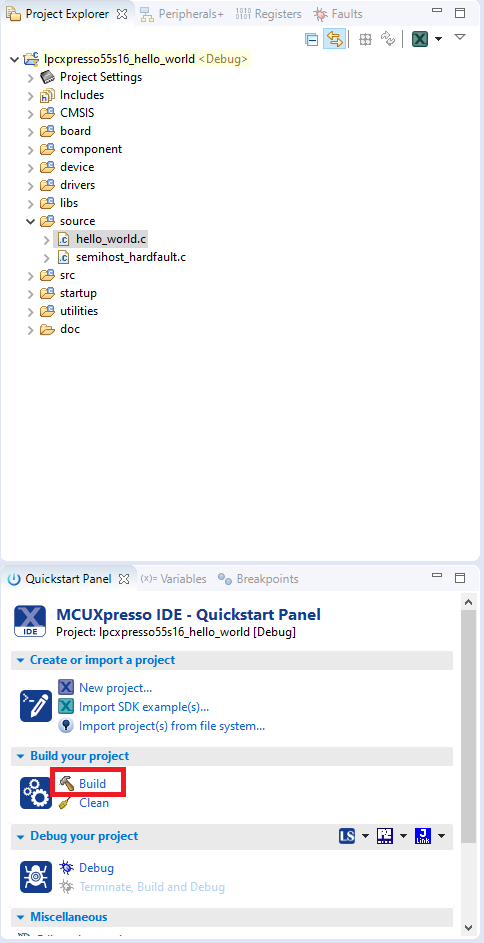

   5. Now build the project by clicking on the project name and then in the Quickstart Panel click on Build or press “Ctrl + b.”

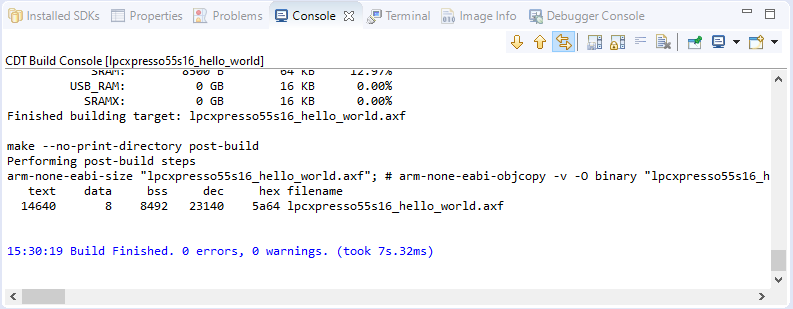

   6. You can see the status of the build in the Console tab.

3. Run an Example Application
   1. Now that the project has been compiled, you can now flash it to the board and run it.
   2. Make sure the LPCXpresso55S16 board is plugged in and click on Debug in the Quickstart Panel.

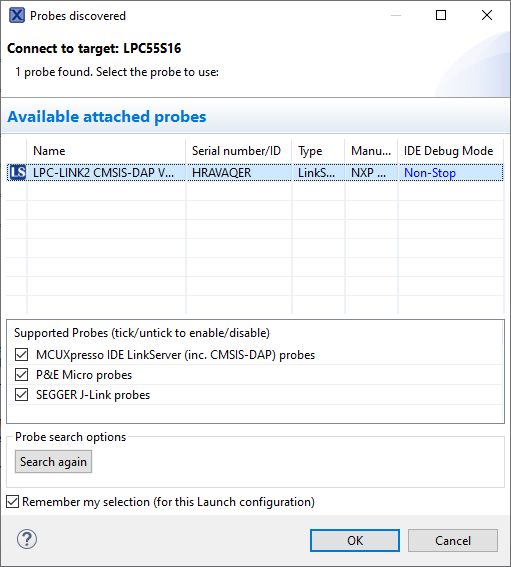

   3. General Purpose Microcontrollers IDE will probe for connected boards and should find the CMSIS-DAP debug probe that is part of the integrated LPC-LINK2 circuit on the LPCXpresso55S16. Click on OK to continue.

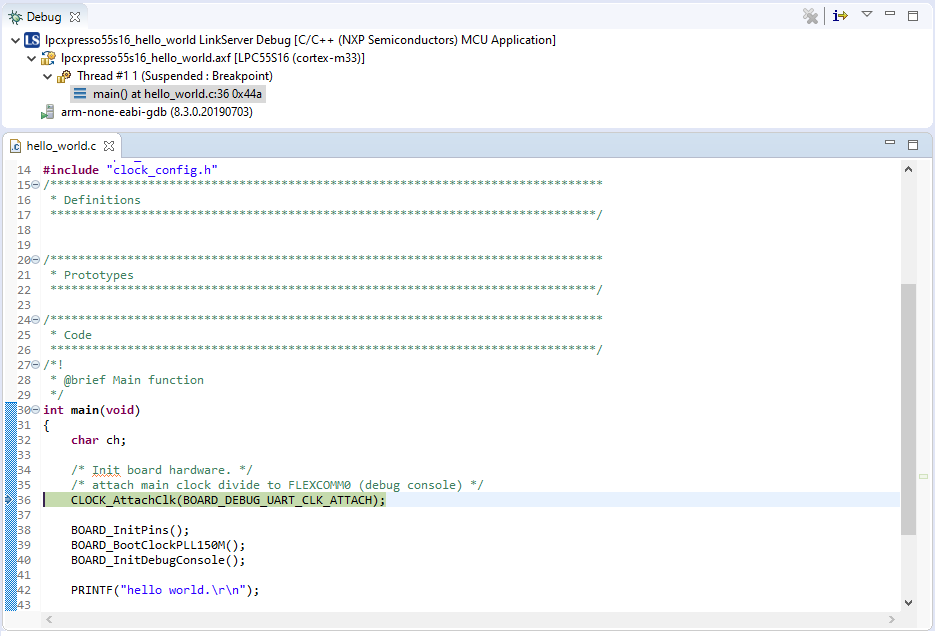

   4. The firmware will be downloaded to the board, and the debugger started.

   5. Open a terminal program and connect to the COM port the board enumerated as. Configure the terminal with these settings:
      • 115200 baud rate.
      • No parity.
      • 8 data bits
      • 1 stop bit

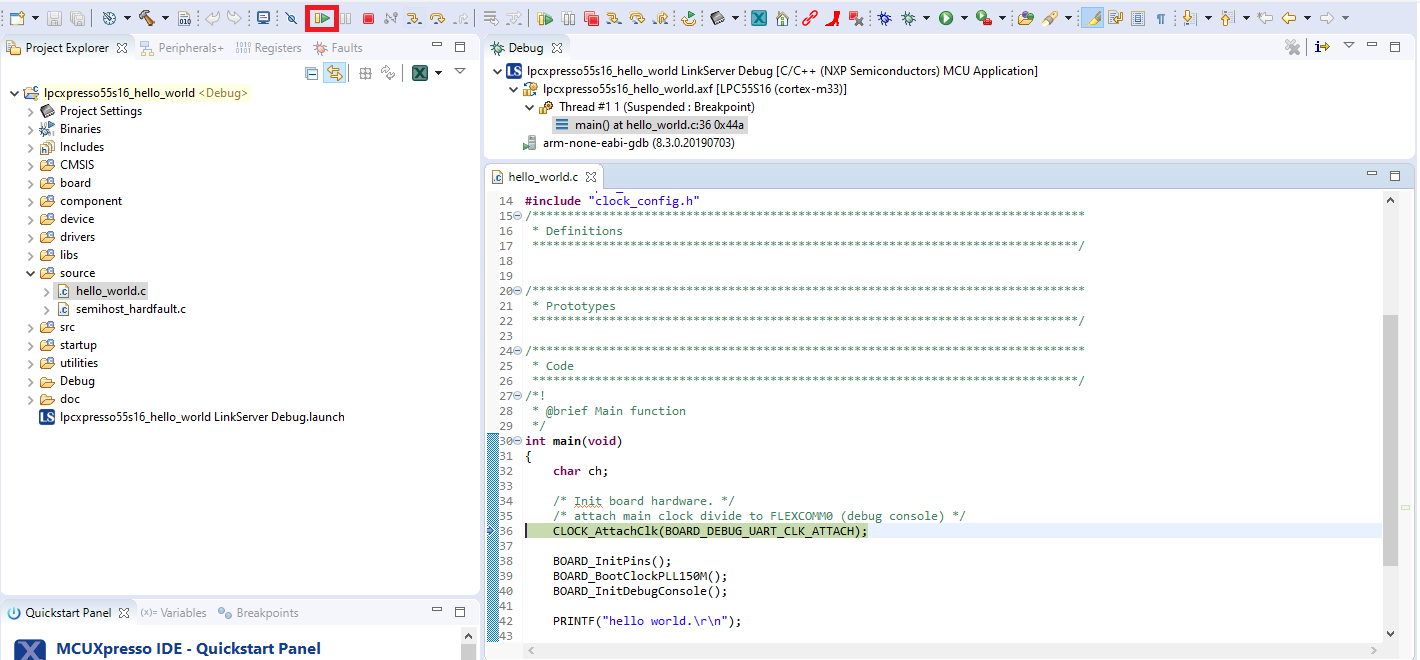

   6. Start the application by clicking the "Resume" button:

   7. The hello_world application is now running, and a banner is displayed on the terminal. If this is not the case, check your terminal settings and connections.

   8. Use the controls in the menu bar to pause, step into, and step over instructions, and then stop the debugging session by click on the Terminate icon.


1. Build an Example Application

The following steps will guide you through opening the hello_world application. These steps may change slightly for other example applications as some of these applications may have additional layers of folders in their path.

1. First unzip the previously downloaded SDK.
2. If not already done, open the desired example application workspace. Most example application workspace files can be located using the following path:

<install_dir>/boards/<sdk_board_name>/<example_type>/<application_name>/iar

Using the hello_world demo as an example, the path is:

<install_dir>/boards/LPCXpresso55S16/demo_apps/hello_world/iar

3. Select the desired build target from the drop-down. For this example, select the “hello_world – Debug” target.

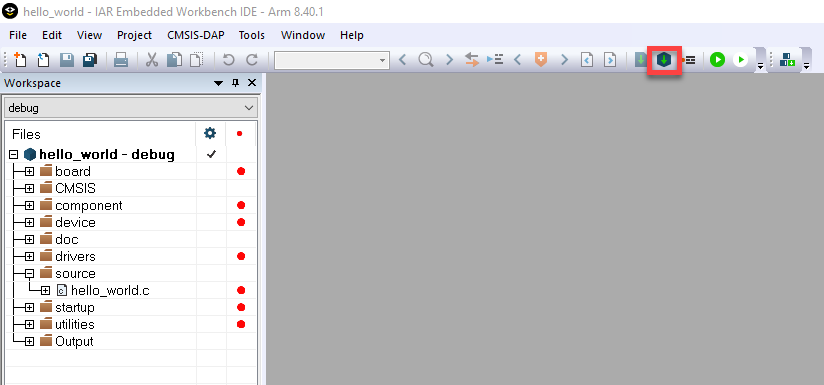

4. To build the application, click the “Make” button, highlighted in red below.

5. The build will complete without errors.

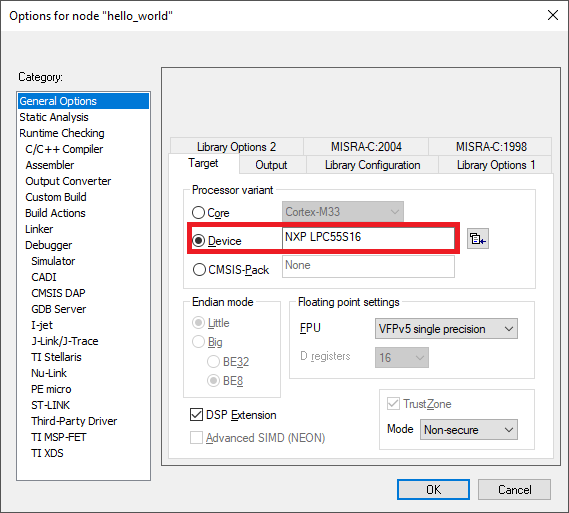

*Note: In case of building errors, make sure that the correct Board is selected, right click in the project >> Options >> General Options >> Target >> Device, Select the LPC55S16, this board is support in IAR Embedded Workbench for Arm version 8.50.1 or Higher.


2. Run an Example Application

The LPCXpresso55S16 board comes loaded with the CMSIS-DAP debug interface from the factory. If you have changed the debug LPC-LINK2 application on your board, visit step 2.3 LPCScrypt tutorial in this getting started.

1. Connect the development platform to your PC via USB cable to P6 “Debug Link.” Ensure the DFULink jumper (JP6) is removed when powering the board to boot the debug probe from internal flash.

2. Open the terminal application on the PC (such as PuTTY or Tera Term) and connect to the debug COM port you determined earlier. Configure the terminal with these settings:
1. 115200 baud rate
2. No parity
3. 8 data bits
4. 1 stop bit
3. Click the "Download and Debug" button to download the application to the target.

4. The application is then downloaded to the target and automatically runs to the main () function.
5. Run the code by clicking the "Go" button to start the application.

6. The hello_world application is now running, and a banner is displayed on the terminal. If this is not the case, check your terminal settings and connections.

1. Install CMSIS device pack

After the MDK tools are installed, Cortex^® Microcontroller Software Interface Standard (CMSIS) device packs must be installed to fully support the device from a debug perspective. These packs include things such as memory map information, register definitions and flash programming algorithms. Follow these steps to install the appropriate CMSIS pack.

1. Open the MDK IDE, which is called µVision. In the IDE, select the "Pack Installer" icon.

2. In the Pack Installer window, search for “LPC55S16” to bring up the LPC55S16 family. Click on the LPC55S16 name, and then in the right-hand side you’ll see the NXP::LPCXpresso55S16_BSP pack. Click on the “Install” button next to the pack. This process requires an internet connection to successfully complete.

3. After the installation finishes, close the Pack Installer window and return to the µVision IDE.
2. Build the Example Application

The following steps will guide you through opening the hello_world application. These steps may change slightly for other example applications as some of these applications may have additional layers of folders in their path.

1. If not already done, open the desired demo application workspace in:

<install_dir>/boards/<sdk_board_name>/<example_type>/<application_name>/mdk

The workspace file is named <application_name>.uvmpw, so for this specific example, the actual path is:

<install_dir>/boards/LPCXpresso55S16/demo_apps/hello_world/mdk/hello_world.uvmpw

2. To build the demo project, select the "Rebuild" button, highlighted in red.

3. The build will complete without errors.
3. Run an Example Application

The LPCXpresso55S16 board comes loaded with the CMSIS-DAP debug interface from the factory. If you have changed the debug LPC-LINK2 application on your board, check the LPCScrypt tutorial describe in the past section.

1. 1. Connect the development platform to your PC via USB cable to P6 “Debug Link”. Ensure the DFULink jumper (JP6) is removed when powering the board to boot the debug probe from internal flash.

2. Open the terminal application on the PC (such as PuTTY or Tera Term) and connect to the debug COM port you determined earlier. Configure the terminal with these settings:
1. 115200 baud rate
2. No parity
3. 8 data bits
4. 1 stop bit
3. After the application is properly built, click the "Download" button to download the application to the target.

4. Click on “Start/Stop Debug Session” to open the debug view.

5. Run the code by clicking the "Run" button to start the application.

6. The hello_world application is now running, and a banner is displayed on the terminal. If this is not the case, check your terminal settings and connections.

1. Build an Example Application

   The following steps will guide you through opening the sctimer pwm duty cycle change example. The example sets up a PWM signal and periodically updates the signals duty cycle.

   1. Find the Quickstart Panel in the lower left-hand corner.

   2. Then click on Import SDK examples(s)…

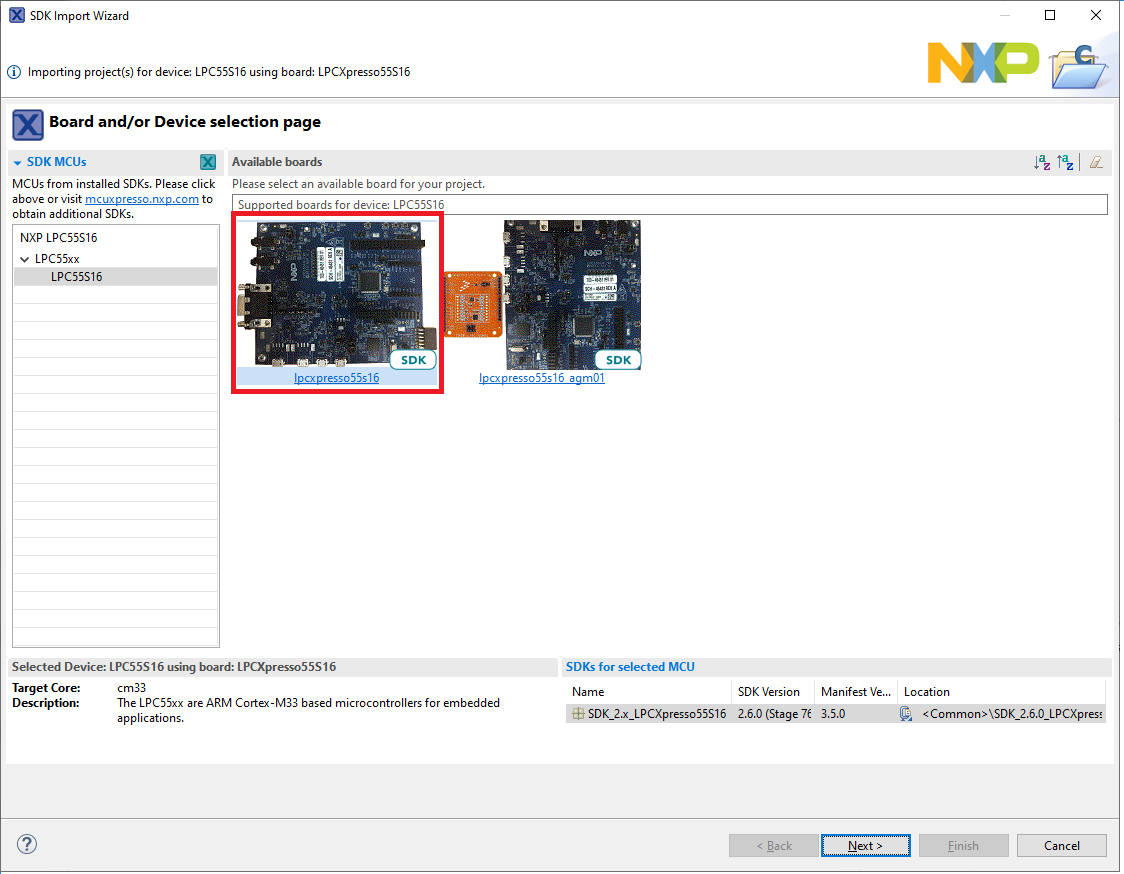

   3. Click on the LPCXpresso55S16 board to select that you want to import an example that can run on that board, and then click on Next.

   4. Use the arrow button to expand the driver_examples category, then expand the sctimer examples, click on the check box next to sctimer_pwm_with_dutycycle_change to select it. To use the UART for printing (instead of the default semihosting), Select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish.

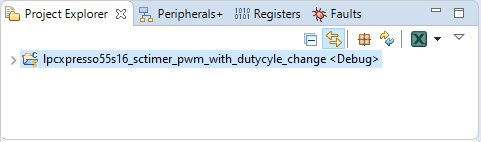

   5. Click on the “lpcxpresso55s16_sctimer_pwm_with_dutycycle_change” project in the Project Explorer View and build, compile, and run the demo as described previously.

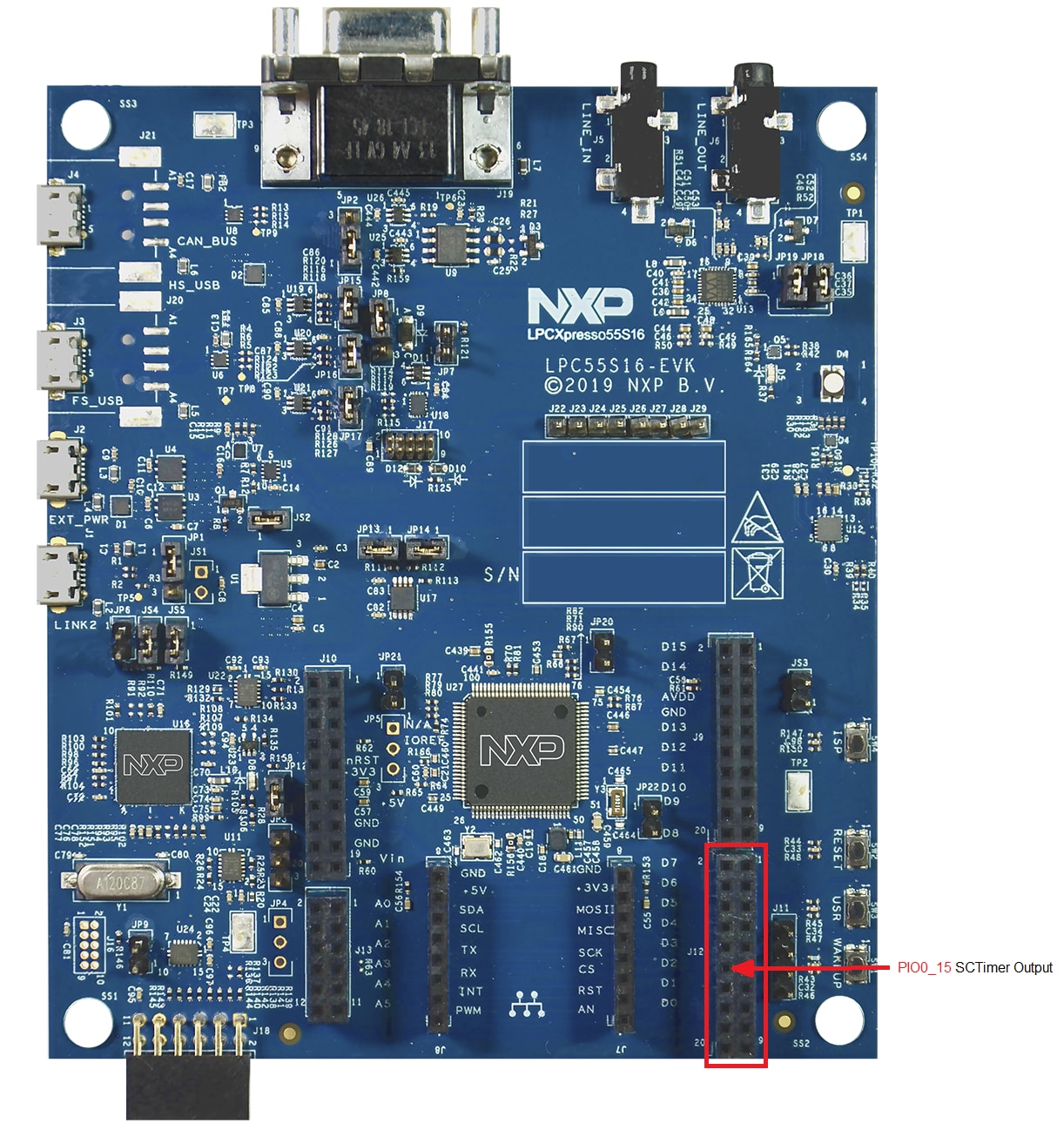

   6. You should see a change in LED brightness if a LED is connected to the SCTimer output pin, otherwise, you could see the change of the duty cycle using an oscilloscope.


      **NOTE. On “Use Pin Tool” tutorial you will learn to change the SCTimer output pin to an RGB LED of the board and see the LED “breathing”

   7. Terminate the debug session.

The following steps will guide you through opening the sctimer pwm duty cycle change example. The example sets up a PWM signal and periodically updates the signals duty cycle.

1. Open the General Purpose Microcontrollers Config Tool.

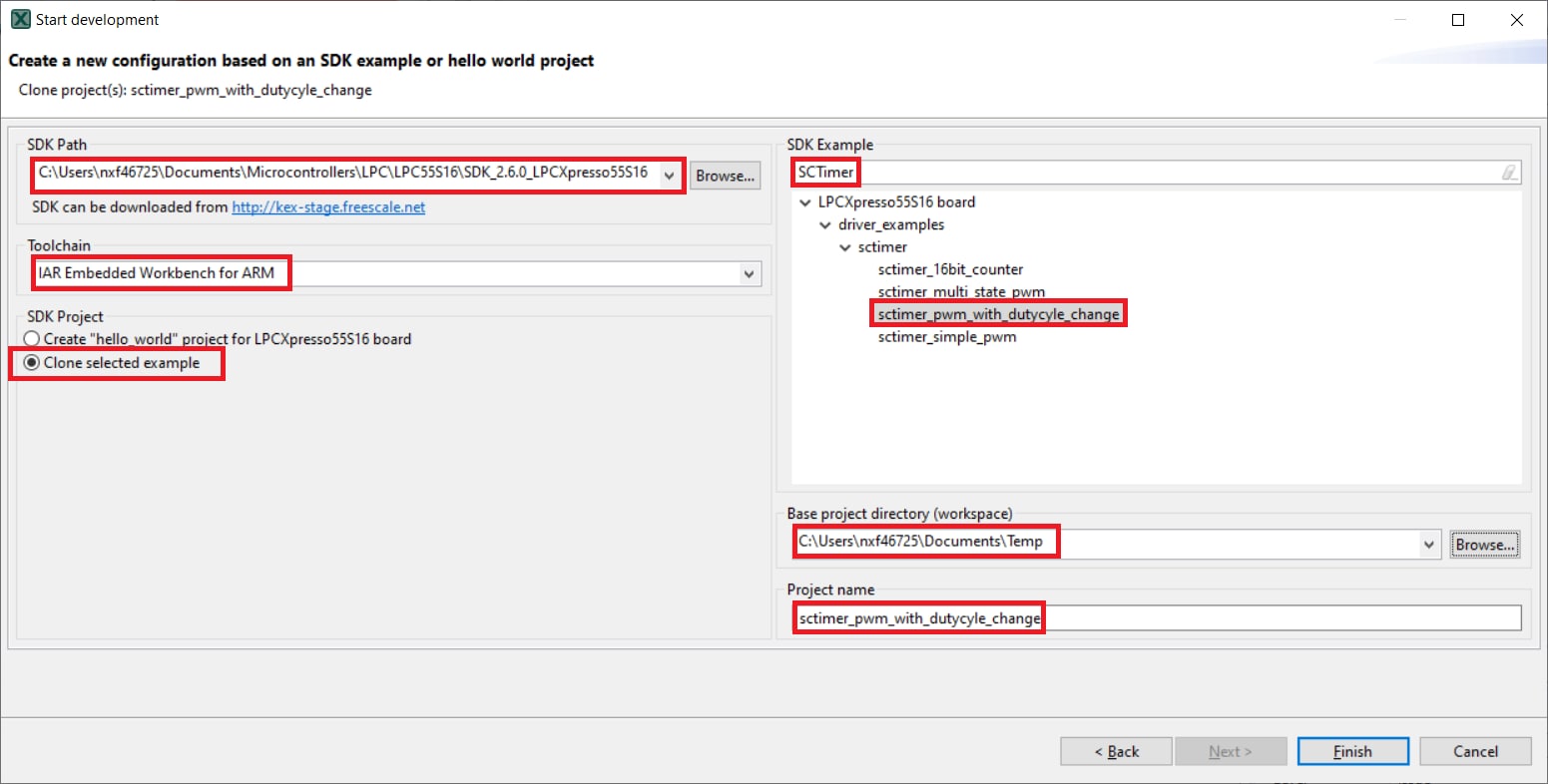

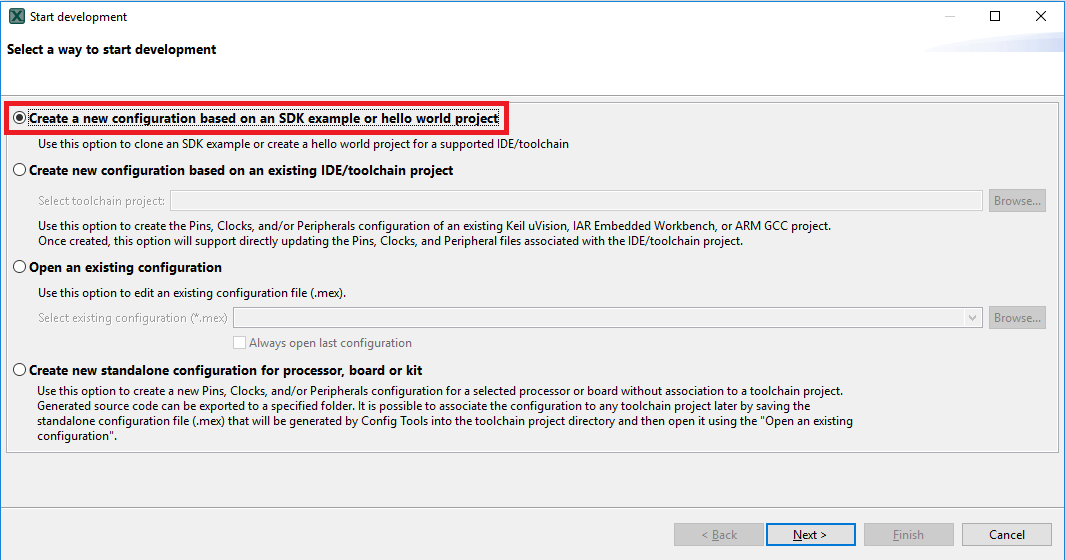

2. In the wizard that comes up, select the “Create a new configuration based on an SDK example or hello word project” radio button and click on Next.

3. On the next screen, select the location of the General Purpose Microcontrollers SDK that you had unzipped earlier. Then select the IDE that is being used. Note that only IDEs that were selected in the online SDK builder when the SDK was built will be available and click on clone select example.

   Then select the project to clone. For this example, we want to use the SCTimer pwm project. You can filter for this by typing “sctimer” in the filter box and then selecting the “sctimer_pwm_with_dutycycle_change” example project. You can then also specify where to clone the project and the name. Then click on Finish.


4. After cloning go to the directory you selected and open the project for your IDE. Import, compile, and run the project as done in previous sections.
5. You should see a change in LED brightness if a LED is connected to the SCTimer output pin, otherwise, you could see the change of the duty cycle using an oscilloscope.


   **NOTE. On “Use Pin Tool” tutorial you will learn to change the SCTimer output pin to an RGB LED of the board and see the LED “breathing”

6. Terminate the debug session.

*Note: Previously, you had to clone an SDK project like in the previous step.

1. To open pin tools in General Purpose Microcontrollers IDE:

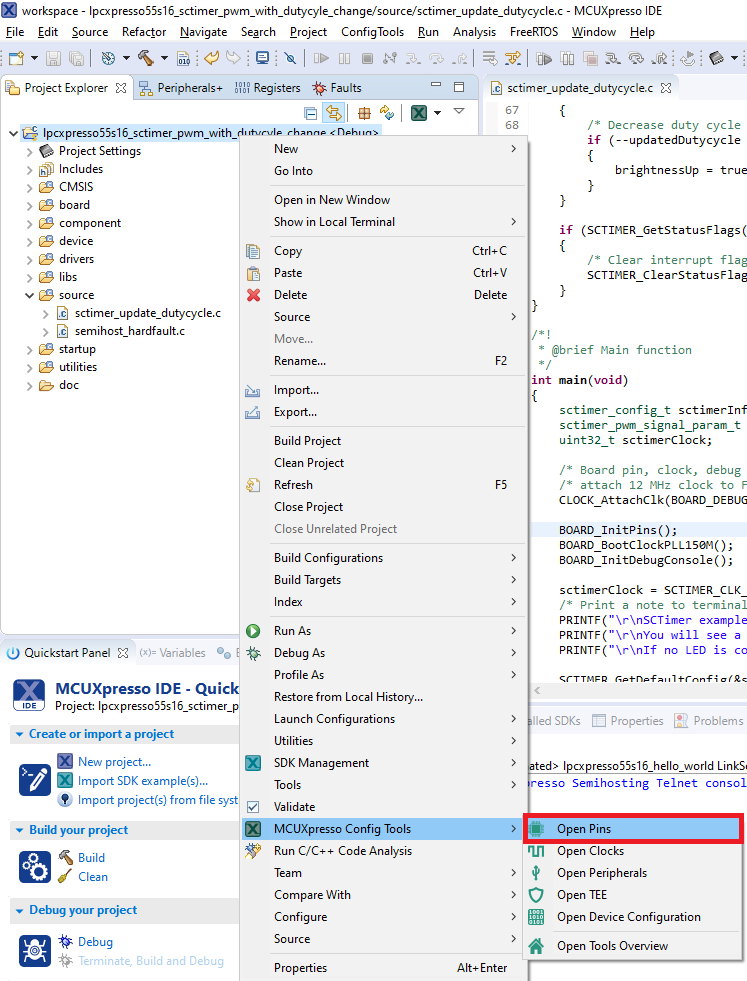

   1. Open the pins tool by right clicking on the “lpcxpresso55s16_sctimer_pwm_dutycycle_change” project, and selecting “General Purpose Microcontrollers Config Tools” and then “Open Pins”

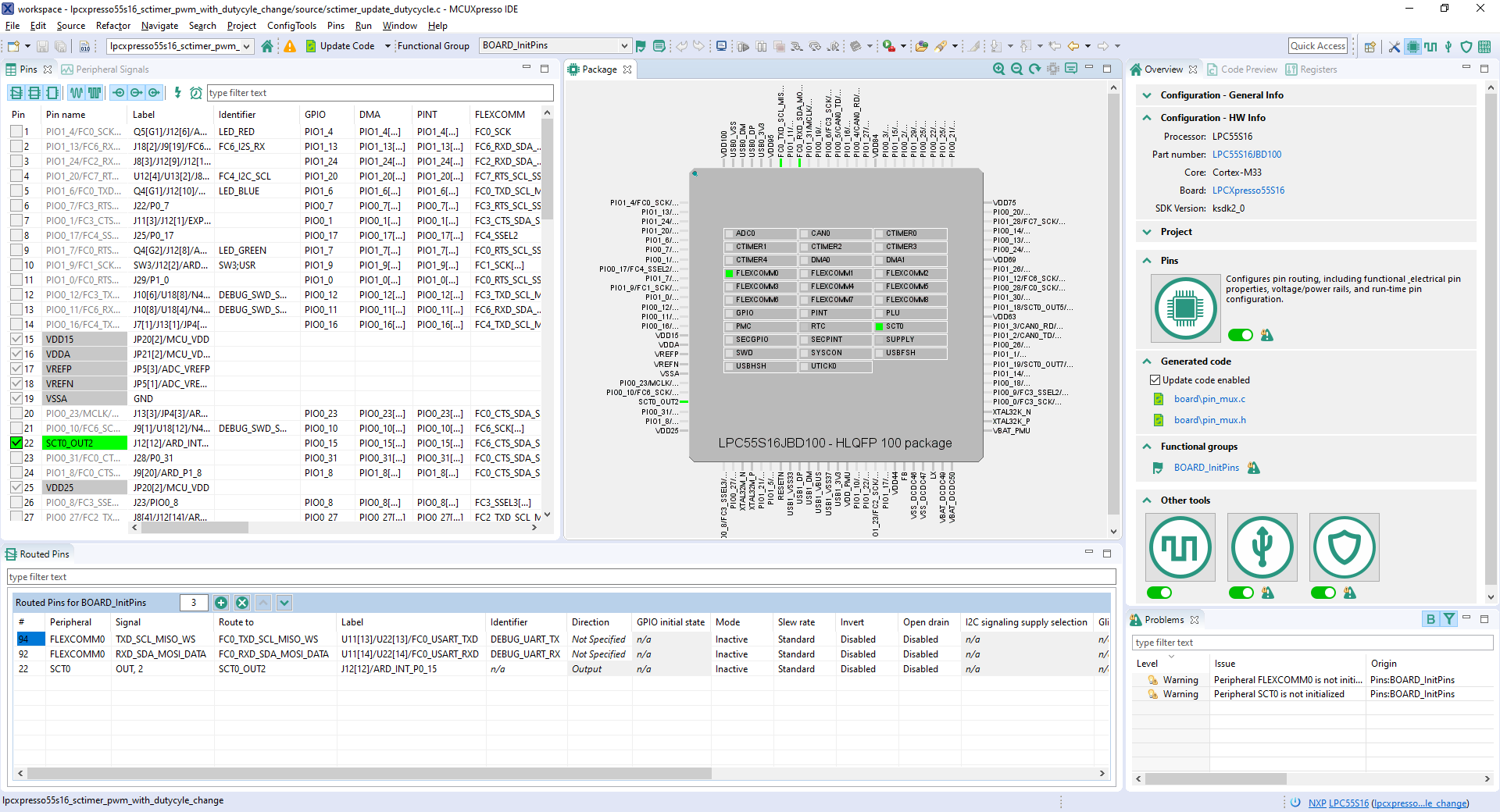

   2. The pins tool should now display the pin configuration for the pwm project.

2. To open pin tools in General Purpose Microcontrollers Config tools:
   1. Open the General Purpose Microcontrollers Config Tool.

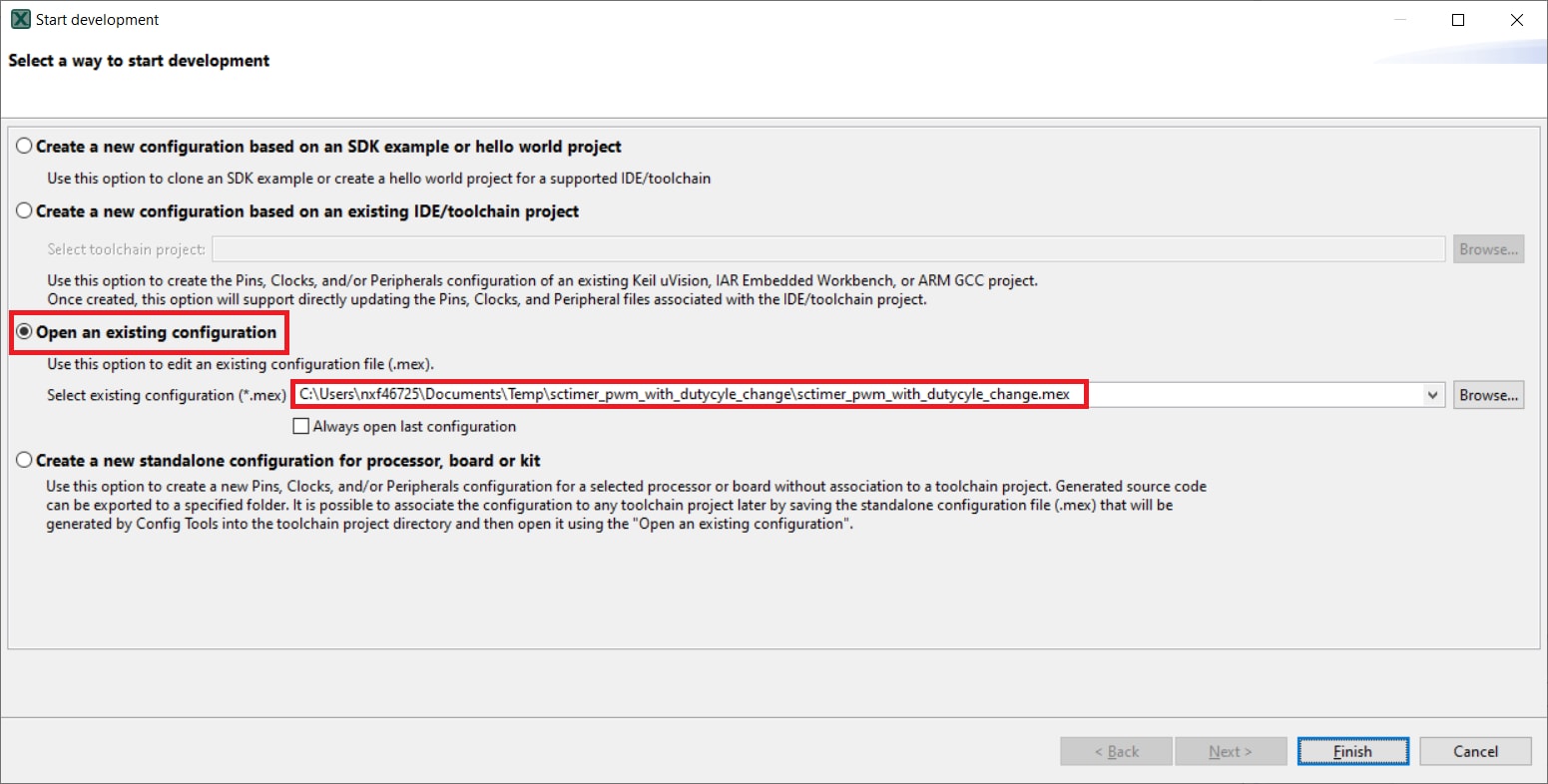

   2. In the wizard that comes up, select the “Open existing configuration” radio button, then select the project that you had clone and click on Next.

   3. Open the pins tool by selecting Tools->Pins from the toolbar.

   4. The pins tool should now display the pin configuration for the pwm project.

3. Use the pins tools to modify the SCT routed pin:
   1. 1. We’ll use General Purpose Microcontrollers IDE for the rest of the instructions, but the same steps can be done in General Purpose Microcontrollers Config tools for third party IDEs. In the Pins view deselect the “Show not routed pins” checkbox to see only the routed pins, you also going to see the pins that are routed by default. Routed pins have a check in a green box next to the pin name. The functions selected for each routed pin are highlighted in green.

   2. In the current configuration, PIO0_15 is routed as a SCT0_OUT2. Let’s disable, PIO0_15, and change the mux setting of PIO1_4 to use its SCTimer functionality to drive the red LED.
   3. Disable, PIO0_15 as a SCTIMER by clicking the “SCT0_OUT2” field under the SCT column. The pin will then be disabled (pin will no longer have check in box) and thus disappear from the list.

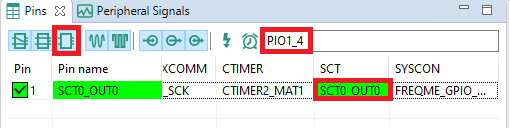

   4. Now, route PIO1_4 as a SCTIMER. First, select the “Show not routed pins” so that all the pins are displayed again. Then, search PIO1_4 in the pins view. Finally, click the box under the SCTIMER column “SCT0_OUT0”. The box will highlight in green, and a check will appear next to the pin.

   5. Now it’s time to implement these changes into the project by exporting the new updated pin_mux.c and pin_mux.h files that are generated by the Pins tool. Click on Update Project in the menu bar.

   6. The screen that pops up will show the files that are changing and you can click on “diff” to see the difference between the current file and the new file generated by the Pins tool. Click on “OK” to overwrite the new files into your project.

      Note: The clocks files may also be tagged as being updated since the header has been changed.

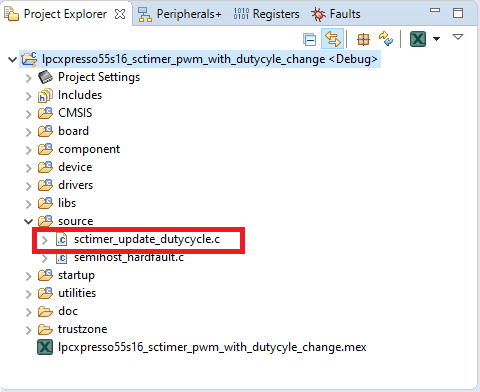

   7. Now inside the IDE, open the sctimer_update_dutycycle.c file.

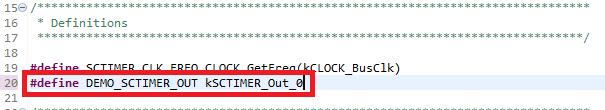

   8. 8. Note that when we change the sctimer routed pin in the tool the PIO0_15 use SCT_OUT4 while the PIO1_4 (red led) use SCT_OUT0, we are going to change the “DEMO_SCTIMER_OUT” macro from “kSCTIMER_Out_2” to “kSCTIMER_Out_0”.

   9. Build and download the project as done in the previous section.
   10. Run the application. You should now see the red LED acts as a "breathing”
   11. Terminate the debug session.

*Note: Previously, you had to clone an SDK project like in the past step.

1. To open clock tools in General Purpose Microcontrollers IDE:

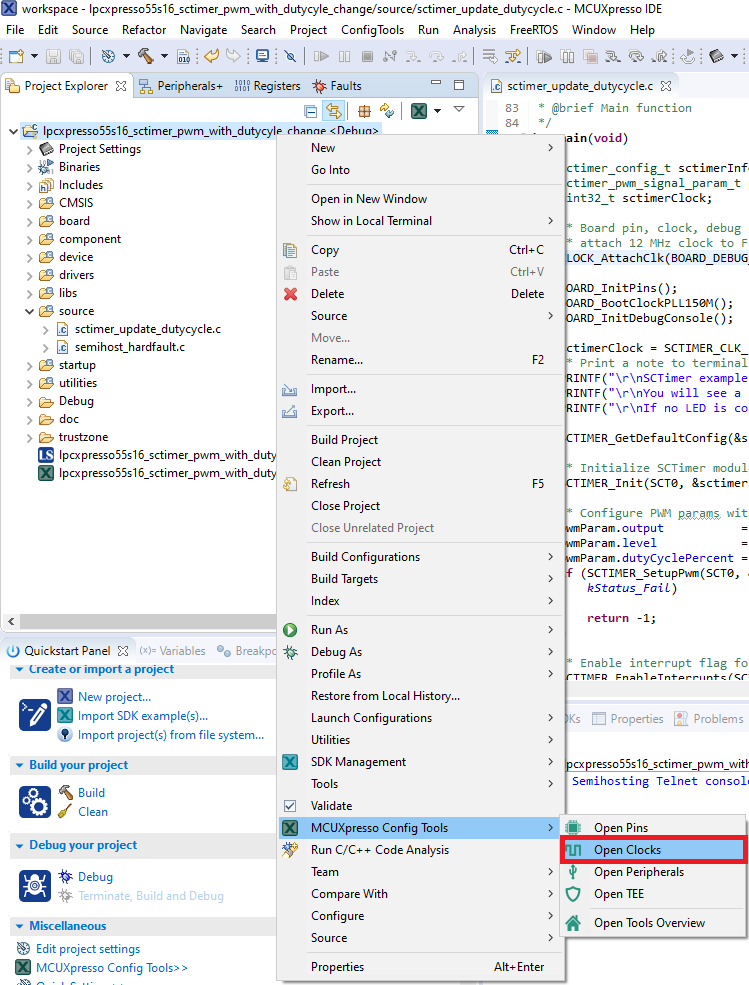

   1. Open the Clock tool by right clicking on the “lpcxpresso55s16_sctimer_pwm_with_dutycycle_change” project and selecting “General Purpose Microcontrollers Config Tools” and then “Open Clocks”.

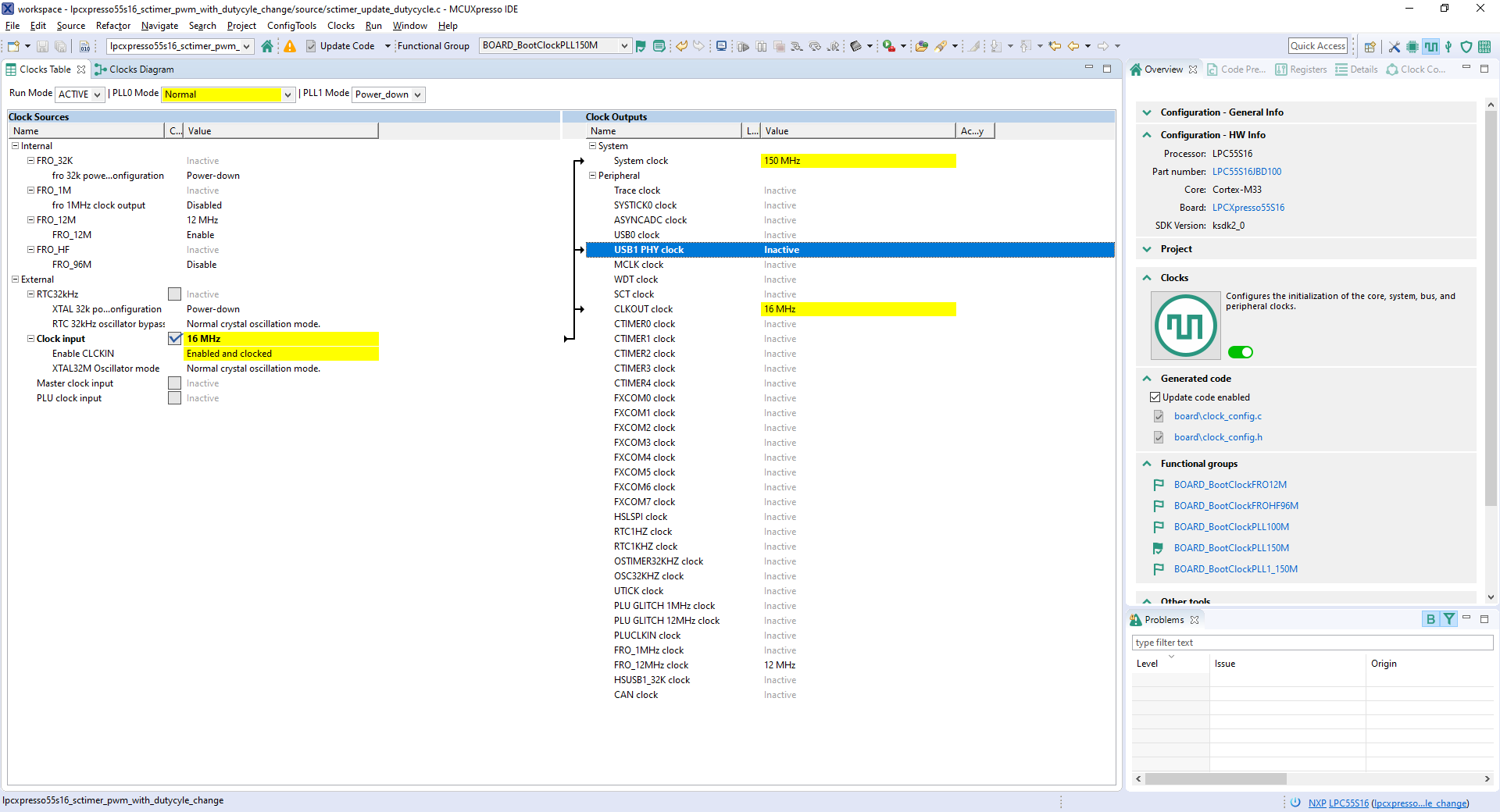

   2. The clock tool should now display the pin configuration for the project.

2. To open clock tools in General Purpose Microcontrollers Config tools:
   1. Open the General Purpose Microcontrollers Config Tool.
   2. In the wizard that comes up, select the “Open existing configuration” radio button, then select the project that you had clone and click on Next.

   3. Open the clocks tool by selecting Tools->clocks from the toolbar.

   4. The pins tool should now display the pin configuration for the pwm project.

3. Use the clock tools to modify the system clock:
   1. We’ll use General Purpose Microcontrollers IDE for the rest of the instructions, but the same steps can be done in General Purpose Microcontrollers Config tools for third party IDEs. Switch to the Clocks Diagram view by clicking the tab in the upper left corner.

   2. Make sure that you are in the functional group called “BOARD_BootClockPLL150M”.

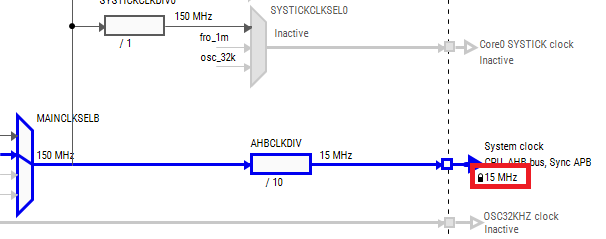

   3. Change the core clock frequency by clicking in the Systems Clock field and typing “15”. You’ll see all the other clock values automatically change as well to adjust to this slower speed. It will look like this when done:

   4. Now it’s time to implement these changes into the project by exporting the new updated clock_mux.c and clock_mux.h files that are generated by the Pins tool. Click on Update Project in the menu bar.

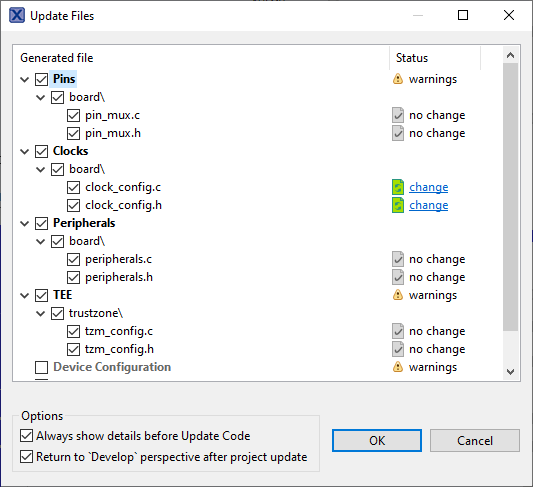

   5. The screen that pops up will show the files that are changing, and you can click on “diff” to see the difference between the current file and the new file generated by the Clock tool. Click on “OK” to overwrite the new files into your project.

      Note: The Pins files may also be tagged as being updated since the header has been changed.


   6. Build and download the project as done in the previous section.
   7. Run the application. You should now see the red LED acts as “breathing” a much slower rate.
   8. Terminate the debug session.
