S32S Microcontrollers for Safe Vehicle Dynamics​

S32S24
  • Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

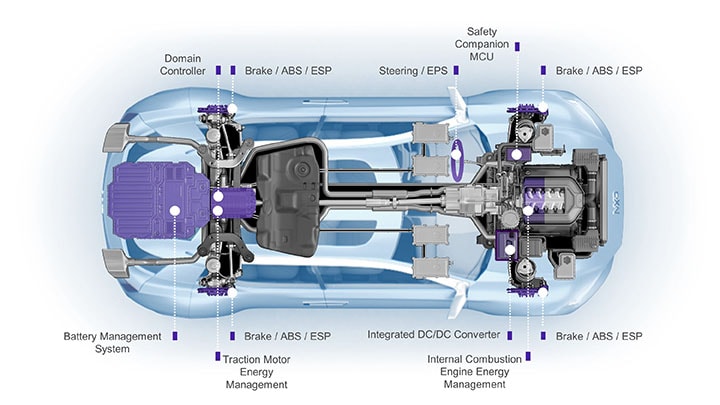

The S32S24 is an Arm®-R52 based microcontroller for automotive vehicle dynamics, domain control and safety co-processor applications.

It offers support for the highest levels of automotive safety and with more than 7x the performance of previous generation devices, provides the performance headroom to manage the transition to advanced HEV/EV and autonomous vehicles applications.

Product Details

Select a section:

Block Diagram

S32S Processor

S32S Processor
Get diagram PDF

Features

  • 4 x Arm-R52 cores in lockstep (8 cores total), operating at 800 MHz
  • Large integrated flash memory (up to 64 Mbytes)
  • On-the-Fly, Over-the-Air update capability with zero processor downtime
  • Advanced safety functionality and fault recovery to support ASIL-D applications
  • Hardware Security Engine supporting public and private key encryption
  • AEC-Q100 Grade 1 device with support up to -40 to 150º C (junction)
