TEA1716 90W / 19.5V resonant LLC + PFC combo controller.
- Demo board
- Quick start guide

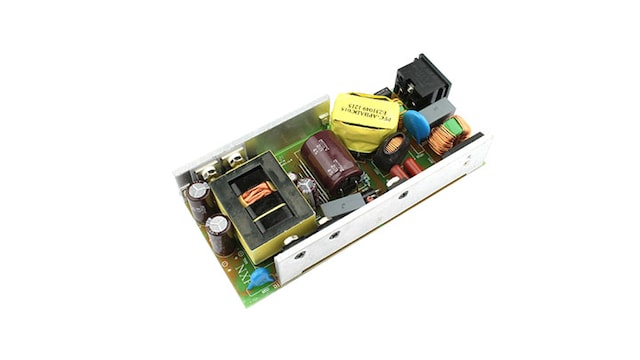

TEA1716 90 W / 19.5 V Resonant LLC + PFC Combo Controller Demo Board
This resonant LLC board demonstrates a EuPlot6 compliant, compact slim line notebook adapter. The 90W notebook adapter is using the TEA1716 resonant combo controller and achieves an efficiency up to 93%. The typical output voltage is 19.5V.
Product Details
Supported Devices
Power Management
AC-DC Controllers with Integrated PFC
- TEA1716T: HV Start-Up Resonant LLC+PFC Combo Controller with Integrated Burst Mode, EuP Lot 6 Compliant
Features
Key Features
- Energy Star, EPS2.0 and EuPlot 6 compliant
Board
- ICs used: TEA1716T Resonant LLC+PFC combo controller
- Universal mains operation: 85 - 264Vac / 47 - 63 Hz
- Output: 90 W / 19.5 V
- Average efficiency: > 93% @ high mains
- Low no-load power consumption in standby mode < 300 mW
Power Management
- Under Voltage protection for mains (Brownout), boost, IC supply, and output voltage
- Overcurrent regulation and protection for both controllers
- Accurate overvoltage protection for boost voltage
- Adaptive nonoverlap time
- Capacitive mode protection for HBC controller
Buy Options
Documentation
Quick reference to our documentation types.
5 documents
-
User Guide
TEA1716DB1255 90 W notebook adapter demo boardGetting Started
-
Data Sheet
Resonant power supply control IC with PFC
-
Data Sheet
GreenChip synchronous rectifier controller
-
Application Note
TEA19361T GreenChip SMPS control IC
-
Application Note
TEA1716 resonant power supply control IC with PFC
