Digital Configurable LLC and Multimode PFC Controller

TEA2017

Roll over image to zoom in

The TEA2017AAT is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It includes both the LLC controller and PFC controller functionality. The PFC can be configured to operate in DCM/QR, CCM fixed frequency, or multimode which supports all operation modes to optimize the PFC efficiency. The TEA2017ABT version includes a PFC that supports DCM/QR operation only, while the LLC stage is the same as the TEA2017AAT.

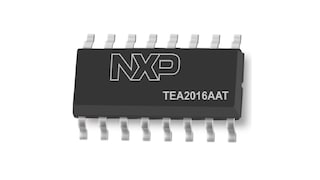

All TEA2017xxT versions enable building a complete resonant power supply which is easy to design and has a very low component count. The TEA2017xxT comes in a low profile and narrow body-width SO16 package.

The TEA2017xxT digital architecture is based on a high-speed configurable hardware state machine ensuring very reliable real-time performance. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements. The configurations can be fully secured to prevent unauthorized copying of the proprietary TEA2017xxT configuration content.

In contrast to traditional resonant topologies, the TEA2017xxT shows a very high efficiency at low loads due to the LLC low-power mode. This mode operates in the power region between continuous switching (also called high-power mode) and burst mode.

Block Diagram

Digital Configurable LLC and Multimode PFC Controller

TEA2017AAT Block Diagram
Get diagram PDF

Features

Key Features

  • Complete functionality of LLC and PFC controller in single small-size SO16 package
  • Integrated high-voltage start-up
  • Integrated drivers and high-voltage level shifter (LS)
  • High-side driver directly supplied from the low-side driver output
  • Accurate boost voltage regulation
  • PFC can be configured to operate in:
    • DCM/QR (TEA2017ABT)
    • DCM/QR/CCM (also called mixed mode operation) (TEA2017AAT only)
    • CCM fixed frequency (TEA2017AAT only)
  • Integrated X-capacitor discharge without additional external components
  • Power good function
  • PFC jitter for optimized EMI performance
  • Excellent power factor (PF) and total harmonic distortion (THD), as the PFC current compensates for the input filter current
  • Several parameters can easily be configured during evaluation with use of the graphical user interface (GUI), like:
    • Operating frequencies to be outside the audible area at all operating modes
    • Soft start and soft stop in burst mode, reducing the audible noise
    • Accurate transition levels between operation modes (high-power mode/low-power mode/burst mode)
    • Enabling/disabling the lower power mode

Green Features

  • Valley/zero voltage switching for minimum switching losses
  • Extremely high efficiency from low load to high load
  • Compliant with latest energy-saving standards and directives (Energy Star, EuP)
  • Excellent no-load input power (< 75 mW for TEA2017xxT/TEA2095T combination)

Protection Features

  • Independently configurable levels and timers
  • All protections can independently be set to latched, safe restart, or latched after several attempts to restart
  • Supply undervoltage protection (UVP)
  • Overpower protection (OPP)
  • Internal and external overtemperature protection (OTP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Overcurrent protection (OCP)
  • Inrush current protection (ICP)
  • Brownin/brownout protection
  • Disable input

NXP GreenChip

  • This product is part of the NXP GreenChip portfolio, this program optimizes for energy efficiency in mobile and computing applications, specializing in high-power density, safety and reliability.

Part numbers include: TEA2017AAT, TEA2017ABT.

Improvements of TEA2017AAT/3 vs. TEA2017AAT/2

Product Process Used for the High Voltage Die Features Supporting Information
TEA2017AAT/2 EZHV (Silicon On Insulator) Reference Start-up Behavior Comparison
TEA2017AAT/3 ABCD3HV+ (Silicon On Insulator) Faster Start-up Behavior to comply with the latest Intel ATX 3 specification (§4.3 in Intel ATX Version 3.0 spec → T1: Power-on time)
