LLC Resonant Converter Design Tool

LLC-RESONANT-CONVERTER-DST

Roll over image to zoom in

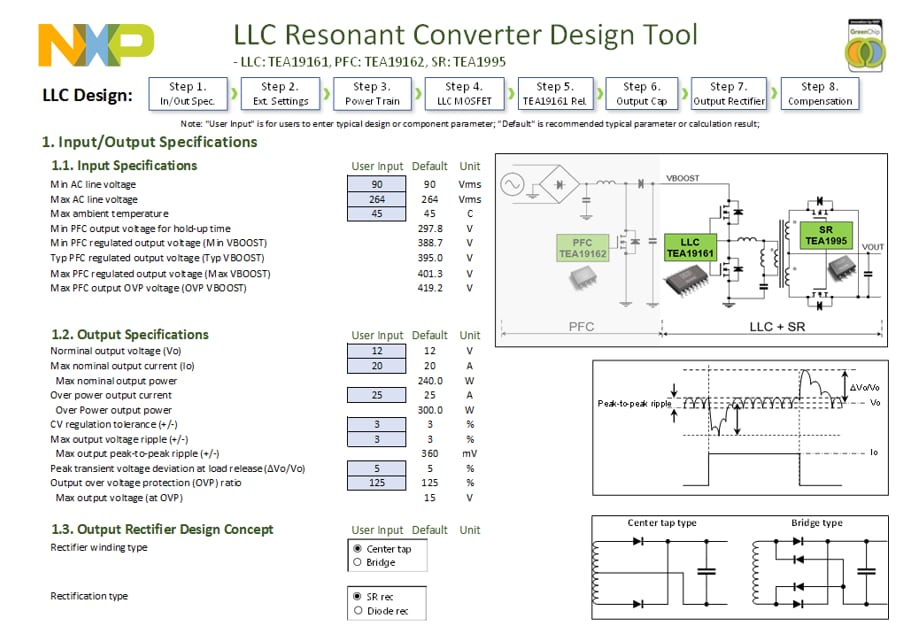

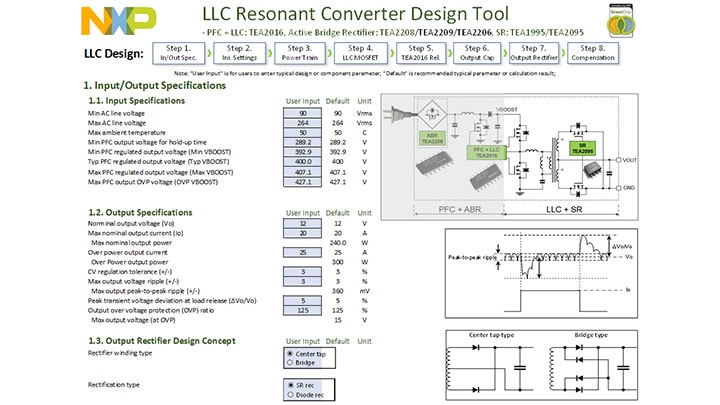

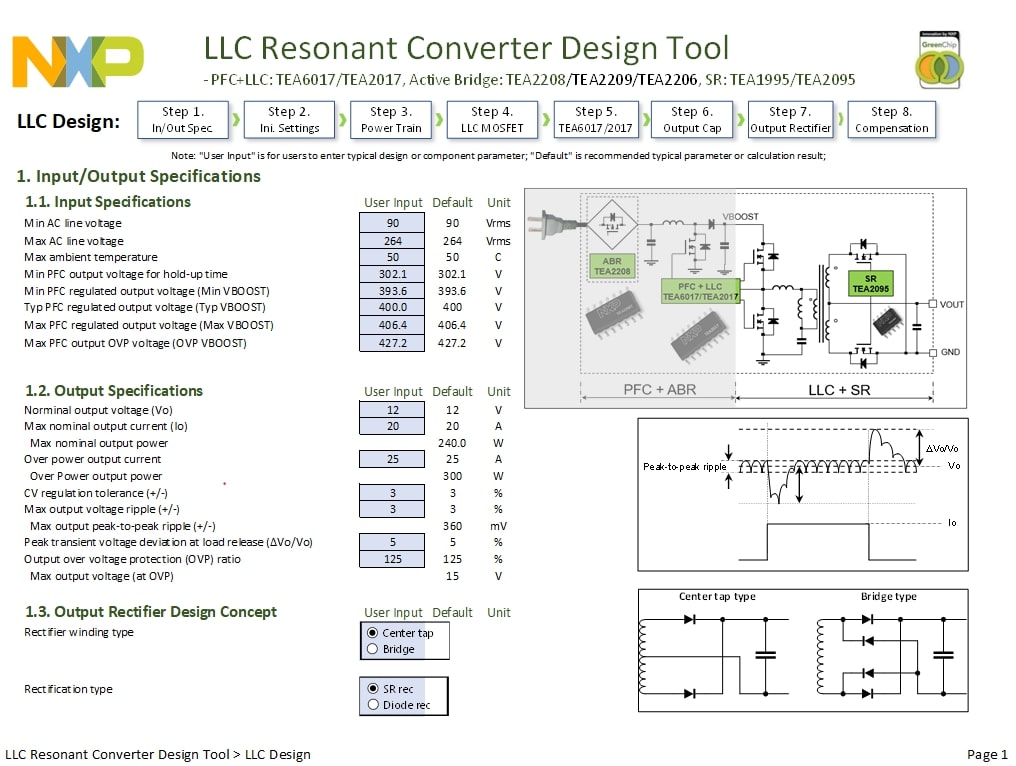

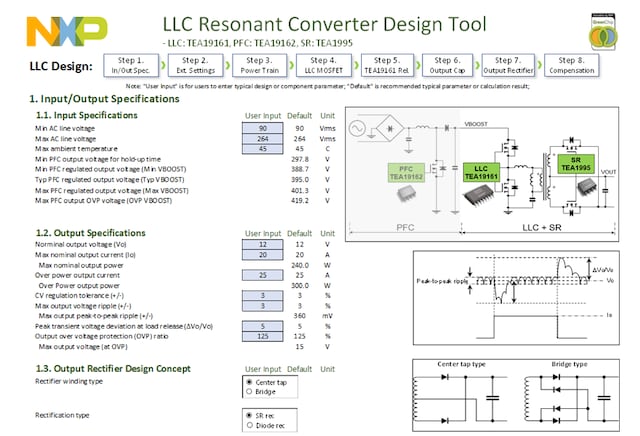

Completing and optimizing a near production-ready resonant converter design can be tricky, tedious, and even challenging. Main focus of the design tool is to address common issues/concerns proactively, such as worst corner case stress of each device, device tolerance/distribution effect to performance, and design optimization.

As a result, we can cut design iteration, trial-and-error effort on bench, and development time. The design tool is written in Excel and is downloadable.

Features

Key Features

  • Detailed step-by-step sequential flow helps engineers to easily follow and complete designs
  • Proactively assess worst and corner case stress and thermal of devices
  • Proactively assess device tolerance/distribution effect to system performance
  • Fine knobs and guidelines to help engineers fine-tune design towards optimization
  • Complete a paper design with schematic, BOM and magnetic build sheets for the whole system
  • Combining FHA-based LLC design with a downloadable Simplis simulation model effectively helps to save iteration cycles

Supported Devices

  • TEA6017AT: Digital Configurable LLC and Multimode PFC Controller
  • TEA2017: Digital Configurable LLC and Multimode PFC Controller
  • TEA2016: Digital LLC+PFC Combo Controller for Resonant Power Supply
  • TEA19161T: Resonant Power Supply Control IC
  • TEA2226: TEA2226AT Digital Configurable LLC Controller
  • TEA2376: TEA2376xT, Digital Configurable Interleaved PFC Controllers
