TEA2017 PFC + LLC Resonant Power Supply Development Kit

TEA2017DK1003

Roll over image to zoom in

The TEA2017DK1003 demo kit combines the RDK01DB1563, TEA2017DK1002 and TEA2017DB1580 demo kits in a single box. The TEA2017AAT is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It includes both the LLC controller and PFC controller functionality. The PFC can be configured to operate in DCM/QR, CCM fixed frequency or DCM/QR/CCM (multimode) which supports all operation modes to optimize the PFC efficiency. The TEA2017AAT enables building a complete resonant power supply which is easy to design and has a very low component count. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2017: Digital Configurable LLC and Multimode PFC Controller
  • TEA6017AT: Digital Configurable LLC and Multimode PFC Controller

Secondary Side Controllers

  • TEA2095: GreenChip Dual LLC SR Switching Controller

Features

Key Features

  • Output 12 V/20 A
  • Input voltage range 90 V-264 V
  • DCM/QR/CCM fixed frequency mode PFC controller
  • Excellent PF and THD performance
  • Integrated X-capacitor discharge without additional external components
  • Power good function
  • Digital configurable
  • Synchronous rectifier at secondary side

Green Features

  • No-load power < 100 mW
  • High efficiency from low load to high load

Protection Features

  • Overpower protection (OPP)
  • Brown-in/brown-out protection
  • Overcurrent protection (OCP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Inrush current protection (ICP)
  • Supply undervoltage protection (UVP)
  • Internal and external overtemperature protection (OTP)
  • Independently configurable levels and timers
  • Many protections can independently be set to be latched, safe restart or latched after several attempts to restart

Buy Options

TEA2017DK1003-Image

Click to expand

  • TEA2017DK1003
    Active

  • TEA2017 PFC + LLC Resonant Power Supply Development Kit.

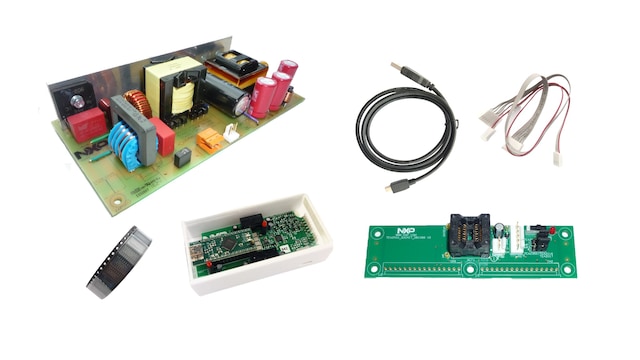

  • Kit contains:

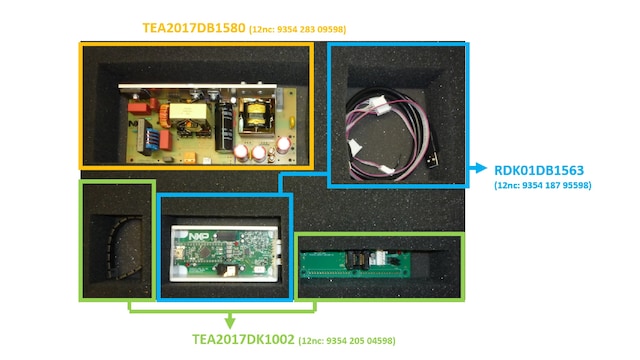

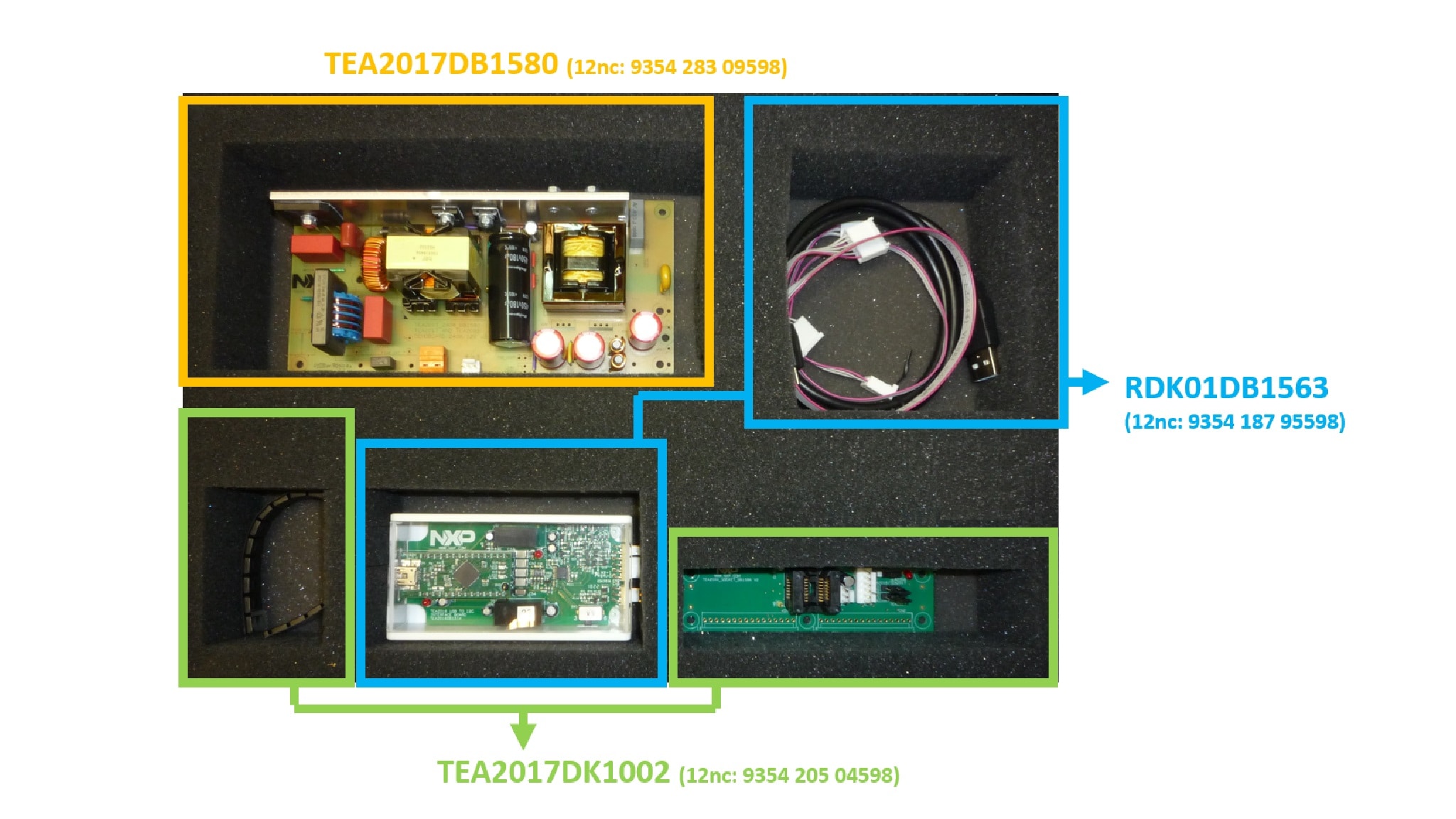

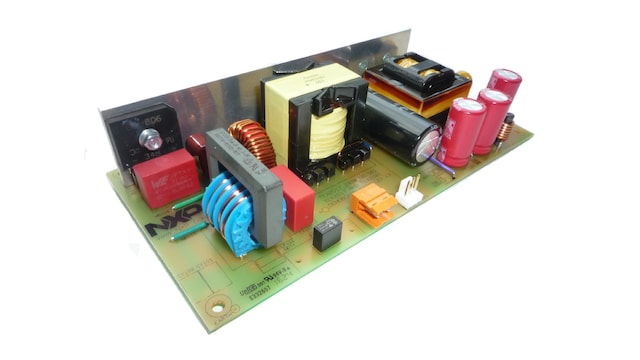

    • TEA2017DB1580 240 W 12 V 20 A demo board
    • USB-I²C interface board

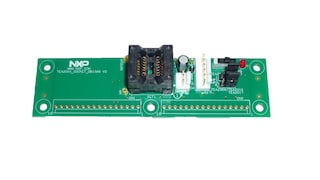

    • TEA20xx_socket_DB1586 programming board
    • TEA2017AATdev IC samples
    • USB, 3-pin and 6-pin connection cables
  • $499.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 6
    • Shipping: Normally ships 1-2 business days
ADD TO CART
