TEA2017AAT Development Programming Board and Samples

TEA2017DK1002 Active

Roll over image to zoom in

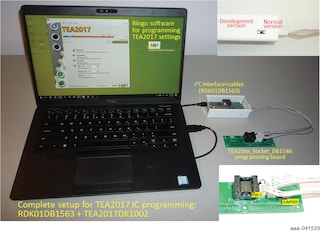

The TEA2017AAT is a digital configurable LLC and PFC combo controller for high efficiency resonant power supplies. It includes both the LLC controller and PFC controller functionality. The PFC can be configured to operate in DCM/QR, CCM fixed frequency or multimode which supports all operation modes to optimize the PFC efficiency. The TEA2017AAT enables building a complete resonant power supply which is easy to design and has a very low component count. TEA2017DK1002 development kit includes a socket board for programming development samples in combination with the RDK01DB1563 I²C interface

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2017: Digital Configurable LLC and Multimode PFC Controller

Features

System Features

  • PFC + LLC controller in SO16 package
  • Integrated drivers and level shifter
  • High efficiency from low load to high load
  • DCM/QR/CCM mode PFC controller
  • Excellent PF and THD performance
  • Digital configurable
  • Integrated X-capacitor discharge
  • PFC frequency jitter

Buy Options

TEA2017DK1002-Image

Click to expand

  • TEA2017DK1002
    Active

  • TEA2017AAT Development Programming Board and Samples.

  • Kit Contains

    TEA2017DK1002 programming kit

    • Programming board incl. socket

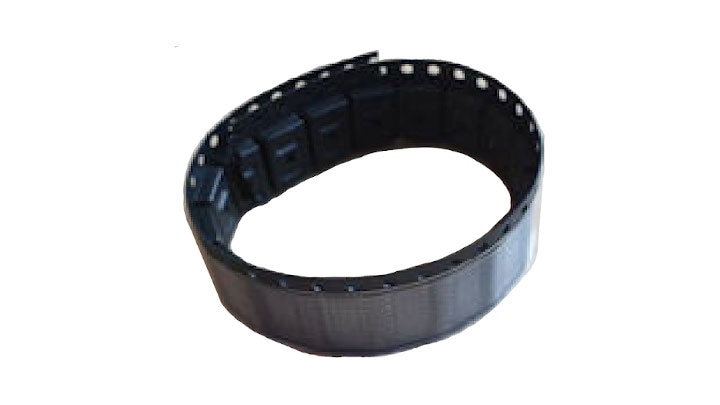

    • 20 development samples
  • $50.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
