TEA6017AT Development Programming Board and Samples

TEA6017DK1005

Roll over image to zoom in

The TEA6017AT is the industrial market equivalent of the TEA2017AAT with improved driver performance, improved ESD performance and enhanced reliability.

Like the TEA2017AAT, the TEA6017AT is a digital configurable LLC and PFC combo controller for high efficiency resonant power supplies. It includes both the LLC controller and PFC controller functionality. The PFC can be configured to operate in DCM/QR, CCM fixed frequency or multimode which supports all operation modes to optimize the PFC efficiency.

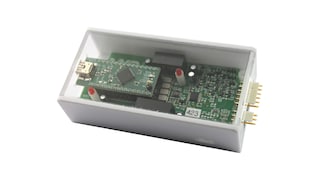

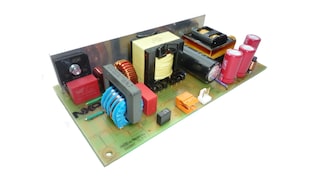

The TEA6017AT enables building a complete resonant power supply which is easy to design and has a very low component count. TEA6017DK1005 development kit includes a socket board for programming development samples in combination with the RDK01DB1563 I²C interface.

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA6017AT: Digital Configurable LLC and Multimode PFC Controller

Features

Key Features

  • PFC + LLC controller in SO16 package
  • Integrated drivers and level shifter
  • High efficiency from low load to high load
  • DCM/QR/CCM mode PFC controller
  • Excellent PF and THD performance
  • Digital configurable
  • Integrated X-capacitor discharge
  • PFC frequency jitter
  • Industrial profile

Buy Options

TEA6017DK1005-Image

Click to expand

  • TEA6017DK1005
    Active

  • TEA6017AT Development Programming Board and Samples.

  • Kit contains:

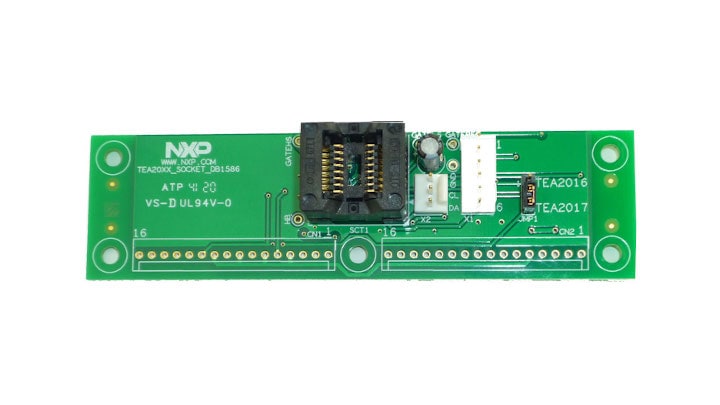

    • TEA20xx_SOCKET_DB1586 programming board

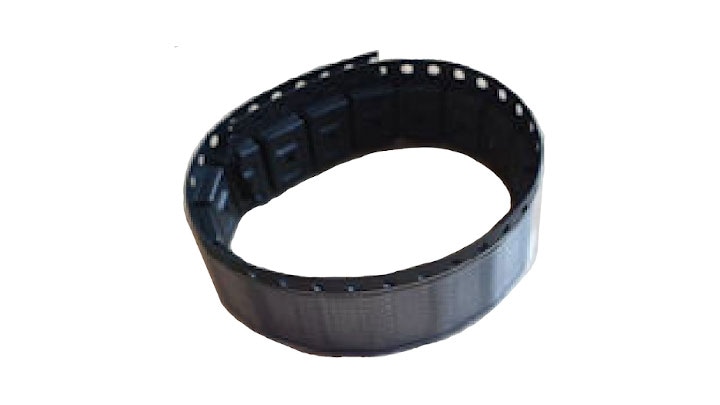

    • 20 IC’s TEA6017ATdev
  • $50.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
