NTAG® 5 Switch: NFC Forum-Compliant PWM GPIO Bridge for Lighting and Gaming

NTAG5-SWITCH

NXP’s NTAG 5 switch lets designers eliminate the need of an MCU in various gaming and lighting applications, as well as in other cost-sensitive designs, for added functionality, connectivity, and efficiency at a lower cost. Operating at 13.56 MHz, it is an NFC Forum-compliant contactless tag.

It offers Read Range Duality with two-way communication links with NFC-enabled device at close range, and by powerful industrial reader over a longer range, which makes it possible to be calibrated and parameterized automatically while in the factory. Easy configuration supports a range of control functions, and the onboard originality check lets the users verify the end-product’s authenticity.

Commitment to Longevity

NTP52101G0J is ready to support your development today, tomorrow and beyond through its longevity program. The Product Longevity program ensures a stable supply of products for your embedded designs

Learn more

Product Details

Select a section:

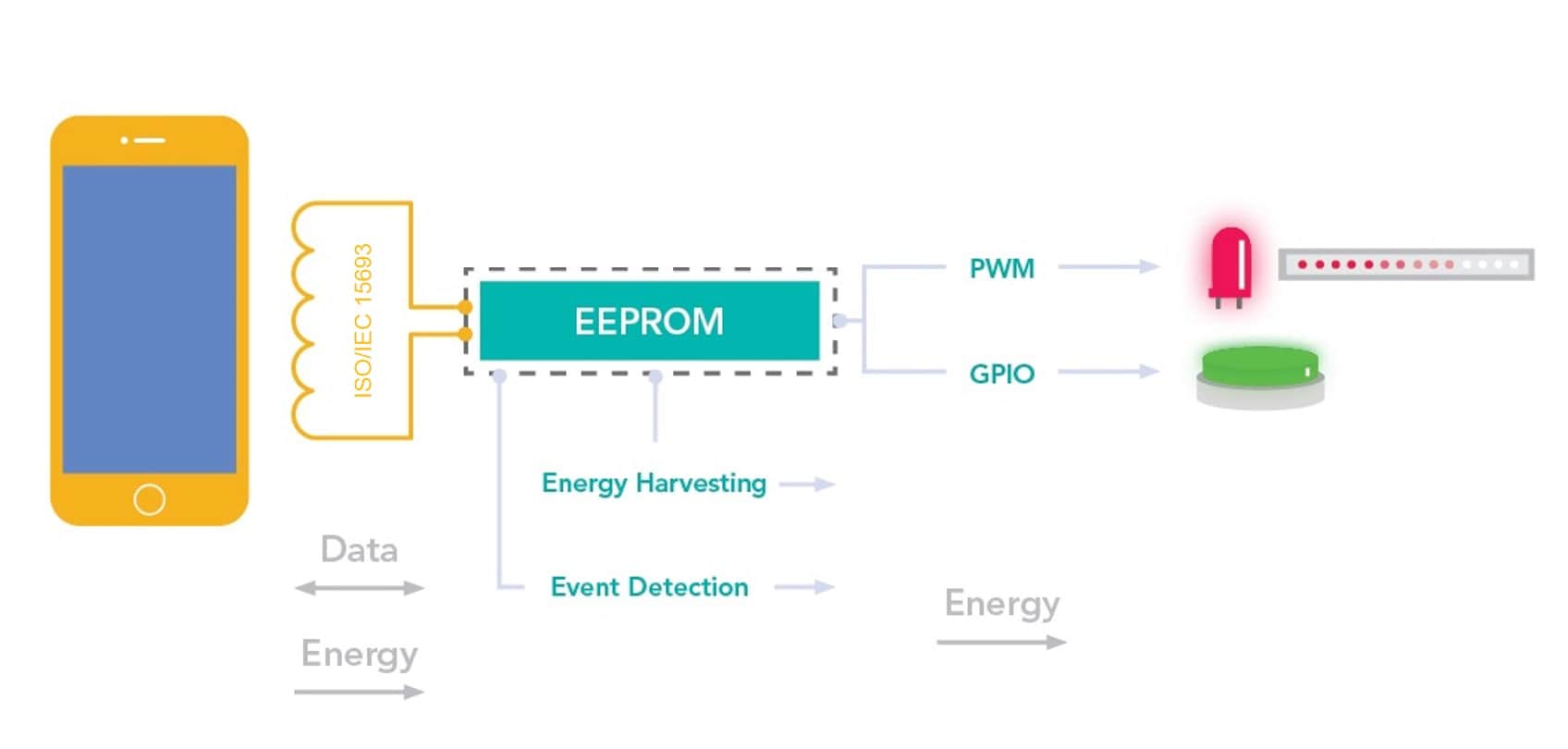

Block Diagram

NTAG 5 switch block diagram

NTAG 5 switch block diagram
Get diagram PDF

Features

Key Features

  • GPIO and PWM
  • Energy harvesting with configurable output up to 30 mW

NFC Interface

  • Fully NFC Forum Type 5 Tag compliant
  • 8-byte Unique Identifier
  • 32-byte reprogrammable originality signature

Host Interface

  • 2 GPIO’s
  • 2 Pulse Width Modulation output channel
  • Event Detection pin

Scalable Security

  • 32/64-bit password protection
  • Read-only locking
  • 3 configurable user memory areas
  • ECC-based reprogrammable originality signature

Memory

  • 512 bytes user memory

Comparison Table

Feature NTAG 21xF NTAG 5 switch NTAG I2C plus NTAG 5 link NTAG 5 boost
NFC Forum type tag 2 5 2 5 5
Max. interface speed - NFC/I2C 106 kbps/- 53 kbps/- 106 kbps/400 kHz 53 kbps/400 kHz 53 kbps/400 kHz
Memory size 144 or 888 bytes 512 bytes 888 or 1912 bytes
64 bytes SRAM		 2048 bytes
256 bytes SRAM		 2048 bytes
256 bytes SRAM
Memory protection
from NFC perspective		 Read only locking and
32-bit PWD		 Read only locking and
32- or 64-bit PWD		 Read only locking and
32-bit PWD		 Read only locking and
32- or 64-bit PWD
AES mutual authentication*		 Read only locking and
32- or 64-bit PWD or
AES mutual auth.
Memory protection
from connected host		 - - Restrict access to NFC
password protected area		 32-bit PWD 32-bit PWD
Memory areas 2 3 2 3 3
Originality Signature fixed re-programmable fixed re-programmable re-programmable
Energy harvesting - regulated up to 30 mW yes
up to 15 mW		 regulated up to 30 mW when used as passive
regulated up to 30 mW
Wired Interface Field Detect Pin PWM, GPIO; Event Detect Pin I2C target; Event Detect Pin PWM; GPIO; I2C target, I2C transparent controller*; Event detection PWM; GPIO; I2C target, I2C transparent controller; Event detection
Typical stand-by and hard-power-down values - 6 µA/0,25 µA - 6 µA/0,25 µA 10 µA/0,25 µA
Active load modulation - - - - yes, when VCC supplied
Temperature range -25°C to +70°C -40°C to +85°C -40°C to +105°C -40°C to +85°C -40°C to +85°C

* Only available for NTP5332
