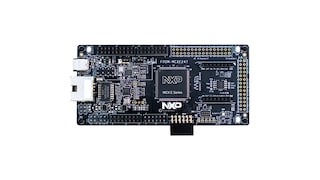

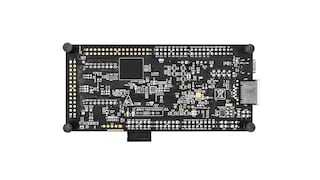

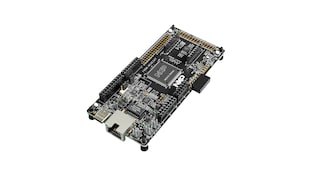

FRDM-MCXE247 are compact and scalable development boards for rapid prototyping of MCX E245/246/247 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Design Files

Software

Product Details

Block Diagram

FRDM Development Board for MCX E245/246/247 MCUs

Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX E Series Microcontrollers

MCX-E24: MCX E24: Reliability and Safety Focused MCU

Features

Microcontrollers

MCX E247 general-purpose 32-bit microcontroller based on Arm Cortex M4F
Up to 112 MHz CPU performance with DSP and FPI support
Up to 2 MB flash, up to 256 kB SRAM

Connectivity

USB Type-C connectors (On-board MCU-Link debugger)
CAN/I3C/SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
10 / 100 Mbit/s (RMII) LAN8741 Ethernet PHY and RJ45

Debug

On-board MCU-Link debugger with CMSIS-DAP
JTAG/SWD connector

Sensor

FXLS8974CFR3 I²C sensor
Magnetic switch NMH1000

Expansion Options

Arduino® Header
FRDM Header
Pmod™ *DNP
mikroBUS™
FlexIO/LCD Header
FlexIO/Camera Header

User Interface

RGB user LED
Plus Reset
ISP
Wake up buttons

Open-source Software Examples

Power Your Design with Application Code Hub

Leverage ready-to-use demo code on GitHub for faster development.

Start building now with ACH

Buy Options

Click to expand

FRDM-MCXE247
Active

FRDM Development Board for MCX E245/246/247 MCUs.

Kit Contains

FRDM-MCXE247
Quick Start Guide
USB Cable Type-C

$30.00 USD

In Stock :17

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
