S32K344MINI-EVB Evaluation Board for Automotive General Purpose

S32K344MINI-EVB new
Active
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

Roll over image to zoom in

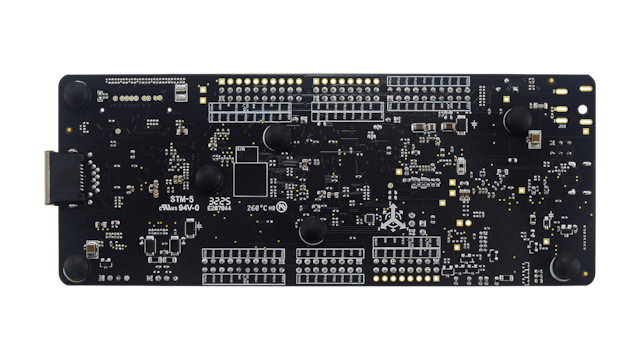

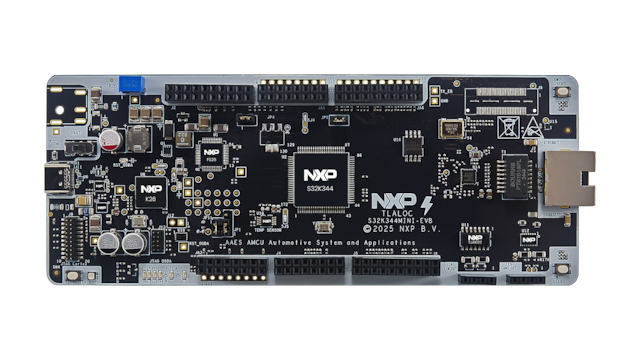

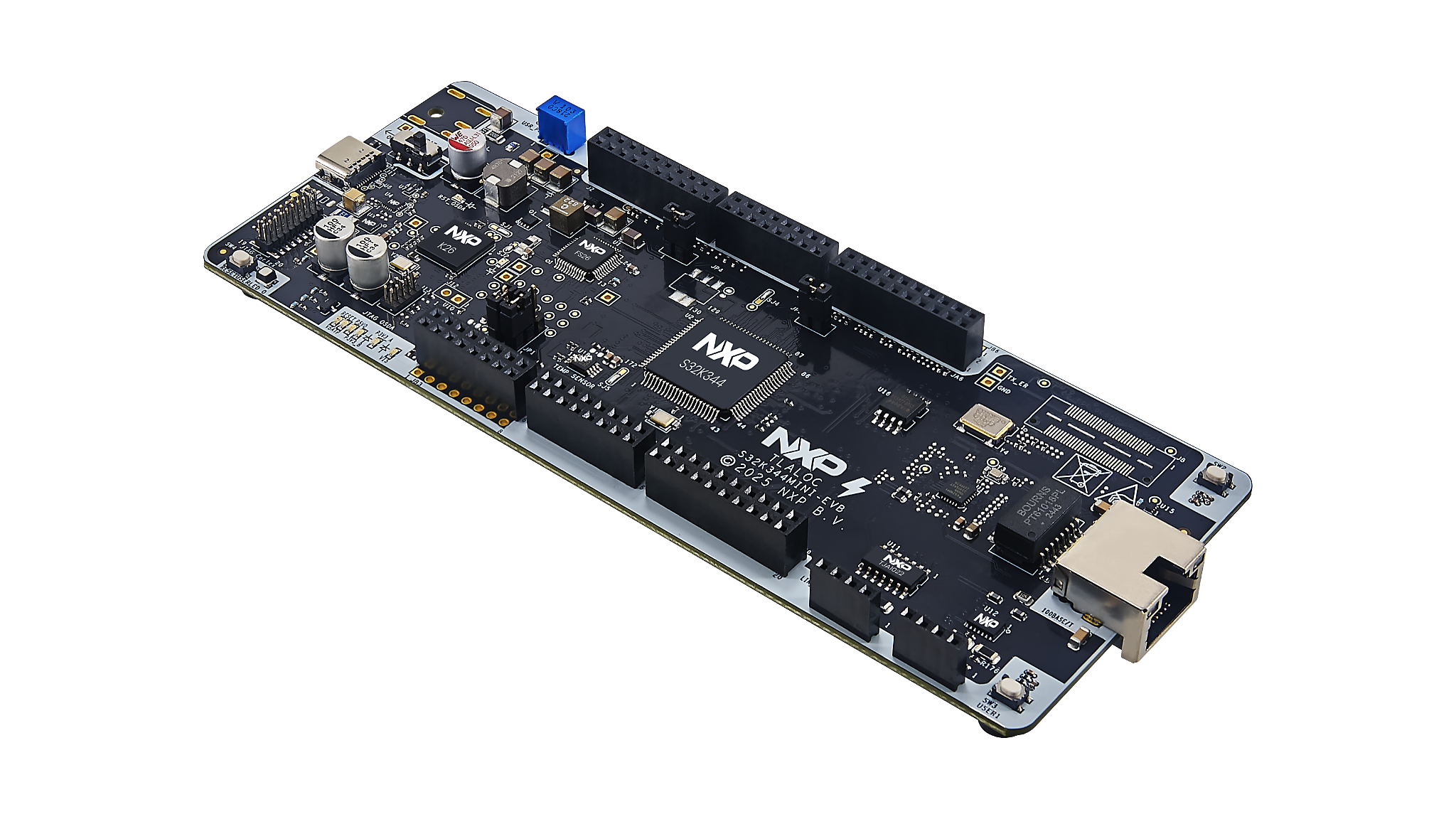

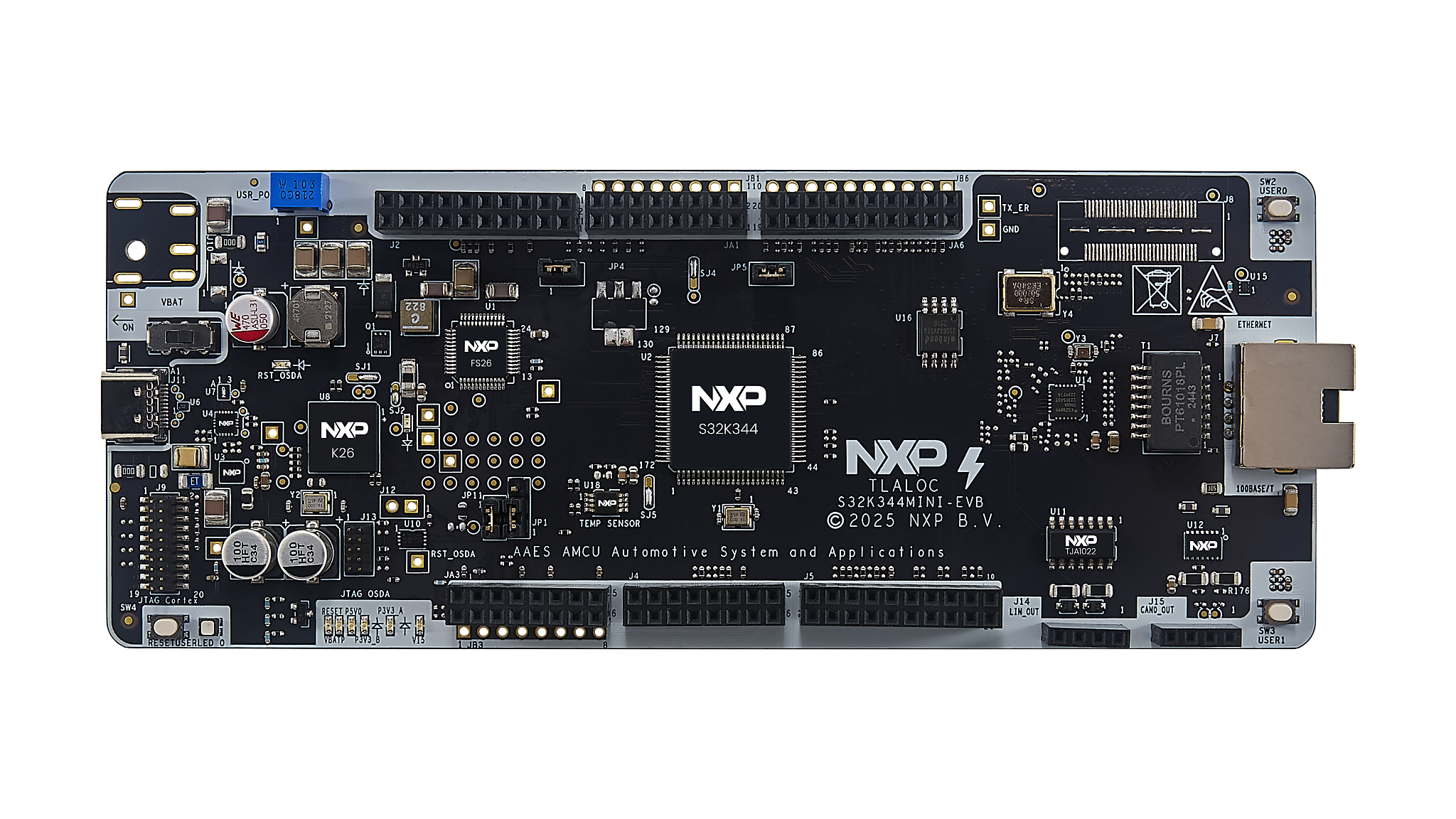

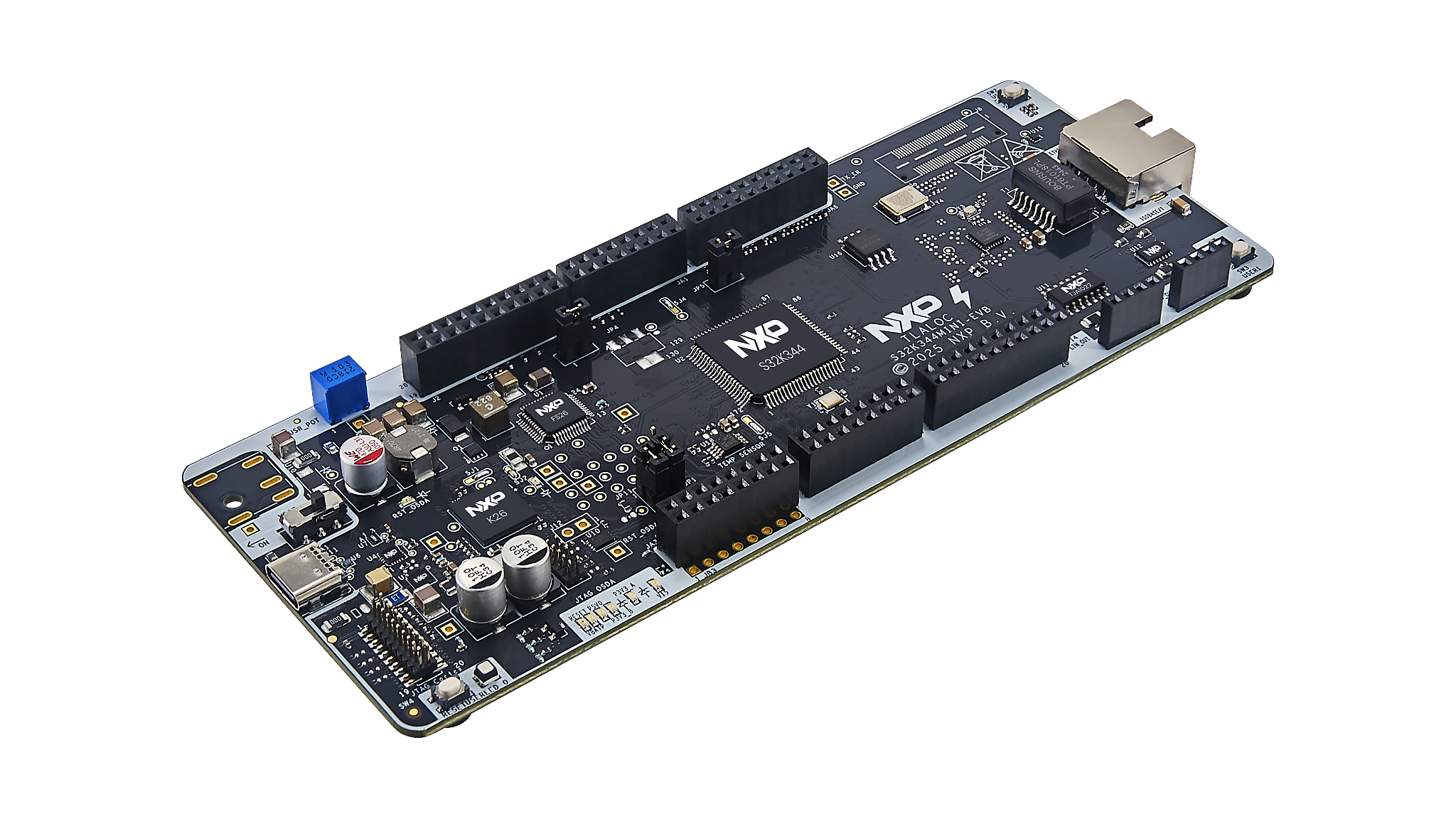

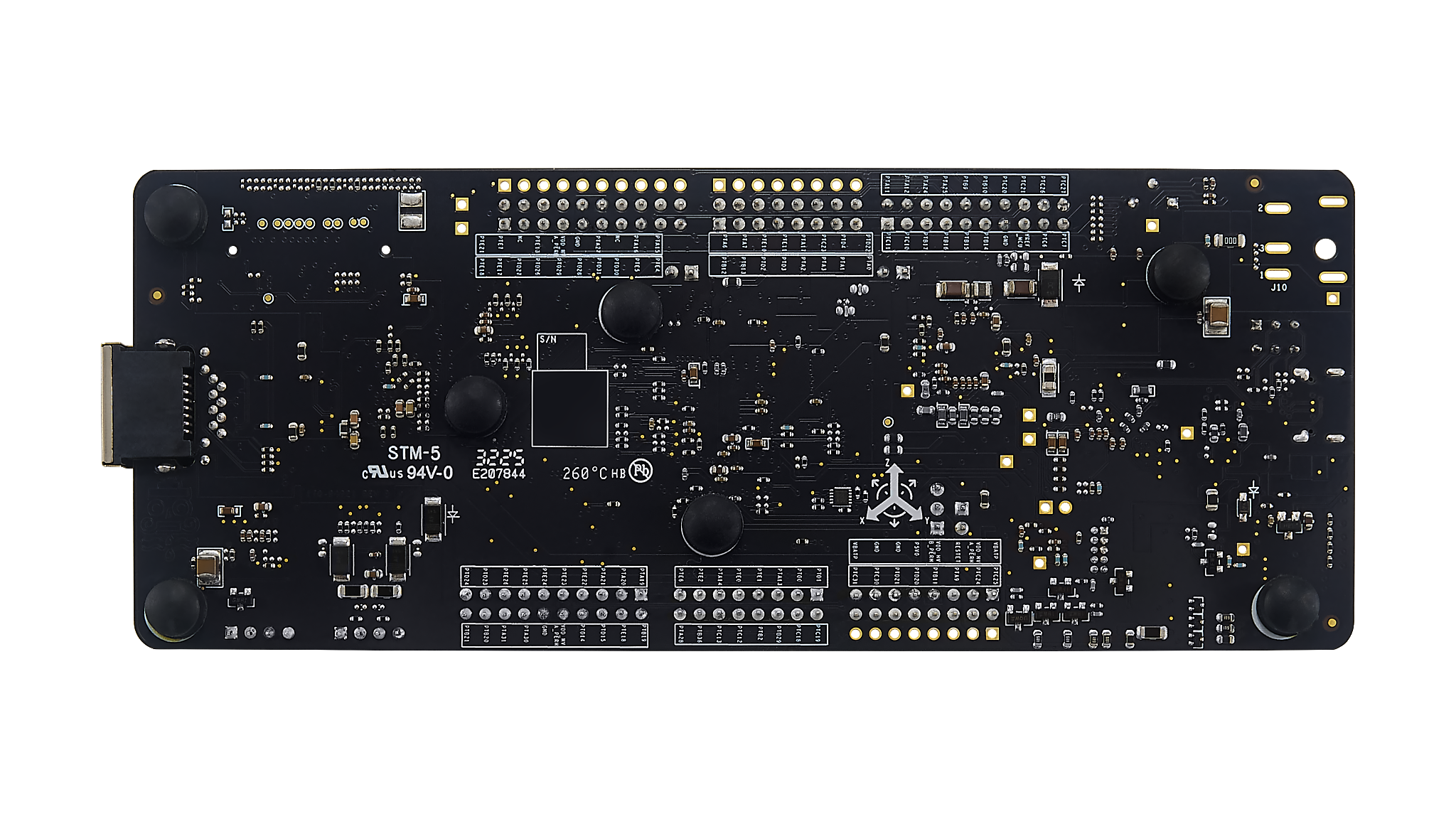

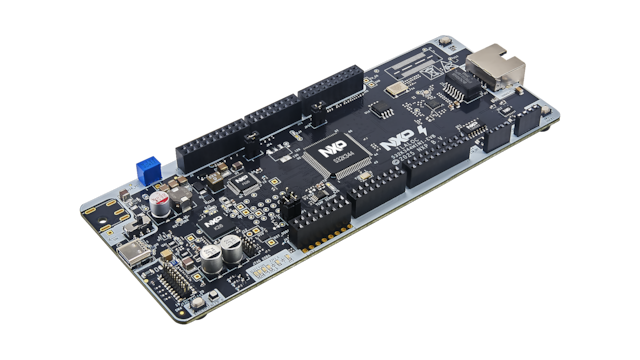

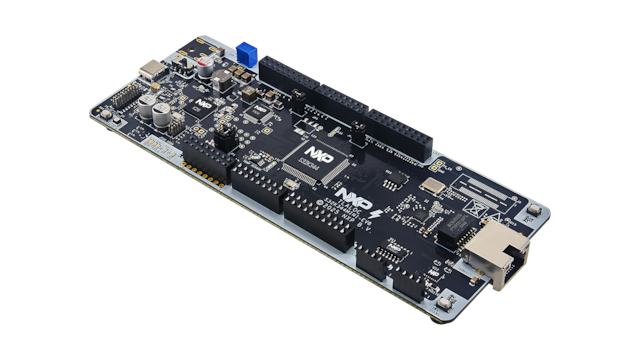

The S32K344MINI-EVB is an evaluation board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M7 S32K3 microcontroller unit (MCU) in a 172 High Density Quad Flat Package (HDQFP) package, the S32K344MINI-EVB offers two cores in lockstep mode, Hardware Security Engine (HSE), advanced connectivity and low-power.

The S32K344MINI-EVB offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive LIN Solutions

  • TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

USB Interfaces

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Data Protection

  • NX20P0407: USB Type-C CC and SBU Protection IC

VBUS Protection

  • NX20P3483UK: USB PD and Type-C High-Voltage Sink/Source Combo Switch with Protection

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1750DP: I3C/I2C-Bus, ±1 °C Accuracy, Digital Temperature Sensor

Accelerometers

  • FXLS8964AF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital Accelerometer

Features

Hardware Features

  • Power supply switch
  • MCU voltage measurement
  • User red-green-blue (RGB) LED
  • 2x user push-buttons

Software Features

Compatibility

Interfaces

  • On-board Controller Area Network Flexible Data-rate (CAN FD)
  • On-board LIN
  • Serial Wire Debug/Joint Test Action Group (SWD/JTAG) debug interface for S32K3 debugger

Enablement
