GD3160 Half-Bridge Evaluation Kit

FRDMGD3160DSBHB

Roll over image to zoom in

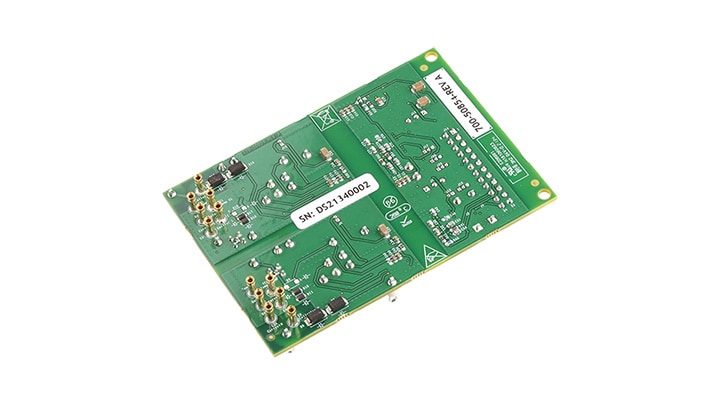

The FRDMGD3160DSBHB is a half-bridge evaluation kit populated with two GD3160 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the GD3160 gate drive devices in either daisy chain or standalone configuration.

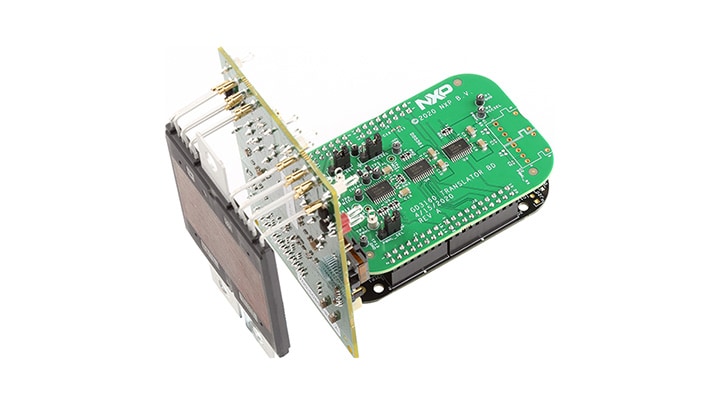

The KITGD3160TREVB translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers. The evaluation kit is designed to connect to a NVG800A75L4DSB with VE-Trac™ Dual IGBT module from onsemi for half-bridge evaluations and applications development.

Product Details

Select a section:

Block Diagram

GD3160 Block Diagram

GD3160 Block Diagram
Get diagram PDF

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3160: Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

Features

General

  • Compatible with NVG800A75L4DSB IGBT module
  • Flex GUI graphical user interface available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using Flex GUI
  • Double pulse and short circuit evaluations
  • Fiber optic connections for external PWM inputs

Buy Options

FRDMGD3160DSBHB-Image

Click to expand

  • FRDMGD3160DSBHB

  • GD3160 Half-Bridge Evaluation Kit.

  • Kit Contains

    • Half-Bridge evaluation kit featuring GD3160 gate drive devices for IGBT/SiC MOSFET
    • KITGD3160TREVB translator with KL25Z MCU
    • Micro usb cable
    • Quick start guide
  • $739.68 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

3 documents

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Printed Circuit Boards and Schematics

    FRDMGD3160DSBHB Schematics

    PDFRev AJun 21, 2021 13:09:001.3 MBSPF-50854
    Sign in required
    Download
  • Design Files - miscellaneous

    FRDMGD3160DSBHB Design Files

    ZIPRev 1Sep 15, 2021 13:18:004.6 MBFRDMGD3160DSBHB-DESIGN-FILES
    Sign in required
    Download
