MIMXRT1170-EVK: i.MX RT1170 Evaluation Kit
i.MX RT1170 EVK Angle view

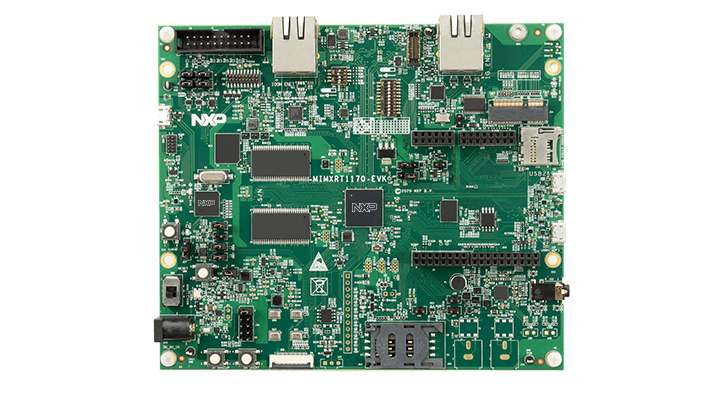

i.MX RT1170 EVK Top view
i.MX RT1170 EVK Front view
Specifications
Supported Devices
Technical and Functional Specifications
| Processor |
|
| Board Memory |
|
| Connectivity |
|
| Audio |
|
| Debug Capabilities |
|
| Sensors |
|
| Expansion Connectors |
|
| Additional |
|
Buy
-
MIMXRT1170-EVK Active
- i.MX RT1170 Evaluation Kit
-
RK055HDMIPI4M Active
- 5.5 inch 720*1280 TFT LCD display with touch sensitive overlay, 2-lane or 4-lane MIPI interface
Design Resources
Getting Started with the i.MX RT1170 Evaluation Kit
This page will help guide you through the process of learning about your i.MX RT1170 board.
Documents ( 8 )
Design Resources ( 3 )
Software ( 6 )
Documents
Data Sheet ( 1 )
-
i.MX RT1170 Crossover Processors Data Sheet for Consumer Products
The i.MX RT1170 is a new high-end processor of i.MX RT family, which features NXP’s advanced implementation of a high performance Arm Cortex®-M7 core operating at speeds up to 1 GHz and a power efficient Cortex®-M4 core up to 400 MHz.
Application Note ( 2 )
-
Modifying debug firmware on i.MX RT boards with LPC4322 debug probe
This application note describes how to switch between the default OpenSDA, LPC-Link2 style CMSIS-DAP and J-Link firmware options on i.MX RT 1xxx boards with an LPC4322 based debug probe.
User Guide ( 4 )
-
Hardware Development Guide for the MIMXRT1160/1170 Processor
This document’s purpose is to help hardware engineers design and test their MIMXRT1170 processor-based designs. It provides information about board layout recommendations and design checklists to ensure first-pass success and avoid board bring-up problems.
-
Getting Started with the i.MX RT1170 Evaluation Kit
This page will help guide you through the process of learning about your i.MX RT1170 board.
-
MIMXRT1170 EVK Board Hardware User’s Guide
user's guide, MIMXRT1170EVKHUG, RT1170, EVK
Quick Reference Guide ( 1 )
-
i.MX RT1170 EVK Quick Start Guide
The i.MX RT1170 evaluation kit (EVK) provides a high-performance solution in a highly integrated board. It consists of a 6-layer PCB with through hole design for better EMC performance at a low cost, and it includes key components and interfaces.
Design Resources
Design Tools & Files ( 3 )
Models ( 2 )
-
BDSL file for i.MXRT1170
NXP offers BSDL models for MCUs. Symbols and footprints in a single, vendor neutral BXL file are also provided. A free export tool provided by Accelerated Designs can be used to convert BXL files to the CAD system of your choice.
-
IBIS Model file for i.MXRT1170
NXP offers BSDL and IBIS models for MCUs. Symbols and footprints in a single, vendor neutral BXL file are also provided. A free export tool provided by Accelerated Designs can be used to convert BXL files to the CAD system of your choice.
Printed Circuit Boards and Schematics ( 1 )
-
MIMXRT1170-EVK Design files
i. MXRT1170 EVK Design files including hardware schematics, Gerbers, and OrCAD files
Software
Embedded Software ( 8 )
BSP, Drivers and Middleware ( 6 )
-
eIQ® Inference with DeepViewRT™
Platform-optimized, proprietary runtime inference engine for machine learning applications for EdgeVerse MCUs and microprocessors.
-
MCUXpresso SDK Builder for the i.MX RT1170 + eIQ inference with DeepView RT
MCUXpresso Software Development Kit for the i.MX RT1170 Crossover MCU. (Can also be downloaded directly in MCUXpresso IDE).
-
Arm Keil MDK-Middleware
MDK Middleware provides royalty-free, tightly-coupled software components that are specifically designed for communication peripherals in microcontrollers. It is provided as part of the MDK-Professional or MDK-Plus editions in binary format.
-
Micro CANopen Plus
Compliant and mature CANopen and CANopen FD follower and manager stack with a range of module add-ons. Designed to run in any environment: bare-metal, RTOS or consumer OS.
-
emWin (GUI/Graphics Package)
emWin the most efficient and comprehensive GUIs available. It is written in ANSI C and supports any display controller, display and CPU. emWin includes the AppWizard GUI design tool and a Simulation Environment to help speed your development.
Libraries ( 1 )
-
Voice Intelligent Technology
Voice Intelligent Technology (VIT) library provides voice UI enablement with always-on voice detection and local commands based on state-of-the-art deep learning and speech recognition technologies.
AI and Machine Learning Models and Solutions ( 1 )
-
eIQ® Toolkit for End-to-End Model Development and Deployment
eIQ Workflow Tool supports data curation, model training, quantization and pruning, validation, target profiling and model deployment.
Development Software ( 3 )
UI Developer ( 3 )
-
Azure® RTOS for NXP Microcontrollers
Azure RTOS is an embedded development suite including a small but powerful operating system that provides reliable, ultra-fast performance for resource-constrained devices.
-
STORYBOARD - Embedded GUI devel
Storyboard provides a faster way to create best-in-class GUIs across the widest range of target devices and was built with scalability and resource management at the forefront, ensuring that teams can build modern GUIs on budget, and on time.
-
Embedded Wizard
Embedded Wizard is a solution that enables the creation of sophisticated GUIs for MCUs and MPUs. The GUI development is speeded-up with the use of the built-in WYSIWYG editing facility, instant prototyping, simulating and debugging on PC.
Get Help
Recommended Communities
Training and Events
i.MX RT1170 - Arrow Hands-On Trainings
In this practical webinar, Steve Mitchell and Mark Dunnett of Arrow will demonstrate how to get started with NXP’s 1 GHz i.MX RT1170 Crossover microcontroller based on ARM Cortex® M7. After a brief introduction to the new microcontroller,
Microsoft: Edge to Cloud—Enabling New Intelligent Capabilities with Azure IoT and NXP’s i.MX RT Crossover MCUs
In this session you will learn more about Azure RTOS, how to connect a device to the cloud, and deploy over-the-air updates leveraging the Azure IoT services.
Avnet: MaaXBoard RT Reference Designs to Accelerate Your i.MX RT1170 Application Development
Learn how to work with the MaaXboard RT's system-level reference design and enable it's many features including Azure RTOS, audio, display, camera, networking, and peripherals.
Cost-Optimized HMI and Advanced GUI’s for Automotive and Transportation Applications
Design cost-optimized HMI and Advanced GUI’s for automotive and transportation applications with NXPs i.MX RT1170 MCU and Qt software development tool.
Wi-Fi Connectivity with NXP’s 1 GHz i.MX RT1170 Crossover MCU
In this training, we provide an overview of the connectivity supported by the i.MX RT1170 MCU (including Gbit Ethernet with AVB and TSN, USB and CAN-FD).
