SECURE-PLATFORM: Layerscape Secure Platform - Securing the Complete Product Lifecycle

Overview

The Layerscape Secure Platform provides a complete set of hardware, software and process capabilities to embed security and trust in every aspect of a product's lifecycle. The Secure Platform includes a suite of hardware, software and process capabilities that address design, manufacturing, software, and connectivity. The platform leverages decades of experience in building secure embedded systems for industrial, military and aerospace markets. The Secure Platform starts with embedded security and trust elements in silicon and extends to a comprehensive software and tools framework for trusted boot, execution and storage to ensure strong platform security.

MoreLess

Features

Trust Architecture
- The silicon-based hardware root of trust provides secure boot, secure debug, anti-tamper, runtime integrity checking (RTIC), and secret key protection capabilities built into every SoC
Trust Tools
- Easy configuration and provisioning of system trust capabilities
Secure Boot to verify all software before launch
Trusted Linux including trusted applications and trusted services
Network Security Suite for L2-L7 Firewall and DPI, IPS, SSL, IPSec, and Hardware offload for secure connectivity
NXP Secure Manufacturing process integrates with device lifecycle management framework
Secure Provisioning Tool providing secured commissioning, updates, and easy integration into Device Life Cycle Management (DLM) frameworks

MoreLess

Features

Trust Architecture
- The silicon-based hardware root of trust provides secure boot, secure debug, anti-tamper, runtime integrity checking (RTIC), and secret key protection capabilities built into every SoC
Trust Tools
- Easy configuration and provisioning of system trust capabilities
Secure Boot to verify all software before launch
Trusted Linux including trusted applications and trusted services
Network Security Suite for L2-L7 Firewall and DPI, IPS, SSL, IPSec, and Hardware offload for secure connectivity
NXP Secure Manufacturing process integrates with device lifecycle management framework
Secure Provisioning Tool providing secured commissioning, updates, and easy integration into Device Life Cycle Management (DLM) frameworks

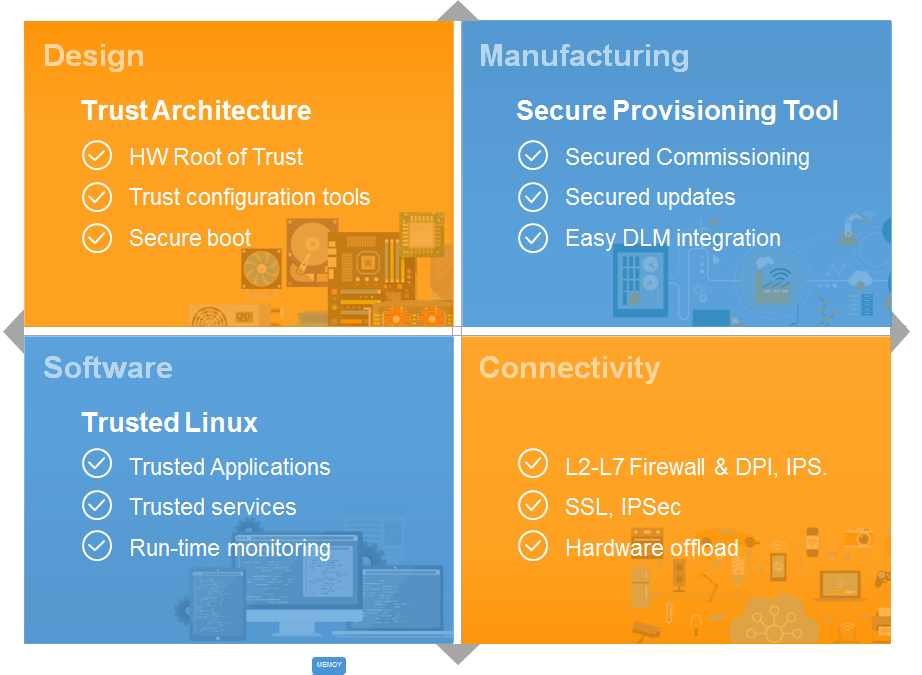

Securing the Product Life Cycle

SECURE PLATFORM

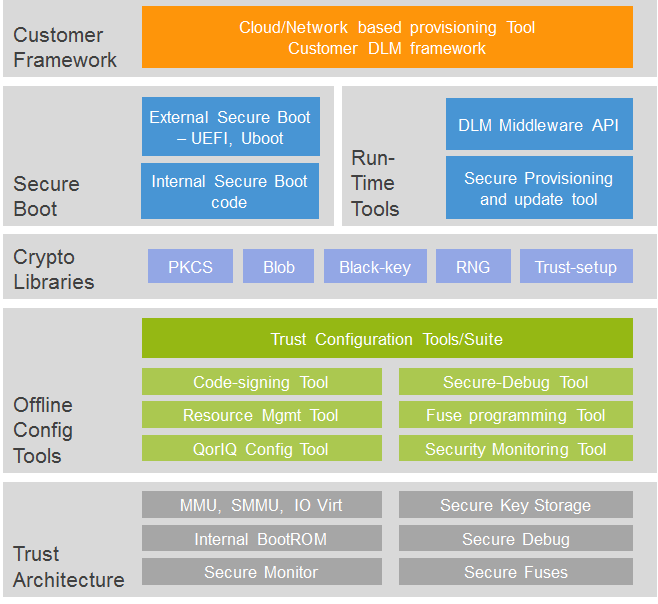

Trust Tools & Secure Boot

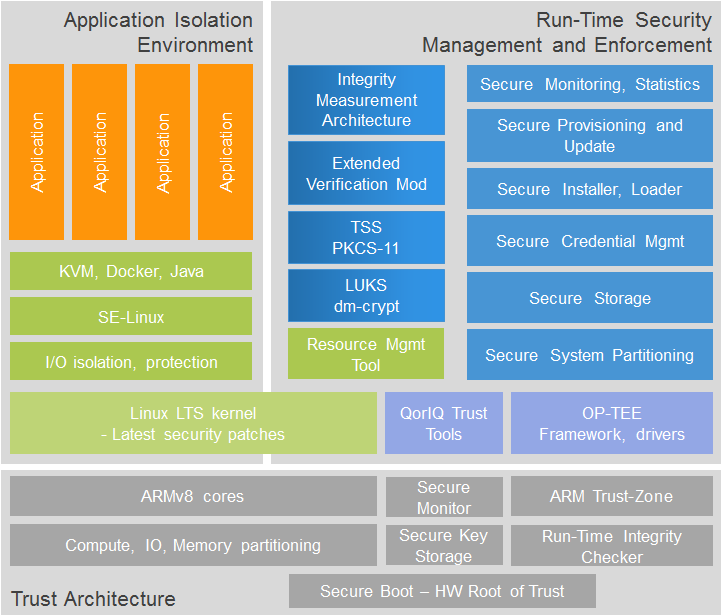

Trusted Linux

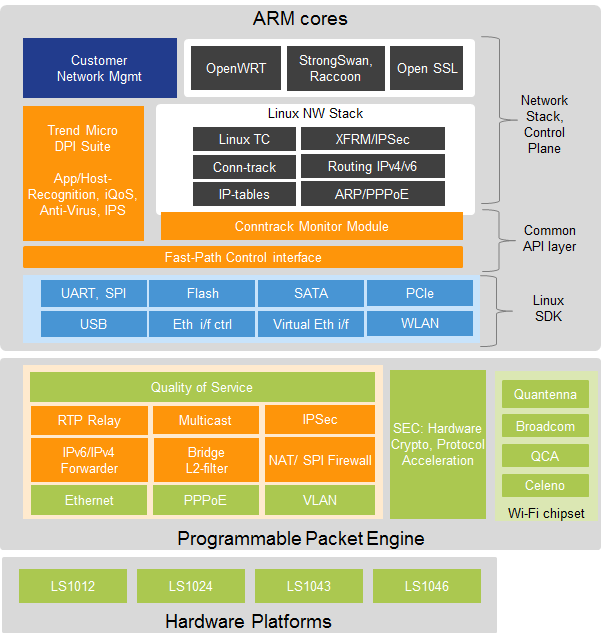

Secure Gateway

Secure Provisioning Tool

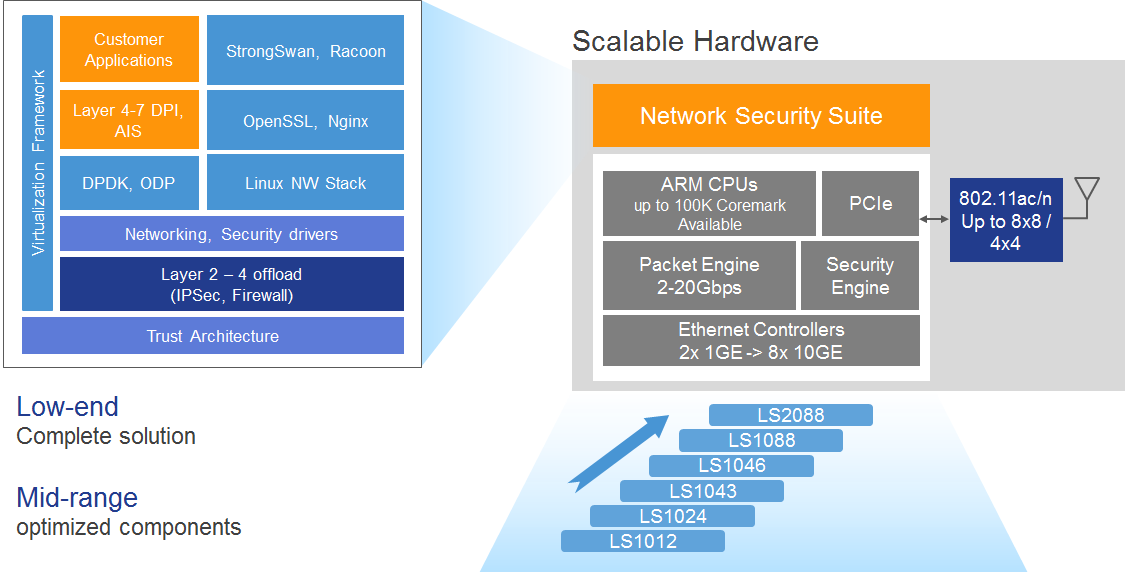

Network Security Suite

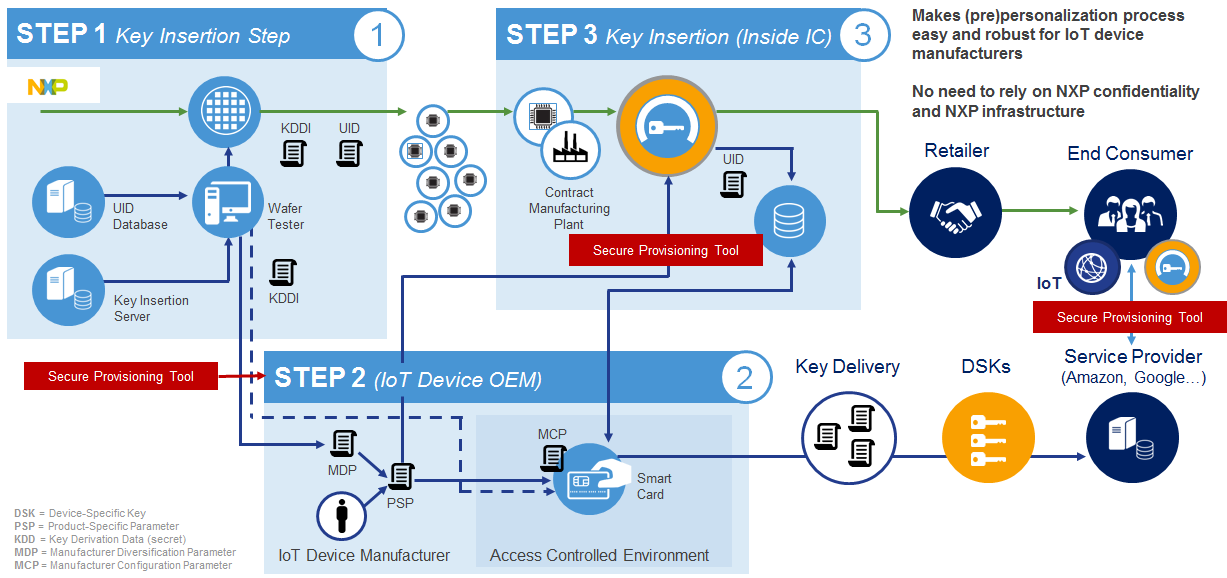

A Secure Distributed Manufacturing Model

Securing the Product Life Cycle
SECURE PLATFORM
Trust Tools & Secure Boot
Trusted Linux
Secure Gateway
Secure Provisioning Tool
Network Security Suite
A Secure Distributed Manufacturing Model

Securing the Product Life Cycle

SECURE PLATFORM

Trust Tools & Secure Boot

Trusted Linux

Secure Gateway

Secure Provisioning Tool

Network Security Suite

A Secure Distributed Manufacturing Model

Previous Next

Supported Devices

Processors and Microcontrollers
- Power Architecture
  - QorIQ^® Processors Based on Field Proven Power Architecture Technology P-Series
    - P2040: QorIQ^® P2040/P2041 Multicore Communications Processors with Data Path
    - P1023: QorIQ^® P1023/17 Low-End Single- and Dual-Core Communications Processors with Data Path
    - P2020: QorIQ^® P2020 and P2010 Dual- and Single-Core Communications Processors
    - P1025: QorIQ^® P1025/16 Single- and Dual-Core Multi-Protocol Communications Processors
    - P5040: QorIQ^® P5040/5021 64-bit Dual- and Quad-Core Communications Processors
    - P3041: QorIQ^® P3041 Quad-Core Communications Processors
    - P4080: QorIQ^® P4080/P4040/P4081 Multicore Communications Processors
    - P5020: QorIQ^® P5020 and P5010 64-bit Dual- and Single-Core Communications Processors
    - P1010: QorIQ^® P1010 and P1014 Low-Power Communications Processors with Trust Architecture
    - P1021: QorIQ^® P1021/12 Single- and Dual-Core Multi-Protocol Communications Processors
    - P1024: QorIQ^® P1024/15 Single- and Dual-Core Communications Processors
    - P1020: QorIQ^® P1020 and P1011 Dual- and Single-Core Communications Processors
  - QorIQ^® Processors Based on Power Architecture Technology T-Series
    - T4240: QorIQ^® T4240/T4160/T4080 Multicore Communications Processors
    - T1040: QorIQ^® T1040 and T1020 Multicore Communications Processors
    - T1024: QorIQ^® T1024/14 and T1023/13 Dual- and Single-Core Communications Processors
    - T2080: QorIQ^® T2080 and T2081 Multicore Communications Processors
    - T1042: QorIQ^® T1042 and T1022 Multicore Communications Processors
  - QorIQ Qonverge^® Platform: Baseband Processor
    - B4860: QorIQ^® B4860 Baseband Processor
    - BSC9132: QorIQ^® Qonverge BSC9132 Dual-core Processor and Dual-core DSP
    - BSC9131: QorIQ^® Qonverge BSC9131 Single-core Processor and Single-core DSP
    - B4420: QorIQ^® Qonverge B4420 Baseband Processor
- Arm Processors
  - Layerscape^® Processors Based on Arm^® Technology
    - LS1012A: Layerscape^® 1012A Low Power Communication Processor
    - LS1046A: Layerscape^® 1046A and 1026A Multicore Communications Processors
    - LS1043A: Layerscape^® 1043A and 1023A Multicore Communications Processors
    - LS1021A: Layerscape^® 1021A Dual-Core Communications Processor with LCD Controller
    - LS2084A: Layerscape 2084A and 2044A Multicore Communications Processors
    - LS1088A: Layerscape^® 1088A and 1048A Communications Processor
    - LS1020A: Layerscape^® 1020A and 1022A Dual-Core Processors
    - LS1028A: Layerscape^® 1028A Industrial Applications Processor
    - LS2088A: Layerscape^® 2088A and 2048A Multicore Communications Processors
    - LA1575: Layerscape^® Access LA1575 Programmable Wireless Platform

Target Applications

Industrial

Building Security
