1. Out of the Box

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the TEA2017DK1007 programming board.

1.1 Kit Contents and Packing List

The contents of the TEA2017DK1007 kit are:

TEA20xx_SOCKET_DB1586 programming board

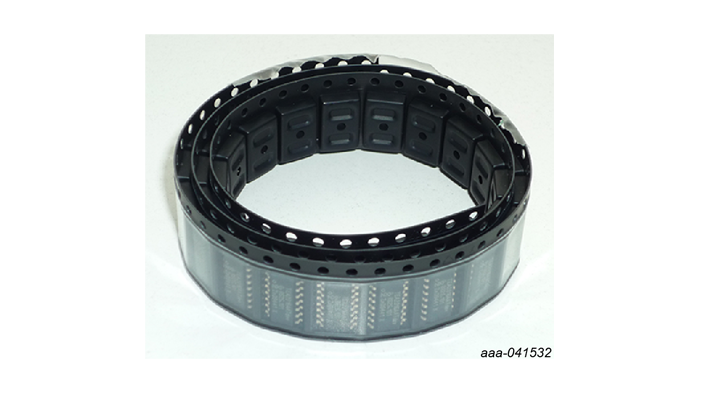

20 ICs TEA2017AAT/3dev

Figure 1.TEA2017DK1007 kit

Mark as complete:1.1 Kit Contents and Packing List

1.2 Additional Hardware

In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.

RDK01DB1563 USB-I²C Programming Interface

Mark as complete:1.2 Additional Hardware

NextGet Hardware

2. Get Hardware

2.1 Board Features

This board can be used for programming small series of TEA2017 and/or TEA2016 samples. Place the jumper on the board in the position that corresponds with the IC to be programmed. By connecting both the 3pin and 6pin connector to the USB-I²C programming interface, regular production samples and development samples can be programmed after selecting the correct channel with the switch on the USB-I²C interface.

Mark as complete:2.1 Board Features

2.2 Board Description

The TEA2017AAT/3 digital architecture is based on a high-speed configurable hardware state machine ensuring very reliable real-time performance.

Several parameters can easily be configured during evaluation with use of the graphical user interface (GUI):

Operating frequencies to be outside the audible area at all operating modes
Soft start and soft stop in burst mode, reducing the audible noise
Accurate transition levels between operation modes (high-power mode/low-power mode/burst mode)
Enabling/disabling the lower power mode

TEA2017AAT/3 samples can be easily programmed using the TEA20xx_SOCKET_DB1586 board in connection with the TEA2016DB1514v2 demo kit and the GUI.

Mark as complete:2.2 Board Description

2.3 Board Components

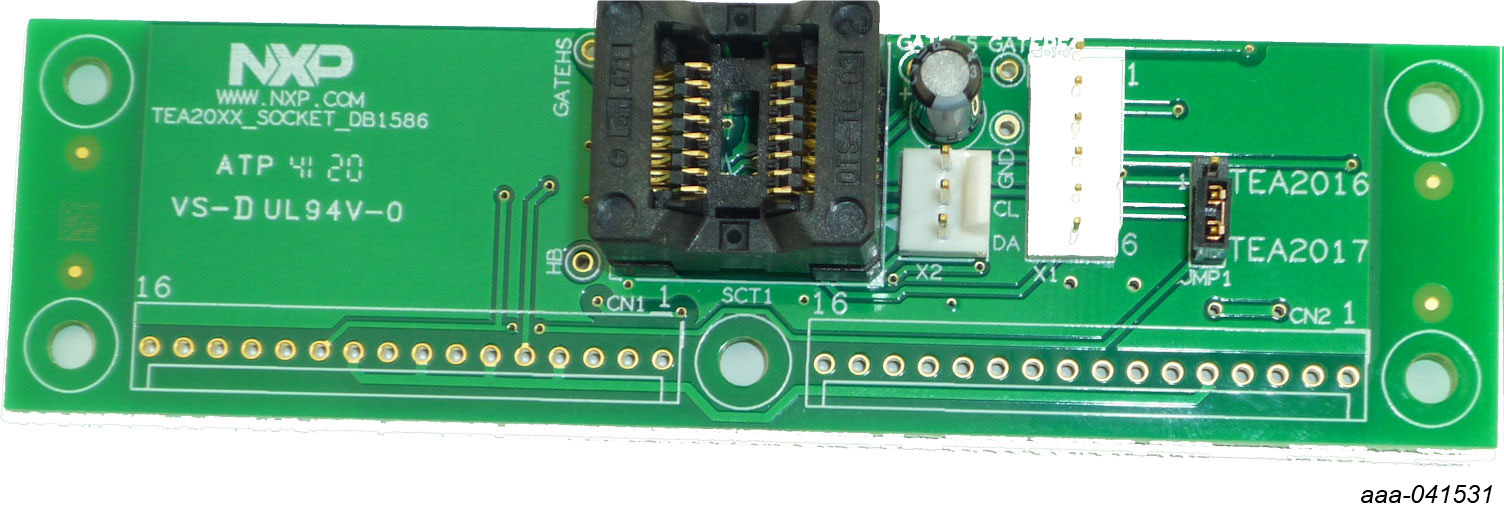

TEA2017 Programming board (SO16 socket)

Figure 2.TEA2017 Programming board

Mark as complete:2.3 Board Components

PreviousOut of the Box

NextConfigure Hardware

3. Configure Hardware

3.1 Configure Hardware

Both TEA2017AAT/3 and TEA2017AAT/3dev samples can be programmed by means of the TEA20xx_Socket_DB1586 board + I²C interface (RDK01DB1563). The selector switch on the I²C interface must be set in the right position prior to programming TEA2017AAT or TEA2017AAT/3dev samples. The TEA20xx_Socket_DB1586 board also contains a jumper to enable programming of TEA2016 samples.
