MPC7447A
NRND
  • This page contains information on a product that is not recommended for new designs.

The MPC7447A processor is a high-performance, low-power, 32-bit implementation of the RISC architecture. Key architectural features include 512 KB of on-chip L2 cache, a 64-bit bus interface and a full 128-bit implementation of Our AltiVec®™ technology. MPC7447A processors are ideal for leading-edge computing, embedded network control and signal processing applications.

Designed as pin-compatible replacements for Our MPC7447 products, these new processors have been shown to reach speeds of 1.5 GHz. MPC7447A processors benefit from Our silicon-on-insulator (SOI) process technology, engineered to help deliver significant power savings without sacrificing speed. Low-power versions of the MPC7447A are available.

Embedded Enhancements
The MPC7447A offers eight instruction BAT and data BAT registers to help support lightweight embedded operating systems, enabling more large tables of data. The processors also provide cache locking to the L1 caches so that key performance algorithms and code can be locked in the L1 cache.

See product image

Product Details

Block Diagram

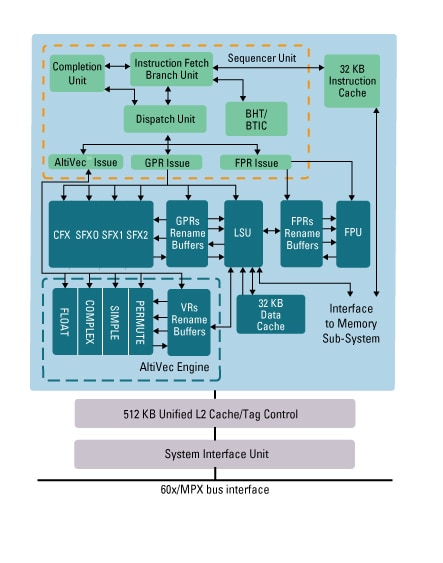

MPC7447A block diagram

Get diagram PDF

Features

  • Four integer units (three simple plus one complex)
  • Double-precision floating point unit
  • Four AltiVec® technology units (simple, complex, floating and permute)
  • Load/store unit
  • Branch processing unit
  • Clock frequency can be changed dynamically
  • Temperature sensing diodes included to monitor die temperature
  • MPC7447A processors are pin for pin compatible with MPC7445 and MPC7447 processors.
  • As with all microprocessors built on Power Architecture technology, MPC7447A processors are software compatible with the MPC7xx family of processors from NXP®.
  • Microprocessors built on Power Architecture technology enjoy a broad set of operating systems, compilers and development tools from third-party vendors.

Buy/Parametrics

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPMPC7447Aen 57 Application Note Application Note t789 28 Application Note Software Application Note Software t783 1 Data Sheet Data Sheet t520 3 Errata Errata t522 1 Fact Sheet Fact Sheet t523 2 Package Information Package Information t790 4 Product Brief Product Brief t532 1 Product Numbering Scheme Product Numbering Scheme t524 1 Reference Manual Reference Manual t877 7 Reliability and Quality Information Reliability and Quality Information t791 1 Supporting Information Supporting Information t531 1 Training Presentation Training Presentation t878 2 White Paper White Paper t530 4 en_US 0 false en_US en Data Sheet Data Sheet 3 1 5 English This document is primarily concerned with the PowerPC MPC7447A; however, unless otherwise noted, all information here also applies to the MPC7447. The MPC7447A is an implementation of the PowerPC microprocessor family of reduced instruction set computer (RISC) microprocessors. This document describes pertinent electrical and physical characteristics of the MPC7447A. For functional characteristics of the processor, refer to the MPC7450 RISC Microprocessor Family Reference Manual. 1077912864929712052640 PSP 1.1 MB None None documents None 1077912864929712052640 /docs/en/data-sheet/MPC7447AEC.pdf 1102884 /docs/en/data-sheet/MPC7447AEC.pdf MPC7447AEC documents N 2004-02-27 MPC7447A RISC Microprocessor Hardware Specifications /docs/en/data-sheet/MPC7447AEC.pdf /docs/en/data-sheet/MPC7447AEC.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Jan 30, 2006 980000996212993340 Data Sheet Y N MPC7447A RISC Microprocessor Hardware Specifications 2 3 English This document describes part-number-specific changes to recommended operating conditions and revised electrical specifications, as applicable, from those described in the general MPC7447A RISC Microprocessor Hardware Specifications. The MPC7447A is a PowerPC microprocessor. 1096052238912722654897 PSP 102.4 KB None None documents None 1096052238912722654897 /docs/en/data-sheet/MPC7447AECS01AD.pdf 102394 /docs/en/data-sheet/MPC7447AECS01AD.pdf MPC7447AECS01AD documents N 2004-09-24 MPC7447A Hardware Specification Addendum for the MC7447AxxnnnnNx Series /docs/en/data-sheet/MPC7447AECS01AD.pdf /docs/en/data-sheet/MPC7447AECS01AD.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Sep 23, 2005 980000996212993340 Data Sheet Y N MPC7447A Hardware Specification Addendum for the MC7447AxxnnnnNx Series 3 1 English Hardware Specification Addendum 1096307200438695142647 PSP 69.9 KB None None documents None 1096307200438695142647 /docs/en/data-sheet/MPC7447AECS02AD.pdf 69905 /docs/en/data-sheet/MPC7447AECS02AD.pdf MPC7447AECS02AD documents N 2004-09-27 MPC7447A Hardware Specification Addendum for the MC7447ATxxnnnnNx Series /docs/en/data-sheet/MPC7447AECS02AD.pdf /docs/en/data-sheet/MPC7447AECS02AD.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Oct 19, 2004 980000996212993340 Data Sheet Y N MPC7447A Hardware Specification Addendum for the MC7447ATxxnnnnNx Series Reference Manual Reference Manual 7 4 5.3 English MPC7450UMAD: This errata describes corrections to the MPC7450 RISC Microprocessor Family Reference Manual, Rev.5. The MPC7450 is a PowerPC&#174; microprocessor built on Power Architecture&#174; technology. M997738588898 PSP 131.9 KB None None documents None M997738588898 /docs/en/reference-manual/MPC7450UMAD.pdf 131855 /docs/en/reference-manual/MPC7450UMAD.pdf MPC7450UMAD documents N N 2001-08-13 MPC7450UMAD, Errata to the MPC7450 RISC Microprocessor Family Reference Manual, Rev. 5 - Reference Manual Addendum /docs/en/reference-manual/MPC7450UMAD.pdf /docs/en/reference-manual/MPC7450UMAD.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Jul 8, 2013 500633505221135046 Reference Manual Y N MPC7450UMAD, Errata to the MPC7450 RISC Microprocessor Family Reference Manual, Rev. 5 - Reference Manual Addendum 5 3 English The primary objective of this manual is to help programmers provide software that is compatible with processors that implement the PowerPC&#8482; architecture and the AltiVec&#8482; technology. This book describes how the AltiVec technology relates to the 32-bit portions of the PowerPC architecture. I966578762196 PSP 2.6 MB None None documents None I966578762196 /docs/en/reference-manual/ALTIVECPEM.pdf 2571819 /docs/en/reference-manual/ALTIVECPEM.pdf ALTIVECPEM documents N 2000-08-17 AltiVec<sup>&#174;</sup> Technology Programming Environments Manual /docs/en/reference-manual/ALTIVECPEM.pdf /docs/en/reference-manual/ALTIVECPEM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Apr 17, 2006 500633505221135046 Reference Manual Y N AltiVec<sup>&#174;</sup> Technology Programming Environments Manual 6 3 English Programming Environments Manual for 32-Bit Implementations of the Power Architecture. E966578690432 PSP 6.1 MB Registration without Disclaimer None documents Extended E966578690432 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 6125455 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf MPCFPE32B documents Y N 2016-10-31 Programming Environments Manual for 32-Bit Implementations of the Power Architecture /webapp/Download?colCode=MPCFPE32B /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Oct 17, 2005 500633505221135046 Reference Manual Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 7 5 English The MPC7450 implements the PowerPC architecture and is a reduced instruction set computer (RISC) microprocessor. The MPC7450 consists of a processor core, 32-Kbyte separate L1 instruction and data caches, a 256-Kbyte L2 cache (512-Kbyte for MPC7457 and 1 Mbyte for the MPC7448), and an internal L3 controller with tags that support a glueless backside L3 cache through a dedicated high-bandwidth interface. The MPC7441, MPC7445, MPC7447, MPC7447A, and MPC7448 do not support the L3 cache and the L3 interface. T D989356432093 PSP 7.2 MB None None documents None D989356432093 /docs/en/reference-manual/MPC7450UM.pdf 7167550 /docs/en/reference-manual/MPC7450UM.pdf MPC7450UM documents N 2001-05-08 MPC7450 RISC Microprocessor Family Reference Manual /docs/en/reference-manual/MPC7450UM.pdf /docs/en/reference-manual/MPC7450UM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jan 27, 2005 500633505221135046 Reference Manual Y N MPC7450 RISC Microprocessor Family Reference Manual 8 0.1 English User's Manual A995913155484 PSP 3.4 MB None None documents None A995913155484 /docs/en/reference-manual/MPC60XBUSRM.pdf 3416811 /docs/en/reference-manual/MPC60XBUSRM.pdf MPC60XBUSRM documents N 2001-07-23 The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture /docs/en/reference-manual/MPC60XBUSRM.pdf /docs/en/reference-manual/MPC60XBUSRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jan 14, 2004 500633505221135046 Reference Manual Y N The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture 9 0 English ALTIVECPIM AltiVec Technology Programming Interface Manual C966578768976 PSP 9.6 MB None None documents None C966578768976 /docs/en/reference-manual/ALTIVECPIM.pdf 9602187 /docs/en/reference-manual/ALTIVECPIM.pdf ALTIVECPIM documents N 2000-08-17 AltiVec<sup>&#174;</sup> Technology Programming Interface Manual /docs/en/reference-manual/ALTIVECPIM.pdf /docs/en/reference-manual/ALTIVECPIM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jun 1, 1999 500633505221135046 Reference Manual Y N AltiVec<sup>&#174;</sup> Technology Programming Interface Manual 10 0 English ALTIVECPEMAD AltiVec Technology Programming Environments Manual Errata. O966578765582 PSP 263.1 KB None None documents None O966578765582 /docs/en/reference-manual/ALTIVECPEMAD.pdf 263102 /docs/en/reference-manual/ALTIVECPEMAD.pdf ALTIVECPEMAD documents N 2000-08-17 AltiVec<sup>&#174;</sup> Technology Programming Environments Manual Errata /docs/en/reference-manual/ALTIVECPEMAD.pdf /docs/en/reference-manual/ALTIVECPEMAD.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Mar 1, 1999 500633505221135046 Reference Manual Y N AltiVec<sup>&#174;</sup> Technology Programming Environments Manual Errata Application Note Application Note 28 11 3 English This application note provides guidelines for the handling and assembly of NXP land grid array (LGA), sometimes referred to as laminated quad flat no lead (QFN), packages during printed‑circuit board (PCB) assembly. 1438291205675697718255 PSP 1.5 MB None None documents None 1438291205675697718255 /docs/en/application-note/AN2265.pdf 1502896 /docs/en/application-note/AN2265.pdf AN2265 documents N N 2023-10-11 AN2265, Assembly Guidelines for Land Grid Array (LGA) Package Application Note /docs/en/application-note/AN2265.pdf /docs/en/application-note/AN2265.pdf Application Note N 645036621402383989 2023-10-11 pdf N en Sep 18, 2023 645036621402383989 Application Note Y N AN2265, Assembly Guidelines for Land Grid Array (LGA) Package Application Note 12 4 English This document compares the performance of fast Fourier transform (FFT) with and without AltiVec&#8482; technology to demonstrate how mathematically-intensive code can be adapted for use with AltiVec and how AltiVec increases code performance. 11LMSRbQ PSP 232.9 KB None None documents None 11LMSRbQ /docs/en/application-note/AN2114.pdf 232893 /docs/en/application-note/AN2114.pdf AN2114 documents N N 2003-06-05 Complex Fixed-Point Fast Fourier Transform Optimization for Altivec(TM) /docs/en/application-note/AN2114.pdf /docs/en/application-note/AN2114.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 5, 2013 645036621402383989 Application Note N Complex Fixed-Point Fast Fourier Transform Optimization for Altivec(TM) 13 2 English This document provides information to programmers to write optimal code for the MPC750, MPC7400, and MPC7450 microprocessors that implement the PowerPC architecture, with particular emphasis on the MPC7450, which is significantly different from previous designs. The target audience includes performance-oriented writers of both compilers and hand-coded assembly. L1005192811517 PSP 467.4 KB None None documents None L1005192811517 /docs/en/application-note/AN2203.pdf 467384 /docs/en/application-note/AN2203.pdf AN2203 documents N 2001-11-07 MPC7450 RISC Microprocessor Family Software Optimization Guide /docs/en/application-note/AN2203.pdf /docs/en/application-note/AN2203.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 30, 2007 645036621402383989 Application Note Y N MPC7450 RISC Microprocessor Family Software Optimization Guide 14 1 English This application note describes the process of selecting the correct memory size value for various Sandpoint PCI mezzanine card (PMC) processors. This information also applies to the NXP PCI mezzanine card (MPMC), which is the same as the PMC. 1081798851540716709767 PSP 448.2 KB None None documents None 1081798851540716709767 /docs/en/application-note/AN2660.pdf 448179 /docs/en/application-note/AN2660.pdf AN2660 documents N 2004-04-12 Sandpoint Linux Memory Size Considerations /docs/en/application-note/AN2660.pdf /docs/en/application-note/AN2660.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 11, 2007 645036621402383989 Application Note Y N Sandpoint Linux Memory Size Considerations 15 4 English This App Note describes how to design a platform with a common footprint for the MPC7441, MPC7445, MPC7447, MPC7447A and MPC7448. 1080155855913723480746 PSP 484.0 KB None None documents None 1080155855913723480746 /docs/en/application-note/AN2656.pdf 484011 /docs/en/application-note/AN2656.pdf AN2656 documents N 2004-03-24 Common Footprint for the MPC7441, MPC7445, MPC7447, MPC7447A, and MPC7448 /docs/en/application-note/AN2656.pdf /docs/en/application-note/AN2656.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 11, 2007 645036621402383989 Application Note Y N Common Footprint for the MPC7441, MPC7445, MPC7447, MPC7447A, and MPC7448 16 1 English The architecture for the PowerPC&#8482; instruction set provides two types of synchronizing instructions:&#13;&#10;* Context-synchronizing&#13;&#10;* Execution-synchronizing &#13;&#10;This application note presents a high-level definition and description of each type of synchronizing instruction. 1057245101474727053067 PSP 451.7 KB None None documents None 1057245101474727053067 /docs/en/application-note/AN2540.pdf 451663 /docs/en/application-note/AN2540.pdf AN2540 documents N 2003-07-03 Synchronizing Instructions for PowerPC(TM) Instruction Set Architecture /docs/en/application-note/AN2540.pdf /docs/en/application-note/AN2540.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 8, 2006 645036621402383989 Application Note Y N Synchronizing Instructions for PowerPC(TM) Instruction Set Architecture 17 2 English This document describes porting Montavista's Hardhat Linux from a sandpoint 2 platform with the MPC8240PMC, the MPC755PMC, or the MPC7400PMC to the PowerPC MPC7450/MPC7451. It explains how to set up the development environment and how to compile, load, and run the resultant Hardhat Linux on the sandpoint MPC7450 platform. F994873321629 PSP 580.0 KB None None documents None F994873321629 /docs/en/application-note/AN2145.pdf 580033 /docs/en/application-note/AN2145.pdf AN2145 documents N 2001-07-11 Porting Linux to the Power Architeecture MPC7451 /docs/en/application-note/AN2145.pdf /docs/en/application-note/AN2145.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 19, 2006 645036621402383989 Application Note Y N Porting Linux to the Power Architeecture MPC7451 18 2 English This application note describes the generally recommended connections for new designs based on Motorola PowerPC&#8482; processors, as well as integrated embedded processors, and system controller logic for them. 11Jmthmt PSP 546.2 KB None None documents None 11Jmthmt /docs/en/application-note/AN2077.pdf 546230 /docs/en/application-note/AN2077.pdf AN2077 documents N 2003-05-29 Design Checklist for NXP<sup>&#174;</sup> Semiconductors PowerPC(TM) Microprocessors /docs/en/application-note/AN2077.pdf /docs/en/application-note/AN2077.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 19, 2006 645036621402383989 Application Note Y N Design Checklist for NXP<sup>&#174;</sup> Semiconductors PowerPC(TM) Microprocessors 19 1 English This document details differences in implementation of the PowerPC&#8482; 60x Bus with the&#13;&#10;MPC750, MPC7400, MPC7410, and MPC7450 PowerPC microprocessors. Q979795400002 PSP 488.3 KB None None documents None Q979795400002 /docs/en/application-note/AN2097.pdf 488267 /docs/en/application-note/AN2097.pdf AN2097 documents N 2001-01-17 PowerPC(TM) 60X Bus Implementation Differences /docs/en/application-note/AN2097.pdf /docs/en/application-note/AN2097.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 11, 2006 645036621402383989 Application Note Y N PowerPC(TM) 60X Bus Implementation Differences 20 2 English This application note describes the instruction and data access latencies of the L1, L2, and L3 caches of the MPC7450 microprocessor family. W997218090072 PSP 475.3 KB None None documents None W997218090072 /docs/en/application-note/AN2180.pdf 475266 /docs/en/application-note/AN2180.pdf AN2180 documents N 2001-08-07 Cache Latencies of the 7451 /docs/en/application-note/AN2180.pdf /docs/en/application-note/AN2180.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 25, 2006 645036621402383989 Application Note Y N Cache Latencies of the 7451 21 1 English This application note addresses the process and methodology of porting Altivec-enabled software to a multiprocessing operating environment. 1065808341014719640361 PSP 572.1 KB None None documents None 1065808341014719640361 /docs/en/application-note/AN2581.pdf 572116 /docs/en/application-note/AN2581.pdf AN2581 documents N 2003-10-10 Altivec Performance Enhancement in a Multiprocessing Environment /docs/en/application-note/AN2581.pdf /docs/en/application-note/AN2581.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 11, 2006 645036621402383989 Application Note Y N Altivec Performance Enhancement in a Multiprocessing Environment 22 1 English This application note describes the process of setting up the on-chip table lookaside buffers (TLBs) for translation, without using page tables, for classic PowerPC processors with multiple areas of memory mapped one-to-one. The application note applies only to MPC745x and MPC744x (with software table search enabled in non-extended mode). 1097704010444713028838 PSP 463.0 KB None None documents None 1097704010444713028838 /docs/en/application-note/AN2796.pdf 463033 /docs/en/application-note/AN2796.pdf AN2796 documents N 2004-10-13 TLB Translation Setup for MPC745x and MPC744x in Non-Extended Mode /docs/en/application-note/AN2796.pdf /docs/en/application-note/AN2796.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 22, 2006 645036621402383989 Application Note Y N TLB Translation Setup for MPC745x and MPC744x in Non-Extended Mode 23 0 English This paper presents an efficient method to implement the widely used RSA public-key cryptography with AltiVec&#8482;, an NXP&#8217;s SIMD extension to PowerPC&#174; architecture, and summarizes the advantages of dual-core processors. 1138307830722723625245 PSP 534.2 KB None None documents None 1138307830722723625245 /docs/en/application-note/AN3057.pdf 534183 /docs/en/application-note/AN3057.pdf AN3057 documents N 2006-01-26 Solving Sequential Problems in Parallel - An SIMD Solution to RSA Cryptography /docs/en/application-note/AN3057.pdf /docs/en/application-note/AN3057.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 26, 2006 645036621402383989 Application Note Y N Solving Sequential Problems in Parallel - An SIMD Solution to RSA Cryptography 24 0 English This application note proposes an innovative method of postponing data dependency to calculate CRC. Although this method does not reduce the total number of operations involved in calculating CRC, it greatly improves the CPUs IPC (instructions per cycle) and, as a result, achieves higher performance. 1137448243202718777832 PSP 569.3 KB None None documents None 1137448243202718777832 /docs/en/application-note/AN2926.pdf 569284 /docs/en/application-note/AN2926.pdf AN2926 documents N 2006-01-16 AltiVec<sup>&#174;</sup> Solutions to Sequential Problems: Calculating CRC with Scalable Congruent Equivalence Compression /docs/en/application-note/AN2926.pdf /docs/en/application-note/AN2926.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 16, 2006 645036621402383989 Application Note Y N AltiVec<sup>&#174;</sup> Solutions to Sequential Problems: Calculating CRC with Scalable Congruent Equivalence Compression 25 0 English This application note applies to the MPC7447A and MPC7448 processors embedded on an HPC II platform. It describes the implementation of an Automatic Thermal Monitoring System (ATMS) that can be used to automatically control the processor core temperature. 1131042709163706112833 PSP 221.3 KB None None documents None 1131042709163706112833 /docs/en/application-note/AN2929.pdf 221266 /docs/en/application-note/AN2929.pdf AN2929 documents N 2005-11-03 Automatic Thermal Monitoring System on HPC II /docs/en/application-note/AN2929.pdf /docs/en/application-note/AN2929.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 3, 2005 645036621402383989 Application Note Y N Automatic Thermal Monitoring System on HPC II 26 1 English application note 1115651985486697454831 PSP 658.5 KB None None documents None 1115651985486697454831 /docs/en/application-note/AN2808.pdf 658549 /docs/en/application-note/AN2808.pdf AN2808 documents N 2005-05-10 Migration from IBM 750FX to MPC7447A /docs/en/application-note/AN2808.pdf /docs/en/application-note/AN2808.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 22, 2005 645036621402383989 Application Note Y N Migration from IBM 750FX to MPC7447A 27 1 English application note 1104771998221735368175 PSP 781.9 KB None None documents None 1104771998221735368175 /docs/en/application-note/AN2809.pdf 781906 /docs/en/application-note/AN2809.pdf AN2809 documents N 2005-01-03 Migration from IBM 750CX/CXE to MPC7447A /docs/en/application-note/AN2809.pdf /docs/en/application-note/AN2809.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 22, 2005 645036621402383989 Application Note Y N Migration from IBM 750CX/CXE to MPC7447A 28 2 English Migrating from IBM 750GX to MPC7447A 1098823355574723132885 PSP 632.7 KB None None documents None 1098823355574723132885 /docs/en/application-note/AN2797.pdf 632656 /docs/en/application-note/AN2797.pdf AN2797 documents N 2004-10-26 Migrating from IBM 750GX to MPC7447A /docs/en/application-note/AN2797.pdf /docs/en/application-note/AN2797.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 22, 2005 645036621402383989 Application Note Y N Migrating from IBM 750GX to MPC7447A 29 0 English application note 1118277355326709130683 PSP 430.7 KB None None documents None 1118277355326709130683 /docs/en/application-note/AN2918.pdf 430662 /docs/en/application-note/AN2918.pdf AN2918 documents N 2005-06-08 Correcting Single-bit Errors with CRC8 in ATM Cell Headers /docs/en/application-note/AN2918.pdf /docs/en/application-note/AN2918.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 8, 2005 645036621402383989 Application Note Y N Correcting Single-bit Errors with CRC8 in ATM Cell Headers 30 1.1 English Application note 1093306131075713909017 PSP 1.0 MB None None documents None 1093306131075713909017 /docs/en/application-note/AN2747.pdf 1037572 /docs/en/application-note/AN2747.pdf AN2747 documents N 2004-08-24 Power Supply Design for Power Architecture(TM) Processors /docs/en/application-note/AN2747.pdf /docs/en/application-note/AN2747.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 2, 2004 645036621402383989 Application Note Y N Power Supply Design for Power Architecture(TM) Processors 31 0.1 English application note 1075136407262685790270 PSP 986.1 KB None None documents None 1075136407262685790270 /docs/en/application-note/AN2650.pdf 986081 /docs/en/application-note/AN2650.pdf AN2650 documents N 2004-01-26 Adding New PowerPC Processors and Bridge Chips to Linux /docs/en/application-note/AN2650.pdf /docs/en/application-note/AN2650.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 1, 2004 645036621402383989 Application Note Y N Adding New PowerPC Processors and Bridge Chips to Linux 32 0.2 English I/O power consumption for the PowerPC&#8482; MPC7455 is not explicitly listed in the current MPC7455 Hardware Specification; however, it is suggested that a typical value is less than 20% of VDD power. V1028836470865 PSP 540.8 KB None None documents None V1028836470865 /docs/en/application-note/AN2323.pdf 540766 /docs/en/application-note/AN2323.pdf AN2323 documents N 2002-08-08 PowerPC(TM) MPC7455 I/O Power Evaluation /docs/en/application-note/AN2323.pdf /docs/en/application-note/AN2323.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 11, 2003 645036621402383989 Application Note Y N PowerPC(TM) MPC7455 I/O Power Evaluation 33 1.2 English AN1809SW.txt /secured/assets/documents/en/application-note-software/AN1809SW.txt /webapp/Download?colCode=AN1809SW&appType=license&docLang=en Application Note V966579220043 PSP 1.9 MB None None documents None V966579220043 /docs/en/application-note/AN1809.pdf 1870951 /docs/en/application-note/AN1809.pdf AN1809 documents N 2000-08-17 Minimal Boot Sequence for Executing Compiled C Programs on PowerPC(TM) Devices /docs/en/application-note/AN1809.pdf /docs/en/application-note/AN1809.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 11, 2003 645036621402383989 Application Note Y N Minimal Boot Sequence for Executing Compiled C Programs on PowerPC(TM) Devices 34 0 English Simplified Mnemonics for PowerPC Instructions. 1064950886097724682016 PSP 1.4 MB None None documents None 1064950886097724682016 /docs/en/application-note/AN2491.pdf 1379878 /docs/en/application-note/AN2491.pdf AN2491 documents N 2003-09-30 Simplified Mnemonics for PowerPC Instructions /docs/en/application-note/AN2491.pdf /docs/en/application-note/AN2491.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 30, 2003 645036621402383989 Application Note Y N Simplified Mnemonics for PowerPC Instructions 35 0.1 English The MPX bus of many PowerPC&#8482; processors (for example, the MPC7400, MPC7410 and PC7450/MPC7451) is a split transaction bus that provides for independent arbitration and operation of the address and data buses. U993136546214 PSP 337.6 KB None None documents None U993136546214 /docs/en/application-note/AN2161.pdf 337629 /docs/en/application-note/AN2161.pdf AN2161 documents N 2001-06-21 Outstanding Data Tenures on the MPX Bus /docs/en/application-note/AN2161.pdf /docs/en/application-note/AN2161.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 4, 2003 645036621402383989 Application Note Y N Outstanding Data Tenures on the MPX Bus 36 1.1 English This document describes the steps necessary to configure a Linux DHCP/BOOTP server for&#13;&#10;use with the MontaVista Hard Hat Linux&#8482; CDK, V2.0, running on either a Sandpoint or MVP&#13;&#10;evaluation board client. A1018044971762 PSP 2.0 MB None None documents None A1018044971762 /docs/en/application-note/AN2273.pdf 2003892 /docs/en/application-note/AN2273.pdf AN2273 documents N 2002-04-05 Building an NFS DHCP/BOOTP Server for Use with Sandpoint and MVP Linux /docs/en/application-note/AN2273.pdf /docs/en/application-note/AN2273.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 10, 2003 645036621402383989 Application Note Y N Building an NFS DHCP/BOOTP Server for Use with Sandpoint and MVP Linux 37 0.1 English This document details differences in the implementation of the PowerPC&#8482; MPX Bus with the&#13;&#10;MPC7400, MPC7410, and the MPC7450 microprocessors. Q979795410090 PSP 326.0 KB None None documents None Q979795410090 /docs/en/application-note/AN2106.pdf 325992 /docs/en/application-note/AN2106.pdf AN2106 documents N 2001-01-17 PowerPC(TM) MPX Bus Implementation Differences /docs/en/application-note/AN2106.pdf /docs/en/application-note/AN2106.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 5, 2003 645036621402383989 Application Note Y N PowerPC(TM) MPX Bus Implementation Differences 38 1.1 English Application Note S966579205558 PSP 379.7 KB None None documents None S966579205558 /docs/en/application-note/AN1795.pdf 379656 /docs/en/application-note/AN1795.pdf AN1795 documents N 2000-08-17 Designing PowerPC(TM) MPC7400 Systems /docs/en/application-note/AN1795.pdf /docs/en/application-note/AN1795.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jun 5, 2003 645036621402383989 Application Note Y N Designing PowerPC(TM) MPC7400 Systems Application Note Software Application Note Software 1 39 2 English Power specifications are important to customers, who use the specifications to design their power supplies and thermal solutions. NXP is a member of the embedded microprocessor benchmark consortium (EEMBC), and uses EEMBC benchmarks for measuring power. 1060117990677721773605 PSP 578.2 KB None None documents None 1060117990677721773605 /docs/en/application-note-software/AN2436.pdf 578164 /docs/en/application-note-software/AN2436.pdf AN2436 documents N 2003-08-05 Specifying Power Consumption /docs/en/application-note-software/AN2436.pdf /docs/en/application-note-software/AN2436.pdf Application Note Software N 789425793691620447 2022-12-07 pdf en Sep 21, 2006 789425793691620447 Application Note Software D N Specifying Power Consumption Errata Errata 1 40 9 English This document details all known silicon errata for the MPC7447A. The MPC7447A is a PowerPC microprocessor. The MPC7450 has the same functionality as the MPC7447A and any differences are detailed in the document. 1077669704418706647854 PSP 599.1 KB None None documents None 1077669704418706647854 /docs/en/errata/MPC7447ACE.pdf 599117 /docs/en/errata/MPC7447ACE.pdf MPC7447ACE documents N 2004-02-24 MPC7447A Chip Errata /docs/en/errata/MPC7447ACE.pdf /docs/en/errata/MPC7447ACE.pdf Errata N 155452329886410597 2022-12-07 pdf en Oct 26, 2007 155452329886410597 Errata Y N MPC7447A Chip Errata Fact Sheet Fact Sheet 2 41 4 English The MPC7447A is a high-performance,&#13;&#10;low-power PowerPC processor with&#13;&#10;enhanced power management capabilities. Key&#13;&#10;architectural features include 512 KB of on-chip&#13;&#10;L2 cache, a 64-bit bus interface and a full&#13;&#10;128-bit implementation of Our AltiVec(tm)&#13;&#10;technology. MPC7447A processors are ideal for&#13;&#10;leading-edge computing, embedded network&#13;&#10;control and signal processing applications. 1077308969057728543667 PSP 147.1 KB None None documents None 1077308969057728543667 /docs/en/fact-sheet/MPC7447AFS.pdf 147097 /docs/en/fact-sheet/MPC7447AFS.pdf MPC7447AFS documents N 2004-02-20 MPC7447A Processor Fact Sheet /docs/en/fact-sheet/MPC7447AFS.pdf /docs/en/fact-sheet/MPC7447AFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Jul 20, 2005 736675474163315314 Fact Sheet Y N MPC7447A Processor Fact Sheet 42 1 English This fact sheet is an at-a-glance guide to PowerPC processors 110sJT9R PSP 471.0 KB None None documents None 110sJT9R /docs/en/fact-sheet/PPCSALESFACT.pdf 471000 /docs/en/fact-sheet/PPCSALESFACT.pdf PPCSALESFACT documents N 2003-03-20 PowerPC Processors At-A-Glance /docs/en/fact-sheet/PPCSALESFACT.pdf /docs/en/fact-sheet/PPCSALESFACT.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Feb 17, 2003 736675474163315314 Fact Sheet Y N PowerPC Processors At-A-Glance Package Information Package Information 4 43 3 English Customer presentation on PBGA packages Q1019076364374 PSP 2.8 MB None None documents None Q1019076364374 /docs/en/package-information/PBGAPRES.pdf 2767864 /docs/en/package-information/PBGAPRES.pdf PBGAPRES documents N 2002-04-17 PBGA Packaging Customer Tutorial /docs/en/package-information/PBGAPRES.pdf /docs/en/package-information/PBGAPRES.pdf Package Information N 302435339416912908 2022-12-07 pdf en Mar 14, 2008 302435339416912908 Package Information Y N PBGA Packaging Customer Tutorial 44 1 English Presentation on understanding the TBGA packaging 1060112435258703527038 PSP 9.2 MB None None documents None 1060112435258703527038 /docs/en/package-information/TBGAPRESPKG.pdf 9224392 /docs/en/package-information/TBGAPRESPKG.pdf TBGAPRESPKG documents N 2003-08-05 TBGA Packaging Customer Tutorial /docs/en/package-information/TBGAPRESPKG.pdf /docs/en/package-information/TBGAPRESPKG.pdf Package Information N 302435339416912908 2022-12-07 pdf en Dec 13, 2006 302435339416912908 Package Information Y N TBGA Packaging Customer Tutorial 45 0 English 1133810998429726310768 PSP 2.4 KB None None documents None 1133810998429726310768 /docs/en/package-information/MPC7447AFLOTHERM.zip 2411 /docs/en/package-information/MPC7447AFLOTHERM.zip MPC7447AFLOTHERM documents N 2005-12-05 MPC7447A High-Performance PowerPC Processor Thermal Simulation Report and Models /docs/en/package-information/MPC7447AFLOTHERM.zip /docs/en/package-information/MPC7447AFLOTHERM.zip Package Information N 302435339416912908 2022-12-07 zip en Dec 2, 2005 302435339416912908 Package Information Y N MPC7447A High-Performance PowerPC Processor Thermal Simulation Report and Models 46 1.0 English Customer Tutorial 1089669260087711289826 PSP 1.5 MB None None documents None 1089669260087711289826 /docs/en/package-information/CBGAPRES.pdf 1520000 /docs/en/package-information/CBGAPRES.pdf CBGAPRES documents N 2004-07-12 CBGA Packing Customer Tutorial /docs/en/package-information/CBGAPRES.pdf /docs/en/package-information/CBGAPRES.pdf Package Information N 302435339416912908 2022-12-07 pdf en Jul 2, 2002 302435339416912908 Package Information Y N CBGA Packing Customer Tutorial Product Brief Product Brief 1 47 5 English Product brief for MPC7450 Family C989857326980 PSP 924.2 KB None None documents None C989857326980 /docs/en/product-brief/MPC7450TS.pdf 924185 /docs/en/product-brief/MPC7450TS.pdf MPC7450TS documents N 2001-05-14 MPC7450 RISC Microprocessor Family Product Brief /docs/en/product-brief/MPC7450TS.pdf /docs/en/product-brief/MPC7450TS.pdf Product Brief N 899114358132306053 2022-12-07 pdf en Nov 5, 2004 899114358132306053 Product Brief Y N MPC7450 RISC Microprocessor Family Product Brief Product Numbering Scheme Product Numbering Scheme 1 48 0 English X966631222125 PSP 44.9 KB None None documents None X966631222125 /docs/en/product-numbering-scheme/PPCCPUPNS.gif 44893 /docs/en/product-numbering-scheme/PPCCPUPNS.gif PPCCPUPNS documents N N 2016-10-31 CPU Part Number Scheme for Freescale Semiconductor Processors that Implement the PowerPC Architecture /docs/en/product-numbering-scheme/PPCCPUPNS.gif /docs/en/product-numbering-scheme/PPCCPUPNS.gif Product Numbering Scheme N 554336734861737620 2022-12-07 gif N en Oct 26, 1998 554336734861737620 Product Numbering Scheme Y N CPU Part Number Scheme for Freescale Semiconductor Processors that Implement the PowerPC Architecture Reliability and Quality Information Reliability and Quality Information 1 49 6 English 1133375747534705098805 PSP 676.3 KB None None documents None 1133375747534705098805 /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf 676275 /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf MC7447AQUAL documents N 2005-11-30 MC7447A/B/C Microprocessor MOS-13 HiP7SOI Qualification Report /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf Reliability and Quality Information N 506336137622222552 2022-12-07 pdf en Apr 1, 2005 506336137622222552 Reliability and Quality Information N MC7447A/B/C Microprocessor MOS-13 HiP7SOI Qualification Report Training Presentation Training Presentation 2 50 0 English LinuxWorld 2005 Beijing Keynote presentation focusing on &#8226;Linux in embedded markets, mobile platforms on the PowerPC architecture. Also looks at the Technology convergence and Linux...the equalizer. 1127072221882716416957 PSP 4.5 MB None None documents None 1127072221882716416957 /docs/en/supporting-information/FSL_LINUXWORLD.pdf 4468906 /docs/en/supporting-information/FSL_LINUXWORLD.pdf FSL_LINUXWORLD documents N 2005-09-18 How Linux Will Drive Technology Convergence /docs/en/supporting-information/FSL_LINUXWORLD.pdf /docs/en/supporting-information/FSL_LINUXWORLD.pdf Training Presentation N 501713016990820713 2023-06-18 pdf en Aug 20, 2005 501713016990820713 Training Presentation Y N How Linux Will Drive Technology Convergence 51 1 English Motorola PowerPC Processor Summary D978901766911 PSP 13.7 KB None None documents None D978901766911 /docs/en/supporting-information/PPCCPUSUMM.pdf 13696 /docs/en/supporting-information/PPCCPUSUMM.pdf PPCCPUSUMM documents N N 2016-10-31 Freescale Semiconductor Host and Integrated Processor Summary /docs/en/supporting-information/PPCCPUSUMM.pdf /docs/en/supporting-information/PPCCPUSUMM.pdf Training Presentation N 501713016990820713 2022-12-07 pdf N en Feb 10, 2003 501713016990820713 Training Presentation Y N Freescale Semiconductor Host and Integrated Processor Summary Supporting Information Supporting Information 1 52 18 English S987785363960 PSP 19.9 KB None None documents None S987785363960 /docs/en/supporting-information/PPCPVR.pdf 19904 /docs/en/supporting-information/PPCPVR.pdf PPCPVR documents N 2001-04-20 NXP<sup>&#174;</sup> Semiconductors Host Processor Version Register Settings /docs/en/supporting-information/PPCPVR.pdf /docs/en/supporting-information/PPCPVR.pdf Supporting Information N 371282830530968666 2022-12-07 pdf en Jul 11, 2005 371282830530968666 Supporting Information Y N NXP<sup>&#174;</sup> Semiconductors Host Processor Version Register Settings White Paper White Paper 4 53 1.1 English White Paper 10m8ny9d PSP 158.3 KB None None documents None 10m8ny9d /docs/en/white-paper/MPC74XXMBUSWP_D.pdf 158335 /docs/en/white-paper/MPC74XXMBUSWP_D.pdf MPC74XXMBUSWP documents N 2003-01-23 Memory Bus Throughput of the MPC74xx /docs/en/white-paper/MPC74XXMBUSWP_D.pdf /docs/en/white-paper/MPC74XXMBUSWP_D.pdf White Paper N 918633085541740938 2022-12-07 pdf en Nov 24, 2003 918633085541740938 White Paper Y N Memory Bus Throughput of the MPC74xx 54 0 English Examines performance enhancement of G4 series devices. X989422113911 PSP 102.7 KB None None documents None X989422113911 /docs/en/white-paper/G4WP.pdf 102666 /docs/en/white-paper/G4WP.pdf G4WP documents N 2001-05-09 G4 Architecture White Paper /docs/en/white-paper/G4WP.pdf /docs/en/white-paper/G4WP.pdf White Paper N 918633085541740938 2022-12-07 pdf en Jan 23, 2001 918633085541740938 White Paper Y N G4 Architecture White Paper 55 0 English White Paper D1020288664177 PSP 175.3 KB None None documents None D1020288664177 /docs/en/white-paper/MPC603THERMALWP.pdf 175346 /docs/en/white-paper/MPC603THERMALWP.pdf MPC603THERMALWP documents N N 2016-10-31 Thermal Management of a C4/Ceramic-Ball-Grid Array: The Motorola PowerPC 603 and PowerPC 604 RISC Microprocessors /docs/en/white-paper/MPC603THERMALWP.pdf /docs/en/white-paper/MPC603THERMALWP.pdf White Paper N 918633085541740938 2022-12-07 pdf N en May 1, 1996 918633085541740938 White Paper Y N Thermal Management of a C4/Ceramic-Ball-Grid Array: The Motorola PowerPC 603 and PowerPC 604 RISC Microprocessors 56 0 English White Paper P1020288652255 PSP 210.0 KB None None documents None P1020288652255 /docs/en/white-paper/MPC603OVERALLWP.pdf 210032 /docs/en/white-paper/MPC603OVERALLWP.pdf MPC603OVERALLWP documents N N 2016-10-31 Motorola PowerPC 603 and PowerPC 604 RISC Microprocessor: The C4/Ceramic-Ball-Grid Array Interconnect Technology /docs/en/white-paper/MPC603OVERALLWP.pdf /docs/en/white-paper/MPC603OVERALLWP.pdf White Paper N 918633085541740938 2022-12-07 pdf N en May 1, 1996 918633085541740938 White Paper Y N Motorola PowerPC 603 and PowerPC 604 RISC Microprocessor: The C4/Ceramic-Ball-Grid Array Interconnect Technology false 0 MPC7447A downloads en true 1 Y PSP Application Note 28 /docs/en/application-note/AN2265.pdf 2023-10-11 1438291205675697718255 PSP 11 Sep 18, 2023 Application Note This application note provides guidelines for the handling and assembly of NXP land grid array (LGA), sometimes referred to as laminated quad flat no lead (QFN), packages during printed‑circuit board (PCB) assembly. None /docs/en/application-note/AN2265.pdf English documents 1502896 None 645036621402383989 2023-10-11 N /docs/en/application-note/AN2265.pdf AN2265, Assembly Guidelines for Land Grid Array (LGA) Package Application Note /docs/en/application-note/AN2265.pdf documents 645036621402383989 Application Note N en None Y pdf 3 N N AN2265, Assembly Guidelines for Land Grid Array (LGA) Package Application Note 1.5 MB AN2265 N 1438291205675697718255 /docs/en/application-note/AN2114.pdf 2003-06-05 11LMSRbQ PSP 12 Apr 5, 2013 Application Note This document compares the performance of fast Fourier transform (FFT) with and without AltiVec&#8482; technology to demonstrate how mathematically-intensive code can be adapted for use with AltiVec and how AltiVec increases code performance. None /docs/en/application-note/AN2114.pdf English documents 232893 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2114.pdf Complex Fixed-Point Fast Fourier Transform Optimization for Altivec(TM) /docs/en/application-note/AN2114.pdf documents 645036621402383989 Application Note N en None pdf 4 N N Complex Fixed-Point Fast Fourier Transform Optimization for Altivec(TM) 232.9 KB AN2114 N 11LMSRbQ /docs/en/application-note/AN2203.pdf 2001-11-07 L1005192811517 PSP 13 Jun 30, 2007 Application Note This document provides information to programmers to write optimal code for the MPC750, MPC7400, and MPC7450 microprocessors that implement the PowerPC architecture, with particular emphasis on the MPC7450, which is significantly different from previous designs. The target audience includes performance-oriented writers of both compilers and hand-coded assembly. None /docs/en/application-note/AN2203.pdf English documents 467384 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2203.pdf MPC7450 RISC Microprocessor Family Software Optimization Guide /docs/en/application-note/AN2203.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N MPC7450 RISC Microprocessor Family Software Optimization Guide 467.4 KB AN2203 N L1005192811517 /docs/en/application-note/AN2660.pdf 2004-04-12 1081798851540716709767 PSP 14 Jan 11, 2007 Application Note This application note describes the process of selecting the correct memory size value for various Sandpoint PCI mezzanine card (PMC) processors. This information also applies to the NXP PCI mezzanine card (MPMC), which is the same as the PMC. None /docs/en/application-note/AN2660.pdf English documents 448179 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2660.pdf Sandpoint Linux Memory Size Considerations /docs/en/application-note/AN2660.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Sandpoint Linux Memory Size Considerations 448.2 KB AN2660 N 1081798851540716709767 /docs/en/application-note/AN2656.pdf 2004-03-24 1080155855913723480746 PSP 15 Jan 11, 2007 Application Note This App Note describes how to design a platform with a common footprint for the MPC7441, MPC7445, MPC7447, MPC7447A and MPC7448. None /docs/en/application-note/AN2656.pdf English documents 484011 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2656.pdf Common Footprint for the MPC7441, MPC7445, MPC7447, MPC7447A, and MPC7448 /docs/en/application-note/AN2656.pdf documents 645036621402383989 Application Note N en None Y pdf 4 N Common Footprint for the MPC7441, MPC7445, MPC7447, MPC7447A, and MPC7448 484.0 KB AN2656 N 1080155855913723480746 /docs/en/application-note/AN2540.pdf 2003-07-03 1057245101474727053067 PSP 16 Nov 8, 2006 Application Note The architecture for the PowerPC&#8482; instruction set provides two types of synchronizing instructions:&#13;&#10;* Context-synchronizing&#13;&#10;* Execution-synchronizing &#13;&#10;This application note presents a high-level definition and description of each type of synchronizing instruction. None /docs/en/application-note/AN2540.pdf English documents 451663 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2540.pdf Synchronizing Instructions for PowerPC(TM) Instruction Set Architecture /docs/en/application-note/AN2540.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Synchronizing Instructions for PowerPC(TM) Instruction Set Architecture 451.7 KB AN2540 N 1057245101474727053067 /docs/en/application-note/AN2145.pdf 2001-07-11 F994873321629 PSP 17 Oct 19, 2006 Application Note This document describes porting Montavista's Hardhat Linux from a sandpoint 2 platform with the MPC8240PMC, the MPC755PMC, or the MPC7400PMC to the PowerPC MPC7450/MPC7451. It explains how to set up the development environment and how to compile, load, and run the resultant Hardhat Linux on the sandpoint MPC7450 platform. None /docs/en/application-note/AN2145.pdf English documents 580033 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2145.pdf Porting Linux to the Power Architeecture MPC7451 /docs/en/application-note/AN2145.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N Porting Linux to the Power Architeecture MPC7451 580.0 KB AN2145 N F994873321629 /docs/en/application-note/AN2077.pdf 2003-05-29 11Jmthmt PSP 18 Oct 19, 2006 Application Note This application note describes the generally recommended connections for new designs based on Motorola PowerPC&#8482; processors, as well as integrated embedded processors, and system controller logic for them. None /docs/en/application-note/AN2077.pdf English documents 546230 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2077.pdf Design Checklist for NXP<sup>&#174;</sup> Semiconductors PowerPC(TM) Microprocessors /docs/en/application-note/AN2077.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N Design Checklist for NXP<sup>&#174;</sup> Semiconductors PowerPC(TM) Microprocessors 546.2 KB AN2077 N 11Jmthmt /docs/en/application-note/AN2097.pdf 2001-01-17 Q979795400002 PSP 19 Oct 11, 2006 Application Note This document details differences in implementation of the PowerPC&#8482; 60x Bus with the&#13;&#10;MPC750, MPC7400, MPC7410, and MPC7450 PowerPC microprocessors. None /docs/en/application-note/AN2097.pdf English documents 488267 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2097.pdf PowerPC(TM) 60X Bus Implementation Differences /docs/en/application-note/AN2097.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N PowerPC(TM) 60X Bus Implementation Differences 488.3 KB AN2097 N Q979795400002 /docs/en/application-note/AN2180.pdf 2001-08-07 W997218090072 PSP 20 Jul 25, 2006 Application Note This application note describes the instruction and data access latencies of the L1, L2, and L3 caches of the MPC7450 microprocessor family. None /docs/en/application-note/AN2180.pdf English documents 475266 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2180.pdf Cache Latencies of the 7451 /docs/en/application-note/AN2180.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N Cache Latencies of the 7451 475.3 KB AN2180 N W997218090072 /docs/en/application-note/AN2581.pdf 2003-10-10 1065808341014719640361 PSP 21 Jul 11, 2006 Application Note This application note addresses the process and methodology of porting Altivec-enabled software to a multiprocessing operating environment. None /docs/en/application-note/AN2581.pdf English documents 572116 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2581.pdf Altivec Performance Enhancement in a Multiprocessing Environment /docs/en/application-note/AN2581.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Altivec Performance Enhancement in a Multiprocessing Environment 572.1 KB AN2581 N 1065808341014719640361 /docs/en/application-note/AN2796.pdf 2004-10-13 1097704010444713028838 PSP 22 May 22, 2006 Application Note This application note describes the process of setting up the on-chip table lookaside buffers (TLBs) for translation, without using page tables, for classic PowerPC processors with multiple areas of memory mapped one-to-one. The application note applies only to MPC745x and MPC744x (with software table search enabled in non-extended mode). None /docs/en/application-note/AN2796.pdf English documents 463033 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2796.pdf TLB Translation Setup for MPC745x and MPC744x in Non-Extended Mode /docs/en/application-note/AN2796.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N TLB Translation Setup for MPC745x and MPC744x in Non-Extended Mode 463.0 KB AN2796 N 1097704010444713028838 /docs/en/application-note/AN3057.pdf 2006-01-26 1138307830722723625245 PSP 23 Jan 26, 2006 Application Note This paper presents an efficient method to implement the widely used RSA public-key cryptography with AltiVec&#8482;, an NXP&#8217;s SIMD extension to PowerPC&#174; architecture, and summarizes the advantages of dual-core processors. None /docs/en/application-note/AN3057.pdf English documents 534183 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3057.pdf Solving Sequential Problems in Parallel - An SIMD Solution to RSA Cryptography /docs/en/application-note/AN3057.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Solving Sequential Problems in Parallel - An SIMD Solution to RSA Cryptography 534.2 KB AN3057 N 1138307830722723625245 /docs/en/application-note/AN2926.pdf 2006-01-16 1137448243202718777832 PSP 24 Jan 16, 2006 Application Note This application note proposes an innovative method of postponing data dependency to calculate CRC. Although this method does not reduce the total number of operations involved in calculating CRC, it greatly improves the CPUs IPC (instructions per cycle) and, as a result, achieves higher performance. None /docs/en/application-note/AN2926.pdf English documents 569284 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2926.pdf AltiVec<sup>&#174;</sup> Solutions to Sequential Problems: Calculating CRC with Scalable Congruent Equivalence Compression /docs/en/application-note/AN2926.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AltiVec<sup>&#174;</sup> Solutions to Sequential Problems: Calculating CRC with Scalable Congruent Equivalence Compression 569.3 KB AN2926 N 1137448243202718777832 /docs/en/application-note/AN2929.pdf 2005-11-03 1131042709163706112833 PSP 25 Nov 3, 2005 Application Note This application note applies to the MPC7447A and MPC7448 processors embedded on an HPC II platform. It describes the implementation of an Automatic Thermal Monitoring System (ATMS) that can be used to automatically control the processor core temperature. None /docs/en/application-note/AN2929.pdf English documents 221266 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2929.pdf Automatic Thermal Monitoring System on HPC II /docs/en/application-note/AN2929.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Automatic Thermal Monitoring System on HPC II 221.3 KB AN2929 N 1131042709163706112833 /docs/en/application-note/AN2808.pdf 2005-05-10 1115651985486697454831 PSP 26 Jun 22, 2005 Application Note application note None /docs/en/application-note/AN2808.pdf English documents 658549 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2808.pdf Migration from IBM 750FX to MPC7447A /docs/en/application-note/AN2808.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Migration from IBM 750FX to MPC7447A 658.5 KB AN2808 N 1115651985486697454831 /docs/en/application-note/AN2809.pdf 2005-01-03 1104771998221735368175 PSP 27 Jun 22, 2005 Application Note application note None /docs/en/application-note/AN2809.pdf English documents 781906 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2809.pdf Migration from IBM 750CX/CXE to MPC7447A /docs/en/application-note/AN2809.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Migration from IBM 750CX/CXE to MPC7447A 781.9 KB AN2809 N 1104771998221735368175 /docs/en/application-note/AN2797.pdf 2004-10-26 1098823355574723132885 PSP 28 Jun 22, 2005 Application Note Migrating from IBM 750GX to MPC7447A None /docs/en/application-note/AN2797.pdf English documents 632656 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2797.pdf Migrating from IBM 750GX to MPC7447A /docs/en/application-note/AN2797.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N Migrating from IBM 750GX to MPC7447A 632.7 KB AN2797 N 1098823355574723132885 /docs/en/application-note/AN2918.pdf 2005-06-08 1118277355326709130683 PSP 29 Jun 8, 2005 Application Note application note None /docs/en/application-note/AN2918.pdf English documents 430662 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2918.pdf Correcting Single-bit Errors with CRC8 in ATM Cell Headers /docs/en/application-note/AN2918.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Correcting Single-bit Errors with CRC8 in ATM Cell Headers 430.7 KB AN2918 N 1118277355326709130683 /docs/en/application-note/AN2747.pdf 2004-08-24 1093306131075713909017 PSP 30 Sep 2, 2004 Application Note Application note None /docs/en/application-note/AN2747.pdf English documents 1037572 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2747.pdf Power Supply Design for Power Architecture(TM) Processors /docs/en/application-note/AN2747.pdf documents 645036621402383989 Application Note N en None Y pdf 1.1 N Power Supply Design for Power Architecture(TM) Processors 1.0 MB AN2747 N 1093306131075713909017 /docs/en/application-note/AN2650.pdf 2004-01-26 1075136407262685790270 PSP 31 Mar 1, 2004 Application Note application note None /docs/en/application-note/AN2650.pdf English documents 986081 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2650.pdf Adding New PowerPC Processors and Bridge Chips to Linux /docs/en/application-note/AN2650.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N Adding New PowerPC Processors and Bridge Chips to Linux 986.1 KB AN2650 N 1075136407262685790270 /docs/en/application-note/AN2323.pdf 2002-08-08 V1028836470865 PSP 32 Nov 11, 2003 Application Note I/O power consumption for the PowerPC&#8482; MPC7455 is not explicitly listed in the current MPC7455 Hardware Specification; however, it is suggested that a typical value is less than 20% of VDD power. None /docs/en/application-note/AN2323.pdf English documents 540766 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2323.pdf PowerPC(TM) MPC7455 I/O Power Evaluation /docs/en/application-note/AN2323.pdf documents 645036621402383989 Application Note N en None Y pdf 0.2 N PowerPC(TM) MPC7455 I/O Power Evaluation 540.8 KB AN2323 N V1028836470865 /docs/en/application-note/AN1809.pdf 2000-08-17 V966579220043 PSP 33 Nov 11, 2003 Application Note Application Note None /docs/en/application-note/AN1809.pdf English documents 1870951 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1809.pdf Minimal Boot Sequence for Executing Compiled C Programs on PowerPC(TM) Devices /docs/en/application-note/AN1809.pdf documents 645036621402383989 Application Note N en None Y pdf 1.2 N Minimal Boot Sequence for Executing Compiled C Programs on PowerPC(TM) Devices 1.9 MB AN1809 N V966579220043 /docs/en/application-note/AN2491.pdf 2003-09-30 1064950886097724682016 PSP 34 Sep 30, 2003 Application Note Simplified Mnemonics for PowerPC Instructions. None /docs/en/application-note/AN2491.pdf English documents 1379878 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2491.pdf Simplified Mnemonics for PowerPC Instructions /docs/en/application-note/AN2491.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Simplified Mnemonics for PowerPC Instructions 1.4 MB AN2491 N 1064950886097724682016 /docs/en/application-note/AN2161.pdf 2001-06-21 U993136546214 PSP 35 Aug 4, 2003 Application Note The MPX bus of many PowerPC&#8482; processors (for example, the MPC7400, MPC7410 and PC7450/MPC7451) is a split transaction bus that provides for independent arbitration and operation of the address and data buses. None /docs/en/application-note/AN2161.pdf English documents 337629 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2161.pdf Outstanding Data Tenures on the MPX Bus /docs/en/application-note/AN2161.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N Outstanding Data Tenures on the MPX Bus 337.6 KB AN2161 N U993136546214 /docs/en/application-note/AN2273.pdf 2002-04-05 A1018044971762 PSP 36 Jun 10, 2003 Application Note This document describes the steps necessary to configure a Linux DHCP/BOOTP server for&#13;&#10;use with the MontaVista Hard Hat Linux&#8482; CDK, V2.0, running on either a Sandpoint or MVP&#13;&#10;evaluation board client. None /docs/en/application-note/AN2273.pdf English documents 2003892 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2273.pdf Building an NFS DHCP/BOOTP Server for Use with Sandpoint and MVP Linux /docs/en/application-note/AN2273.pdf documents 645036621402383989 Application Note N en None Y pdf 1.1 N Building an NFS DHCP/BOOTP Server for Use with Sandpoint and MVP Linux 2.0 MB AN2273 N A1018044971762 /docs/en/application-note/AN2106.pdf 2001-01-17 Q979795410090 PSP 37 Jun 5, 2003 Application Note This document details differences in the implementation of the PowerPC&#8482; MPX Bus with the&#13;&#10;MPC7400, MPC7410, and the MPC7450 microprocessors. None /docs/en/application-note/AN2106.pdf English documents 325992 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2106.pdf PowerPC(TM) MPX Bus Implementation Differences /docs/en/application-note/AN2106.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N PowerPC(TM) MPX Bus Implementation Differences 326.0 KB AN2106 N Q979795410090 /docs/en/application-note/AN1795.pdf 2000-08-17 S966579205558 PSP 38 Jun 5, 2003 Application Note Application Note None /docs/en/application-note/AN1795.pdf English documents 379656 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1795.pdf Designing PowerPC(TM) MPC7400 Systems /docs/en/application-note/AN1795.pdf documents 645036621402383989 Application Note N en None Y pdf 1.1 N Designing PowerPC(TM) MPC7400 Systems 379.7 KB AN1795 N S966579205558 Application Note Software 1 /docs/en/application-note-software/AN2436.pdf 2003-08-05 1060117990677721773605 PSP 39 Sep 21, 2006 Application Note Software Power specifications are important to customers, who use the specifications to design their power supplies and thermal solutions. NXP is a member of the embedded microprocessor benchmark consortium (EEMBC), and uses EEMBC benchmarks for measuring power. None /docs/en/application-note-software/AN2436.pdf English documents 578164 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2436.pdf Specifying Power Consumption /docs/en/application-note-software/AN2436.pdf documents 789425793691620447 Application Note Software N en None D pdf 2 N Specifying Power Consumption 578.2 KB AN2436 N 1060117990677721773605 Data Sheet 3 /docs/en/data-sheet/MPC7447AEC.pdf 2004-02-27 1077912864929712052640 PSP 1 Jan 30, 2006 Data Sheet This document is primarily concerned with the PowerPC MPC7447A; however, unless otherwise noted, all information here also applies to the MPC7447. The MPC7447A is an implementation of the PowerPC microprocessor family of reduced instruction set computer (RISC) microprocessors. This document describes pertinent electrical and physical characteristics of the MPC7447A. For functional characteristics of the processor, refer to the MPC7450 RISC Microprocessor Family Reference Manual. None /docs/en/data-sheet/MPC7447AEC.pdf English documents 1102884 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MPC7447AEC.pdf MPC7447A RISC Microprocessor Hardware Specifications /docs/en/data-sheet/MPC7447AEC.pdf documents 980000996212993340 Data Sheet N en None Y pdf 5 N MPC7447A RISC Microprocessor Hardware Specifications 1.1 MB MPC7447AEC N 1077912864929712052640 /docs/en/data-sheet/MPC7447AECS01AD.pdf 2004-09-24 1096052238912722654897 PSP 2 Sep 23, 2005 Data Sheet This document describes part-number-specific changes to recommended operating conditions and revised electrical specifications, as applicable, from those described in the general MPC7447A RISC Microprocessor Hardware Specifications. The MPC7447A is a PowerPC microprocessor. None /docs/en/data-sheet/MPC7447AECS01AD.pdf English documents 102394 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MPC7447AECS01AD.pdf MPC7447A Hardware Specification Addendum for the MC7447AxxnnnnNx Series /docs/en/data-sheet/MPC7447AECS01AD.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3 N MPC7447A Hardware Specification Addendum for the MC7447AxxnnnnNx Series 102.4 KB MPC7447AECS01AD N 1096052238912722654897 /docs/en/data-sheet/MPC7447AECS02AD.pdf 2004-09-27 1096307200438695142647 PSP 3 Oct 19, 2004 Data Sheet Hardware Specification Addendum None /docs/en/data-sheet/MPC7447AECS02AD.pdf English documents 69905 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MPC7447AECS02AD.pdf MPC7447A Hardware Specification Addendum for the MC7447ATxxnnnnNx Series /docs/en/data-sheet/MPC7447AECS02AD.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1 N MPC7447A Hardware Specification Addendum for the MC7447ATxxnnnnNx Series 69.9 KB MPC7447AECS02AD N 1096307200438695142647 Errata 1 /docs/en/errata/MPC7447ACE.pdf 2004-02-24 1077669704418706647854 PSP 40 Oct 26, 2007 Errata This document details all known silicon errata for the MPC7447A. The MPC7447A is a PowerPC microprocessor. The MPC7450 has the same functionality as the MPC7447A and any differences are detailed in the document. None /docs/en/errata/MPC7447ACE.pdf English documents 599117 None 155452329886410597 2022-12-07 /docs/en/errata/MPC7447ACE.pdf MPC7447A Chip Errata /docs/en/errata/MPC7447ACE.pdf documents 155452329886410597 Errata N en None Y pdf 9 N MPC7447A Chip Errata 599.1 KB MPC7447ACE N 1077669704418706647854 Fact Sheet 2 /docs/en/fact-sheet/MPC7447AFS.pdf 2004-02-20 1077308969057728543667 PSP 41 Jul 20, 2005 Fact Sheet The MPC7447A is a high-performance,&#13;&#10;low-power PowerPC processor with&#13;&#10;enhanced power management capabilities. Key&#13;&#10;architectural features include 512 KB of on-chip&#13;&#10;L2 cache, a 64-bit bus interface and a full&#13;&#10;128-bit implementation of Our AltiVec(tm)&#13;&#10;technology. MPC7447A processors are ideal for&#13;&#10;leading-edge computing, embedded network&#13;&#10;control and signal processing applications. None /docs/en/fact-sheet/MPC7447AFS.pdf English documents 147097 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/MPC7447AFS.pdf MPC7447A Processor Fact Sheet /docs/en/fact-sheet/MPC7447AFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 4 N MPC7447A Processor Fact Sheet 147.1 KB MPC7447AFS N 1077308969057728543667 /docs/en/fact-sheet/PPCSALESFACT.pdf 2003-03-20 110sJT9R PSP 42 Feb 17, 2003 Fact Sheet This fact sheet is an at-a-glance guide to PowerPC processors None /docs/en/fact-sheet/PPCSALESFACT.pdf English documents 471000 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/PPCSALESFACT.pdf PowerPC Processors At-A-Glance /docs/en/fact-sheet/PPCSALESFACT.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N PowerPC Processors At-A-Glance 471.0 KB PPCSALESFACT N 110sJT9R Package Information 4 /docs/en/package-information/PBGAPRES.pdf 2002-04-17 Q1019076364374 PSP 43 Mar 14, 2008 Package Information Customer presentation on PBGA packages None /docs/en/package-information/PBGAPRES.pdf English documents 2767864 None 302435339416912908 2022-12-07 /docs/en/package-information/PBGAPRES.pdf PBGA Packaging Customer Tutorial /docs/en/package-information/PBGAPRES.pdf documents 302435339416912908 Package Information N en None Y pdf 3 N PBGA Packaging Customer Tutorial 2.8 MB PBGAPRES N Q1019076364374 /docs/en/package-information/TBGAPRESPKG.pdf 2003-08-05 1060112435258703527038 PSP 44 Dec 13, 2006 Package Information Presentation on understanding the TBGA packaging None /docs/en/package-information/TBGAPRESPKG.pdf English documents 9224392 None 302435339416912908 2022-12-07 /docs/en/package-information/TBGAPRESPKG.pdf TBGA Packaging Customer Tutorial /docs/en/package-information/TBGAPRESPKG.pdf documents 302435339416912908 Package Information N en None Y pdf 1 N TBGA Packaging Customer Tutorial 9.2 MB TBGAPRESPKG N 1060112435258703527038 /docs/en/package-information/MPC7447AFLOTHERM.zip 2005-12-05 1133810998429726310768 PSP 45 Dec 2, 2005 Package Information None /docs/en/package-information/MPC7447AFLOTHERM.zip English documents 2411 None 302435339416912908 2022-12-07 /docs/en/package-information/MPC7447AFLOTHERM.zip MPC7447A High-Performance PowerPC Processor Thermal Simulation Report and Models /docs/en/package-information/MPC7447AFLOTHERM.zip documents 302435339416912908 Package Information N en None Y zip 0 N MPC7447A High-Performance PowerPC Processor Thermal Simulation Report and Models 2.4 KB MPC7447AFLOTHERM N 1133810998429726310768 /docs/en/package-information/CBGAPRES.pdf 2004-07-12 1089669260087711289826 PSP 46 Jul 2, 2002 Package Information Customer Tutorial None /docs/en/package-information/CBGAPRES.pdf English documents 1520000 None 302435339416912908 2022-12-07 /docs/en/package-information/CBGAPRES.pdf CBGA Packing Customer Tutorial /docs/en/package-information/CBGAPRES.pdf documents 302435339416912908 Package Information N en None Y pdf 1.0 N CBGA Packing Customer Tutorial 1.5 MB CBGAPRES N 1089669260087711289826 Product Brief 1 /docs/en/product-brief/MPC7450TS.pdf 2001-05-14 C989857326980 PSP 47 Nov 5, 2004 Product Brief Product brief for MPC7450 Family None /docs/en/product-brief/MPC7450TS.pdf English documents 924185 None 899114358132306053 2022-12-07 /docs/en/product-brief/MPC7450TS.pdf MPC7450 RISC Microprocessor Family Product Brief /docs/en/product-brief/MPC7450TS.pdf documents 899114358132306053 Product Brief N en None Y pdf 5 N MPC7450 RISC Microprocessor Family Product Brief 924.2 KB MPC7450TS N C989857326980 Product Numbering Scheme 1 /docs/en/product-numbering-scheme/PPCCPUPNS.gif 2016-10-31 X966631222125 PSP 48 Oct 26, 1998 Product Numbering Scheme None /docs/en/product-numbering-scheme/PPCCPUPNS.gif English documents 44893 None 554336734861737620 2022-12-07 N /docs/en/product-numbering-scheme/PPCCPUPNS.gif CPU Part Number Scheme for Freescale Semiconductor Processors that Implement the PowerPC Architecture /docs/en/product-numbering-scheme/PPCCPUPNS.gif documents 554336734861737620 Product Numbering Scheme N en None Y gif 0 N N CPU Part Number Scheme for Freescale Semiconductor Processors that Implement the PowerPC Architecture 44.9 KB PPCCPUPNS N X966631222125 Reference Manual 7 /docs/en/reference-manual/MPC7450UMAD.pdf 2001-08-13 M997738588898 PSP 4 Jul 8, 2013 Reference Manual MPC7450UMAD: This errata describes corrections to the MPC7450 RISC Microprocessor Family Reference Manual, Rev.5. The MPC7450 is a PowerPC&#174; microprocessor built on Power Architecture&#174; technology. None /docs/en/reference-manual/MPC7450UMAD.pdf English documents 131855 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/MPC7450UMAD.pdf MPC7450UMAD, Errata to the MPC7450 RISC Microprocessor Family Reference Manual, Rev. 5 - Reference Manual Addendum /docs/en/reference-manual/MPC7450UMAD.pdf documents 500633505221135046 Reference Manual N en None Y pdf 5.3 N N MPC7450UMAD, Errata to the MPC7450 RISC Microprocessor Family Reference Manual, Rev. 5 - Reference Manual Addendum 131.9 KB MPC7450UMAD N M997738588898 /docs/en/reference-manual/ALTIVECPEM.pdf 2000-08-17 I966578762196 PSP 5 Apr 17, 2006 Reference Manual The primary objective of this manual is to help programmers provide software that is compatible with processors that implement the PowerPC&#8482; architecture and the AltiVec&#8482; technology. This book describes how the AltiVec technology relates to the 32-bit portions of the PowerPC architecture. None /docs/en/reference-manual/ALTIVECPEM.pdf English documents 2571819 None 500633505221135046 2022-12-07 /docs/en/reference-manual/ALTIVECPEM.pdf AltiVec<sup>&#174;</sup> Technology Programming Environments Manual /docs/en/reference-manual/ALTIVECPEM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 3 N AltiVec<sup>&#174;</sup> Technology Programming Environments Manual 2.6 MB ALTIVECPEM N I966578762196 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 2016-10-31 E966578690432 PSP 6 Oct 17, 2005 Reference Manual Programming Environments Manual for 32-Bit Implementations of the Power Architecture. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf English documents 6125455 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=MPCFPE32B Programming Environments Manual for 32-Bit Implementations of the Power Architecture /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3 Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 6.1 MB MPCFPE32B N E966578690432 /docs/en/reference-manual/MPC7450UM.pdf 2001-05-08 D989356432093 PSP 7 Jan 27, 2005 Reference Manual The MPC7450 implements the PowerPC architecture and is a reduced instruction set computer (RISC) microprocessor. The MPC7450 consists of a processor core, 32-Kbyte separate L1 instruction and data caches, a 256-Kbyte L2 cache (512-Kbyte for MPC7457 and 1 Mbyte for the MPC7448), and an internal L3 controller with tags that support a glueless backside L3 cache through a dedicated high-bandwidth interface. The MPC7441, MPC7445, MPC7447, MPC7447A, and MPC7448 do not support the L3 cache and the L3 interface. T None /docs/en/reference-manual/MPC7450UM.pdf English documents 7167550 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC7450UM.pdf MPC7450 RISC Microprocessor Family Reference Manual /docs/en/reference-manual/MPC7450UM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 5 N MPC7450 RISC Microprocessor Family Reference Manual 7.2 MB MPC7450UM N D989356432093 /docs/en/reference-manual/MPC60XBUSRM.pdf 2001-07-23 A995913155484 PSP 8 Jan 14, 2004 Reference Manual User's Manual None /docs/en/reference-manual/MPC60XBUSRM.pdf English documents 3416811 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MPC60XBUSRM.pdf The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture /docs/en/reference-manual/MPC60XBUSRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.1 N The Bus Interface for 32-Bit Microprocessors that Implement the PowerPC Architecture 3.4 MB MPC60XBUSRM N A995913155484 /docs/en/reference-manual/ALTIVECPIM.pdf 2000-08-17 C966578768976 PSP 9 Jun 1, 1999 Reference Manual ALTIVECPIM AltiVec Technology Programming Interface Manual None /docs/en/reference-manual/ALTIVECPIM.pdf English documents 9602187 None 500633505221135046 2022-12-07 /docs/en/reference-manual/ALTIVECPIM.pdf AltiVec<sup>&#174;</sup> Technology Programming Interface Manual /docs/en/reference-manual/ALTIVECPIM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0 N AltiVec<sup>&#174;</sup> Technology Programming Interface Manual 9.6 MB ALTIVECPIM N C966578768976 /docs/en/reference-manual/ALTIVECPEMAD.pdf 2000-08-17 O966578765582 PSP 10 Mar 1, 1999 Reference Manual ALTIVECPEMAD AltiVec Technology Programming Environments Manual Errata. None /docs/en/reference-manual/ALTIVECPEMAD.pdf English documents 263102 None 500633505221135046 2022-12-07 /docs/en/reference-manual/ALTIVECPEMAD.pdf AltiVec<sup>&#174;</sup> Technology Programming Environments Manual Errata /docs/en/reference-manual/ALTIVECPEMAD.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0 N AltiVec<sup>&#174;</sup> Technology Programming Environments Manual Errata 263.1 KB ALTIVECPEMAD N O966578765582 Reliability and Quality Information 1 /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf 2005-11-30 1133375747534705098805 PSP 49 Apr 1, 2005 Reliability and Quality Information None /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf English documents 676275 None 506336137622222552 2022-12-07 /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf MC7447A/B/C Microprocessor MOS-13 HiP7SOI Qualification Report /docs/en/reliability-and-quality-information/MC7447AQUAL.pdf documents 506336137622222552 Reliability and Quality Information N en None pdf 6 N MC7447A/B/C Microprocessor MOS-13 HiP7SOI Qualification Report 676.3 KB MC7447AQUAL N 1133375747534705098805 Supporting Information 1 /docs/en/supporting-information/PPCPVR.pdf 2001-04-20 S987785363960 PSP 52 Jul 11, 2005 Supporting Information None /docs/en/supporting-information/PPCPVR.pdf English documents 19904 None 371282830530968666 2022-12-07 /docs/en/supporting-information/PPCPVR.pdf NXP<sup>&#174;</sup> Semiconductors Host Processor Version Register Settings /docs/en/supporting-information/PPCPVR.pdf documents 371282830530968666 Supporting Information N en None Y pdf 18 N NXP<sup>&#174;</sup> Semiconductors Host Processor Version Register Settings 19.9 KB PPCPVR N S987785363960 Training Presentation 2 /docs/en/supporting-information/FSL_LINUXWORLD.pdf 2005-09-18 1127072221882716416957 PSP 50 Aug 20, 2005 Training Presentation LinuxWorld 2005 Beijing Keynote presentation focusing on &#8226;Linux in embedded markets, mobile platforms on the PowerPC architecture. Also looks at the Technology convergence and Linux...the equalizer. None /docs/en/supporting-information/FSL_LINUXWORLD.pdf English documents 4468906 None 501713016990820713 2023-06-18 /docs/en/supporting-information/FSL_LINUXWORLD.pdf How Linux Will Drive Technology Convergence /docs/en/supporting-information/FSL_LINUXWORLD.pdf documents 501713016990820713 Training Presentation N en None Y pdf 0 N How Linux Will Drive Technology Convergence 4.5 MB FSL_LINUXWORLD N 1127072221882716416957 /docs/en/supporting-information/PPCCPUSUMM.pdf 2016-10-31 D978901766911 PSP 51 Feb 10, 2003 Training Presentation Motorola PowerPC Processor Summary None /docs/en/supporting-information/PPCCPUSUMM.pdf English documents 13696 None 501713016990820713 2022-12-07 N /docs/en/supporting-information/PPCCPUSUMM.pdf Freescale Semiconductor Host and Integrated Processor Summary /docs/en/supporting-information/PPCCPUSUMM.pdf documents 501713016990820713 Training Presentation N en None Y pdf 1 N N Freescale Semiconductor Host and Integrated Processor Summary 13.7 KB PPCCPUSUMM N D978901766911 White Paper 4 /docs/en/white-paper/MPC74XXMBUSWP_D.pdf 2003-01-23 10m8ny9d PSP 53 Nov 24, 2003 White Paper White Paper None /docs/en/white-paper/MPC74XXMBUSWP_D.pdf English documents 158335 None 918633085541740938 2022-12-07 /docs/en/white-paper/MPC74XXMBUSWP_D.pdf Memory Bus Throughput of the MPC74xx /docs/en/white-paper/MPC74XXMBUSWP_D.pdf documents 918633085541740938 White Paper N en None Y pdf 1.1 N Memory Bus Throughput of the MPC74xx 158.3 KB MPC74XXMBUSWP N 10m8ny9d /docs/en/white-paper/G4WP.pdf 2001-05-09 X989422113911 PSP 54 Jan 23, 2001 White Paper Examines performance enhancement of G4 series devices. None /docs/en/white-paper/G4WP.pdf English documents 102666 None 918633085541740938 2022-12-07 /docs/en/white-paper/G4WP.pdf G4 Architecture White Paper /docs/en/white-paper/G4WP.pdf documents 918633085541740938 White Paper N en None Y pdf 0 N G4 Architecture White Paper 102.7 KB G4WP N X989422113911 /docs/en/white-paper/MPC603THERMALWP.pdf 2016-10-31 D1020288664177 PSP 55 May 1, 1996 White Paper White Paper None /docs/en/white-paper/MPC603THERMALWP.pdf English documents 175346 None 918633085541740938 2022-12-07 N /docs/en/white-paper/MPC603THERMALWP.pdf Thermal Management of a C4/Ceramic-Ball-Grid Array: The Motorola PowerPC 603 and PowerPC 604 RISC Microprocessors /docs/en/white-paper/MPC603THERMALWP.pdf documents 918633085541740938 White Paper N en None Y pdf 0 N N Thermal Management of a C4/Ceramic-Ball-Grid Array: The Motorola PowerPC 603 and PowerPC 604 RISC Microprocessors 175.3 KB MPC603THERMALWP N D1020288664177 /docs/en/white-paper/MPC603OVERALLWP.pdf 2016-10-31 P1020288652255 PSP 56 May 1, 1996 White Paper White Paper None /docs/en/white-paper/MPC603OVERALLWP.pdf English documents 210032 None 918633085541740938 2022-12-07 N /docs/en/white-paper/MPC603OVERALLWP.pdf Motorola PowerPC 603 and PowerPC 604 RISC Microprocessor: The C4/Ceramic-Ball-Grid Array Interconnect Technology /docs/en/white-paper/MPC603OVERALLWP.pdf documents 918633085541740938 White Paper N en None Y pdf 0 N N Motorola PowerPC 603 and PowerPC 604 RISC Microprocessor: The C4/Ceramic-Ball-Grid Array Interconnect Technology 210.0 KB MPC603OVERALLWP N P1020288652255 true Y Products
