A comprehensive high-performance radar SW development platform comprising S32R41 and TEF82xx is available here.
The TEF82xx customer application board, TEF82xx-CAB, supports the development of high-performance 77 GHz radar applications targeted for automotive use cases, such as advanced high resolution corner and front radar applications.
The TEF82xx-CAB consists of two TEF82xx radar transceivers in a leader-follower configuration. All RF receive and transmit channels are wired to a 6 x 8 antenna array. The 26 GHz local oscillator output (differential signal) from the leader is sent to both the leader LO input and the follower LO input.
Besides, it offers a wide variety of features and interfaces to facilitate HW and SW development to enable customer development, for example, MIPI-CSI2 interface to extract the ADC raw data, SW API to enable the controlling of the front-end MMIC from the host platforms.
Ordering TEF82xx-CAB standalone is not possible if neither S32R41 Evaluation Board nor S32R29 Radar Application Development Board is available at customer side. For new customers, please order our comprehensive high-performance radar SW development platform comprising S32R41 and TEF82xx here.

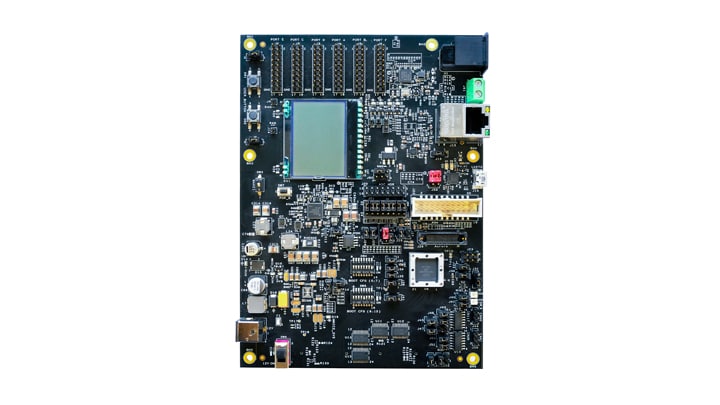

S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB.
The TEF82xx-CAB and enablement (documentation, software and boards) are available for selected customers with an approved NDA. For additional information and availability, contact support or your local sales representative.
