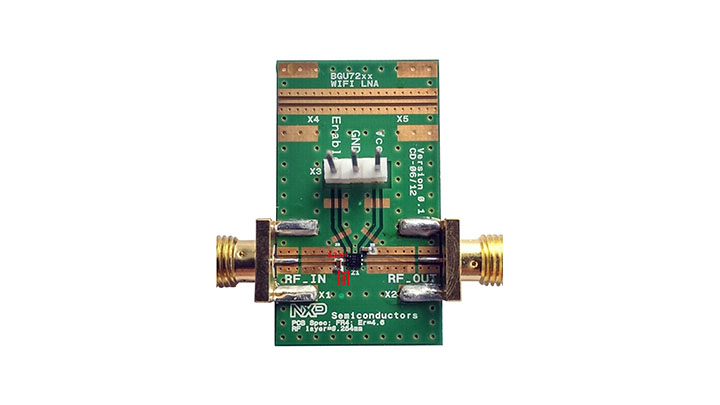

BGU7224 WLAN LNA evaluation board

Roll over image to zoom in

Product Details

Select a section:

Supported Devices




  • The BGU7224 is optimized for the 2.4 GHz ISM-Band

Power Management

  • Exceptional 1.0 dB noise figure with 13 mA current consumption
  • Single supply 3.0 V to 3.6 V operation
  • Fully integrated, high performance LNA with built-in bypass
  • Very low bypass current (< 2 µA)
  • High IP3i and low EVM
  • High ESD protection of 2 kV (HBM) on all pins


  • Ultra small, 0.5 mm pitch, 1.6 mm x 1.6 mm x 0.5 mm QFN-style package, MSL 1 at 260 ⁰C
  • Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS) following NXP’s RHF-2006 indicator D (dark green)

Target Applications

  • LNA for WLAN (IEEE 802.11a/n/ac WiFi) in access points
  • Routers
  • Gateways
  • Smart phones
  • Tablets
  • Notebooks and portable computing devices

Buy Options

  • OM7869

  • BGU7224 WLAN LNA evaluation board.

  • $160.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 16
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
