Wideband Silicon Germanium Low-Noise Amplifier MMIC

See product image

Product Details


  • Low noise high gain microwave MMIC
  • Applicable between 40 MHz and 6 GHz
  • Integrated temperature stabilized bias for easy design
  • Bias current configurable with external resistor
  • 110 GHz transit frequency - SiGe:C technology
  • Power-down mode current consumption < 1 μA
  • ESD protection > 1 kV Human Body Model (HBM) on all pins

Target Applications

  • GPS

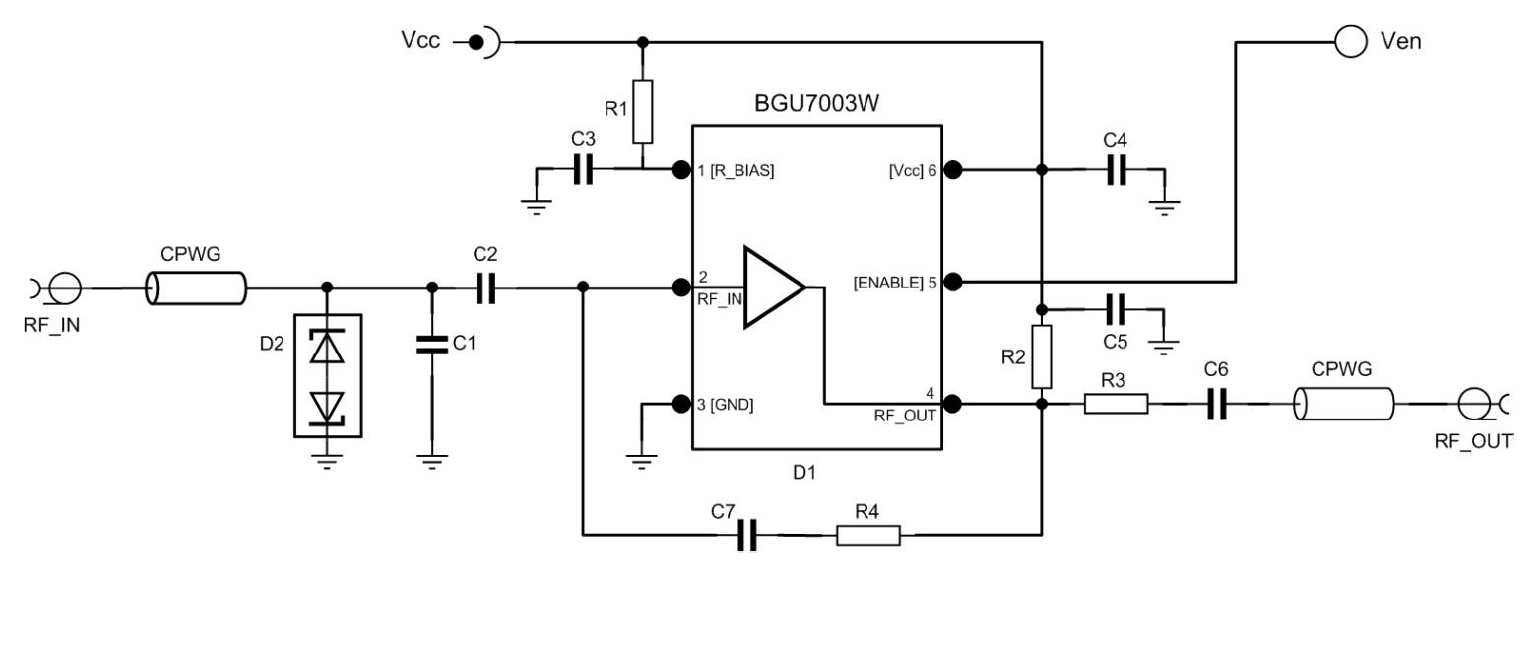

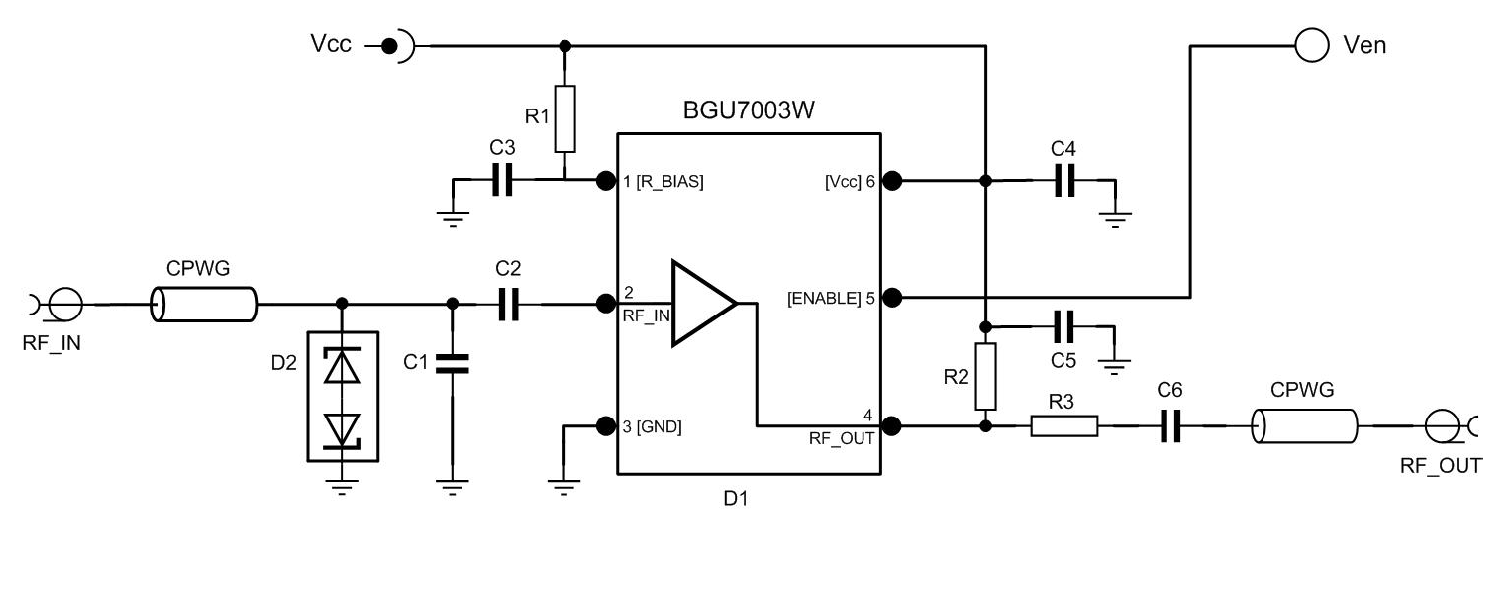

  • FM LNA
  • Low-noise amplifiers for microwave communications systems
  • WLAN and CDMA applications
  • Analog / digital cordless applications

Part numbers include: BGU7003W.
