AW-XM455MA

AW-XM455MA

Roll over image to zoom in

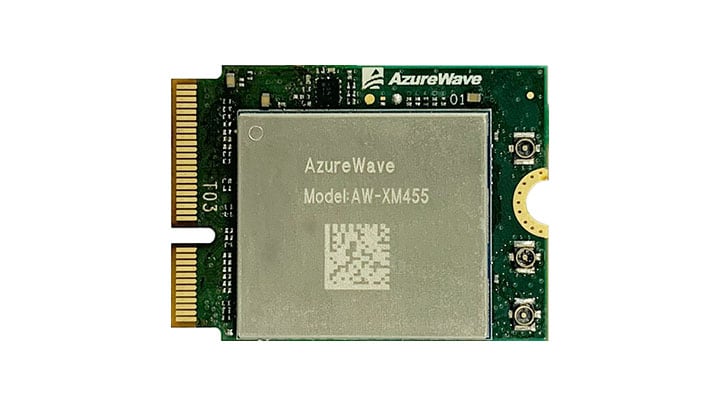

AW-XM455MA is M.2 2230 adaptor board of AW-XM455, which supports 802.11ax 2x2 2.4GHz/5GHz with 18x20 LGA form-factor.

It has two antenna to support 2 (Transmit) x 2 (Receive) communications. The host interface supports PCIe for Wi-Fi® and UART for Bluetooth®.

Supported Devices

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW620: 2.4/5 GHz Dual-Band 2x2 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.1 Solution

Features

Wi-Fi

  • Wi-Fi 6 802.11ax 2x2

Bluetooth

  • Bluetooth 5.1

Interface

  • Wi-Fi PCIe and Bluetooth for UART

Antenna Pin No.

  • 3 (2 Wi-Fi + 1 Bluetooth)

Buy Options

Click to expand

  • AW-XM455MA

  • Azurewave AW-XM455MA enables evaluation and development of the AW-XM455 802.11ax 2.4GHz/5GHz 18x20 LGA module based on NXP's IW620P solution.

  • Kit Contains:

    • AW-XM455MA (with AW-XM455 module on board)
    • PIFA Antenna
