2.4/5 GHz Dual-Band 2x2 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.3 Automotive Solution

Roll over image to zoom in

Block Diagram

Choose a diagram:

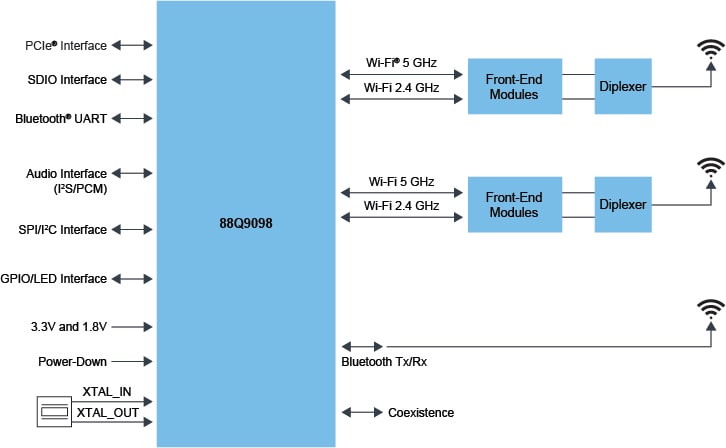

88Q9098 SoC Application Block Diagram (Internal PA/LNA/SW)

88Q9098 Block Diagram Interior App

88Q9098 SoC Internal Block Diagram

88Q9098 SoC Internal Block Diagram

Features

Concurrent Dual 2x2 Wi-Fi Operation

  • IEEE 802.11ax / IEEE 802.11ac
  • 20/40/80 MHz channel bandwidths
  • Zero Wait DFS
  • Implicit and explicit beamforming

Wi-Fi 6

  • Downlink OFDMA and MU-MIMO
  • Uplink OFDMA and MU-MIMO
  • 1024 QAM
  • Target Wake Time

Bluetooth

  • Bluetooth Class 1.5 and Class 2
  • Bluetooth Low Energy (LE) 1 Mbit/s and 2 Mbit/s
  • Bluetooth Low Energy Long Range

AEC-Q100 support

  • Grade 2 (-40C to +105C)
  • Grade 3 (-40C to +85C)

Host Interface (Wi-Fi + Bluetooth)

  • PCIe 2.0 + UART
  • SDIO 3.0 + SDIO 3.0
  • SDIO 3.0 + UART
