Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 / 802.15.4
Wireless MCU with Integrated Radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 Radios
The RW610 is a highly integrated, low-power wireless MCU with an integrated MCU and Wi-Fi® 6 + Bluetooth® Low Energy (LE) 5.4 radios designed for a broad array of applications, including connected smart home devices, gaming controllers, enterprise and industrial automation, smart accessories and smart energy.
The RW610 MCU subsystem includes a 260 MHz Arm® Cortex®-M33 core with Trustzone™-M, 1.2 MB on-chip SRAM and a high-bandwidth Quad SPI interface with an on-the-fly decryption engine for securely accessing off-chip XIP flash.
The RW610 includes a full-featured 1x1 dual-band (2.4 GHz/5 GHz) 20 MHz Wi-Fi 6 (802.11ax) subsystem bringing higher throughput, better network efficiency, lower latency and improved range over previous generation Wi-Fi standards. The Bluetooth LE radio supports 2 Mbit/s high-speed data rate, long range and extended advertising.
The integrated EdgeLock® Secure Enclave (Core Profile) offers, secure boot, secure debug, secure firmware updates and secure life cycle management as well as hardware cryptography and physically unclonable function (PUF) for secure key management.
The advanced design of the RW610 delivers tight integration, low power and highly secure operation in a space- and cost-efficient wireless MCU requiring only a single 3.3 V power supply.
Wireless modules based on the NXP RW610 are offered by leading module manufacturers.
Product Details
Block Diagram
Choose a diagram:
Features
Wi-Fi 6 Radio
- 1x1, 20 MHz, IEEE 802.11ax, 2.4 GHz/5 GHz
- Target wake time, dual carrier modulation and extended range
- Integrated Wi-Fi PA, LNA and T/R switch, up to +21 dBm TX power
- WPA 3 security
- Matter over Wi-Fi
Bluetooth Low Energy 5.4 Radio
- Supports Bluetooth 5.2 features
- Bluetooth 5.4 certified
- Bluetooth LE 2 Mbit/s high-speed mode, long range and advertising extensions
- I²S and PCM audio interfaces
- Integrated PA / LNA with up to +15 dBm TX output
MCU
- 260 MHz Arm Cortex-M33 with TrustZone-M
- On-chip 1.2 MB SRAM
- Quad FlexSPI Flash XIP with on-the-fly decryption
- PSRAM interface for memory expansion
- Up to 5 Flexcomm (configurable as SPI/I²C/I²S/UART)
- IEEE 1588 RMII/Fast Ethernet interface
- LCD interface
Security
- NXP EdgeLock™ Assurance program
- Hardware root of trust
- Trusted Execution Environment based on Arm TrustZone-M
- NXP EdgeLock 2GO Trust Provisioning
- Secure boot, debug and software update
- Hardware cryptography
- Physical unclonable function (PUF) secure key management
- SESIP Assurance Level 3 (SESIP3)
- PSA Certified Level 3
SDK, Tool-Kits and Middleware
- MCUXpresso SDK
- FreeRTOS open-source kernel and libraries
- lwIP and mbedTLS security middleware
- Integration with IAR
- TF-M firmware support
Power Management
- Ability to power the entire RW610 using a single 3.3 V external supply
- Integrated Buck regulators and LDOs supplying internal power domains
- Independent power modes across applications and radio subsystems
- Individual subsystem wake-up through dedicated GPIO, IRQ and RTC
- Low-leakage always-on power domain enabling fast wake-up
Partner Modules
RW610
1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.3 Radios| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|

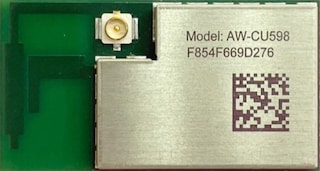

AW-CU598 |
- | - | -30 to 85 | Embedded antenna, U.FL Connector(s) | 2 | SMD | 28 x 15 x 3.15 | FCC, NCC | Hostless |
|
LBES0ZZ2FP-580 |
- | - | -40 to 85 | Antenna pin(s) | 1 | SMD | 12 x 11 x 1.4 | TBD | Hostless |
|

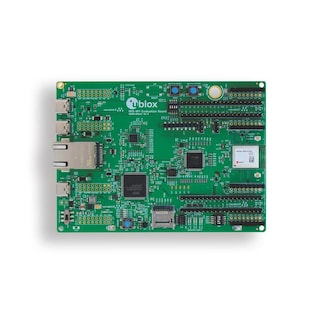

IRIS-W101-30B |
- | - | -40 to 85 | Antenna pin(s) | 1 | SMD | 14.6 x 16.8 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
IRIS-W106-30B |
- | - | -40 to 85 | Embedded antenna | 1 | SMD | 14.6 x 20.9 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
IRIS-W161-00B |
- | - | -40 to 85 | Antenna pin(s) | 1 | SMD | 14.6 x 16.8 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|
IRIS-W166-00B |
- | - | -40 to 85 | Embedded antenna | 1 | SMD | 14.6 x 20.9 x 2.1 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX RT, MCX |
|

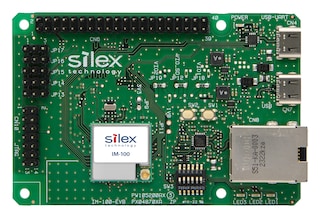

IM-100-PAD |

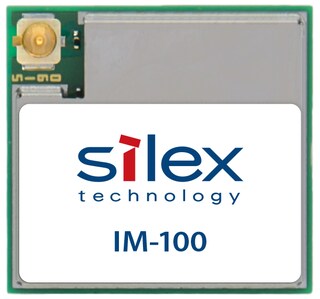

SoC | SoC | -40 to 85 | Antenna Trace | 1 | SMD | 17.0 × 18.0 × 2.65 | FCC, ISED, CE, UKCA, MIC | Hostless |
|
IM-100-MHF |
SoC | SoC | -40 to 85 | U.FL Connector | 1 | SMD | 17.0 × 18.0 × 2.65 | FCC, ISED, CE, UKCA, MIC | Hostless |
