2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 Automotive Solution

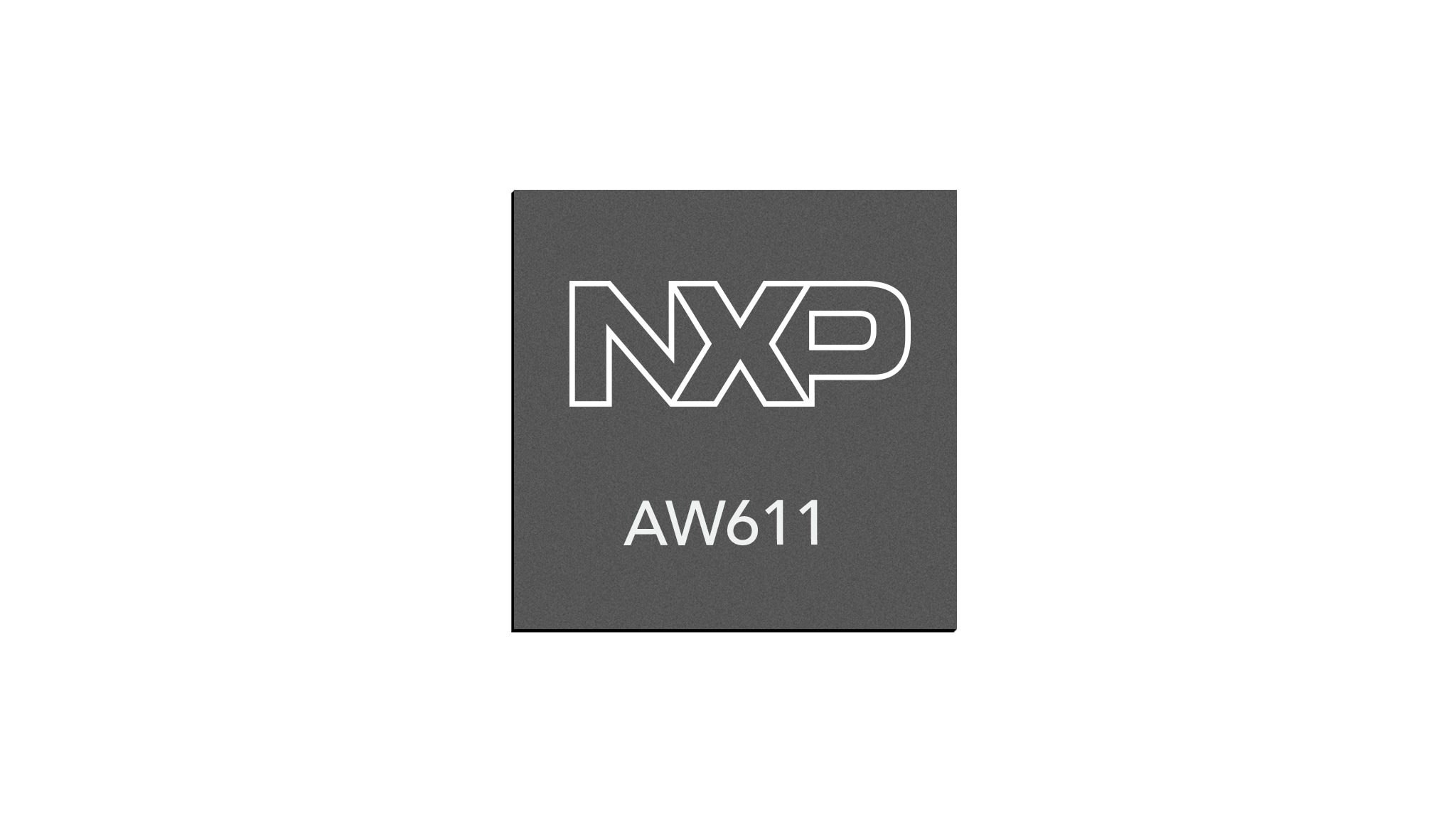

The AW611 is a highly integrated 2.4/5 GHz dual-band 1x1 Wi-Fi® 6 (802.11ax) and Bluetooth®/Bluetooth Low Energy 5.4 single-chip solution optimized for the automotive market with AEC-Q100 Grade 3 qualification. This high degree of integration contributes to very low system costs and a minimum external BOM while achieving efficient coexistence between all internal radios as well as external radios, such as LTE.
AW611 includes a full-feature Wi-Fi subsystem powered by NXP’s 802.11ax (Wi-Fi 6) technology bringing higher throughput, better network efficiency, lower latency and improved range over previous generation Wi-Fi standards. The Wi-Fi subsystem integrates a Wi-Fi MAC, baseband, and direct-conversion radio with integrated PA, LNA and transmit/receive switch removing the need for an RF front-end module (FEMs) saving cost and reducing system complexity.
In addition to a Wi-Fi 6 radio, the AW611 integrates an independent Bluetooth 5.4 subsystem that supports both Bluetooth and Bluetooth Low Energy (LE). The device supports Bluetooth Profiles such as hands free (HFP), advanced audio distribution profile (A2DP) for audio streaming as well as additional profiles like dual wideband speech (WBS). For Bluetooth Low Energy, the AW611 supports 2 Mbit/s high-speed data rate, long range and extended advertising. In addition, LE Audio is supported using Isochronous channels for a better overall audio experience.
The AW611 integrates dedicated CPUs and memories for both the Wi-Fi and Bluetooth subsystems, which enables real time, independent protocol processing. SDIO and UART interfaces are supported for connection to external Host processors.
Product Details

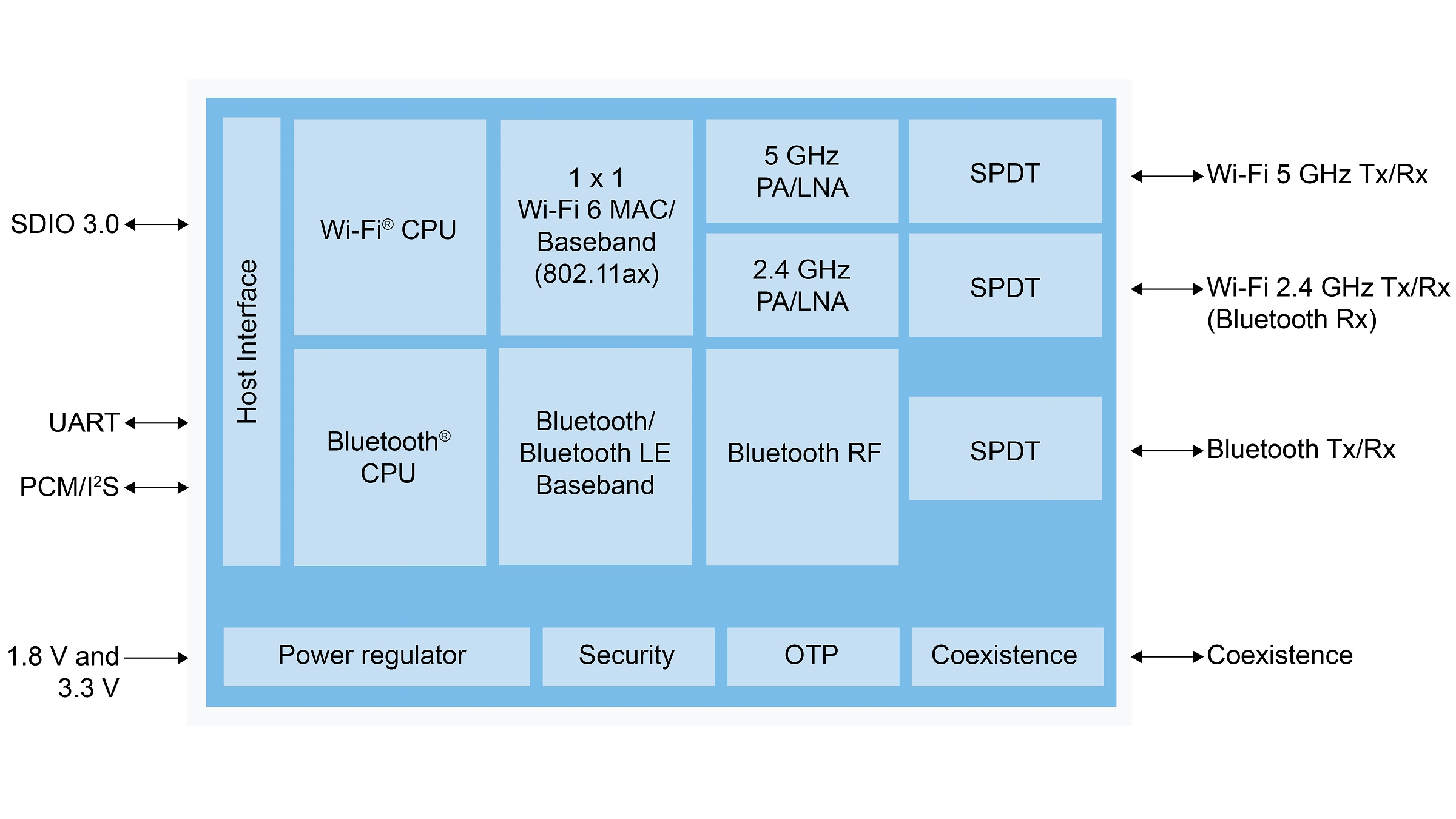

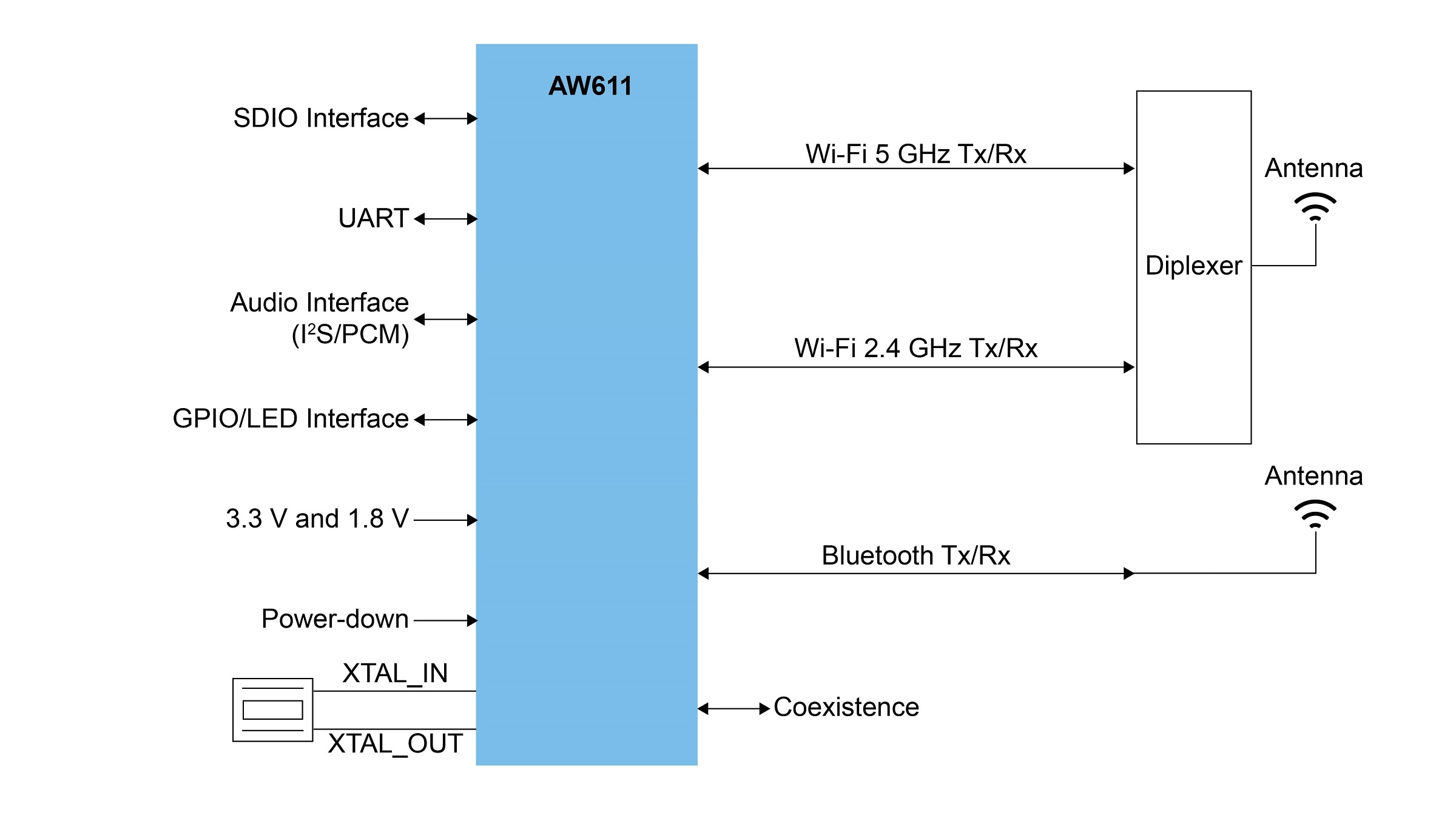

Block Diagram
Choose a diagram:
Features
Wi-Fi 6 (802.11ax) Key Features
- 1x1 2.4/5 GHz, up to 80 MHz channel
- Downlink MU-MIMO and OFDMA
- Uplink MU-MIMO and OFDMA
- Target Wake Time, Dual Carrier Modulation, Extended Range
- WPA3 security
- SDIO 3.0 host interface support
Bluetooth Key Features
- Supports Bluetooth 5.2 features
- Bluetooth 5.4 certified
- Full featured Bluetooth baseband
- SCO/eSCO links with hardware accelerated audio signal processing
- Bluetooth LE 2 Mbit/s, Long Range, Advertising Extensions
- AoA / AoD Direction Finding
- LE Audio with Isochronous channels
- AES hardware encryption
- UART host interface support
General Features
- Dedicated, independent CPUs and memories for Wi-Fi and Bluetooth
- Efficient power management system supporting low-power modes
- Single and dual antenna configurations
- AEC-Q100 Grade 3 (-40°C to +85°C)
- AEC-Q100 Grade 2 (-40°C to +105°C)
Partner Modules
AW611
Wi-Fi 6 (802.11ax) 2.4/5 GHz Dual-Band 1x1 + Bluetooth® 5.2| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|
AW-XMA05 |
SDIO | UART | -40 to 85 | Antenna pin(s) | 2 | SMD | 22 x 22 x 2.5 | FCC | i.MX |
|
JODY-W562-00A |
SDIO | UART, PCM/I²S | -40 to 85 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: AEC-Q104; FCC/ISED, RED/UKCA,BTSIG | i.MX 6/7/8/9 i.MX RT |
|
JODY-W562-01A |
SDIO | UART, PCM/I²S | -40 to 105 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: AEC-Q104; FCC/ISED, RED/UKCA,BTSIG | i.MX 6/7/8/9 |
|

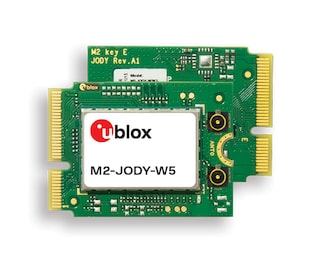

M2-JODY-W562-00C |
SDIO | UART, PCM/I²S | -40 to 85 | U.FL connector(s) | 2 | M.2 card | 22.0 x 30.0 x 4.2 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7/8/9 |
