The 88W8997 is the industry’s first 28nm, 802.11ac wave-2, 2x2 MU-MIMO combo solution with full support for Bluetooth 5.3. The design enhancements and the low power 28nm process technology reduces the power consumption by up to 40% over existing solutions. 88W8997 features the highest level of integration in the market including dual band Power Amplifiers (PAs), Low Noise Amplifiers (LNAs) and switches reducing board level BOM (Bill of Materials) to the bare minimum, enabling easy Chip-on-Board and module design for board markets.

Wireless modules based on the NXP 88W8997 are offered by leading module manufacturers.

Application Notes

Product Details

Block Diagram

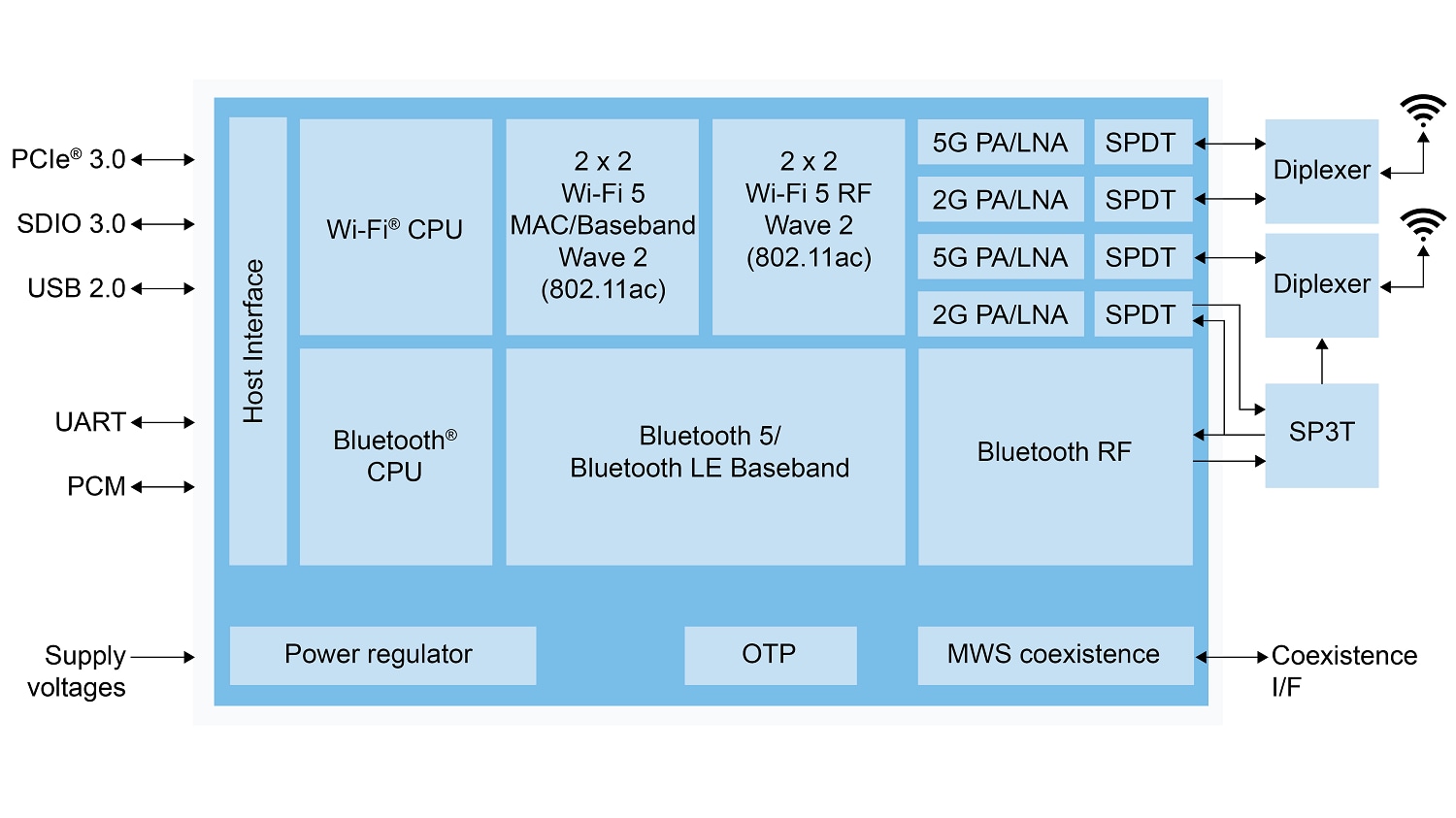

88W8997-BD1

Get diagram PDF

Features

2x2, MU-MIMO combo, with low-power 28nm design
Bluetooth 5.3 including support for features like 2Mbps LE and direction finding using Angle of Arrival (AOA) and Angle of Departure (AOD)
Dual band PAs, LNAs, and Switches
Concurrent applications support for a device to have two independent radio links, without compromising the 2x2 MIMO link
Precision indoor location capability, including IEEE 802.11mc as well as Bluetooth Low Energy direction finding

Partner Modules

88W8997

Wi-Fi 5 (802.11ac) 2.4/5 GHz Dual-Band 2x2 + Bluetooth® 5.3

Product	Wi-Fi I/F	Bluetooth I/F	Operating Temp	Antenna Type	Antenna #	Module Type	Module Size	Qualifications	Recommended Host
AW-CM276MA-PUR AzureWave	PCIe	UART	-30 to 85	U.FL Connector(s)	2	M.2 E-Key	30 x 22 x 2.84	CE, FCC, Japan, IC, AU/NZ, India, Mexico, NCC	i.MX
AW-CM276MA-SUR AzureWave	SDIO	UART	-30 to 85	U.FL Connector(s)	2	M.2 E-Key	30 x 22 x 2.84	CE, FCC, Japan, IC, AU/NZ, India, Mexico, NCC	i.MX
AW-CM276NF AzureWave	PCIe, SDIO	UART	-30 to 85	U.FL Connector(s)	2	SMD	12 x 16 x 1.85	CE, FCC, Japan, IC, AU/NZ, India, Mexico, NCC	i.MX

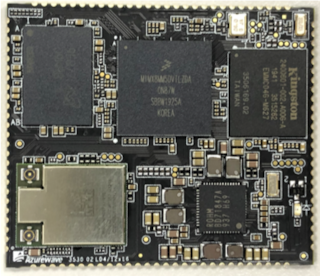

AW-PU530 AzureWave			-30 to 85	U.FL Connector(s)	2	SOM (Voice/Video)	46 x 39 x 2.96	CE, FCC, Japan, IC, AU/NZ, India, Mexico, NCC	i.MX 8M Mini
AW-PU580 AzureWave			-30 to 85	U.FL Connector(s)	2	SOM (Industrial facility, commercial appliance)	82 x 50 x 5.1	CE, FCC, Japan, IC, AU/NZ, India, Mexico, NCC	i.MX 8M Plus
SPB228-D H&D-Wireless	PCIe, USB, SDIO	UART, PCM	-40 to 85	Antenna pin(s)	2	SMD	12 x 16 x 1.7	FCC, IC, CE	i.MX
SPB432-A H&D-Wireless	PCIe	USB	-40 to 85	MHF 4 Connector(s)	2	M.2 E-Key	22 x 30 x 2.5	FCC, IC, CE	i.MX
SPB432-B H&D-Wireless	SDIO	SDIO	-40 to 85	MHF 4 Connector(s)	2	M.2 E-Key	22 x 30 x 2.5	FCC, IC, CE	i.MX
SPB432-C H&D-Wireless	PCIe	UART	-40 to 85	MHF 4 Connector(s)	2	M.2 E-Key	22 x 30 x 2.5	FCC, IC, CE	i.MX
SPB432-D H&D-Wireless	USB	USB	-40 to 85	MHF 4 Connector(s)	2	M.2 E-Key	22 x 30 x 2.5	FCC, IC, CE	i.MX
SPB432-E H&D-Wireless	PCIe	UART	-40 to 85	MHF 4 Connector(s)	2	M.2 E-Key	22 x 30 x 2.5	FCC, IC, CE	i.MX
SPB432-F H&D-Wireless	PCIe	UART	-40 to 85	MHF 4 Connector(s)	2	M.2 E-Key	22 x 30 x 2.5	FCC, IC, CE	i.MX
453-00003 Ezurio	USB, Ethernet, UART	USB, Ethernet, UART	-30 to 85	Connector	2	SMD	30 x 30 x 2.8	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	Hostless
453-00004 Ezurio	USB, Ethernet, UART	USB, Ethernet, UART	-30 to 85	Connector	2	SMD	30 x 30 x 2.8	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX
453-0007X Ezurio	PCIe, SDIO	UART	-30 to 85	Connector	2	SMD	40x 47x 4.6	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	Hostless
453-00135C Ezurio	PCIe, SDIO	UART	-30 to 85	Connector	2	SMD	40x 47x 4.6	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	Hostless
453-00135R Ezurio	PCIe, SDIO	UART	-30 to 85	Connector	2	SMD	40x 47x 4.6	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	Hostless

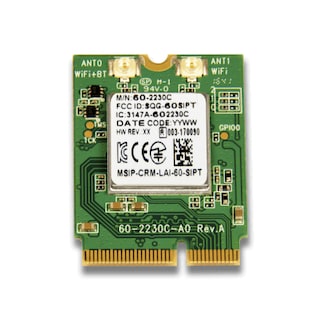

ST60-2230C, SU60-2230C Ezurio	SDIO	UART	-30 to 85	Connector	2	M.2 E-Key	22 x 30 x 3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8/9
ST60-2230C-P, SU60-2230C-P Ezurio	PCIe	UART	-30 to 85	Connector	2	M.2 E-Key	22 x 30 x 3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8/9
ST60-2230C-PU, SU60-2230C-PU Ezurio	PCIe	USB	-30 to 85	Connector	2	M.2 E-Key	22 x 30 x 3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8/9
ST60-2230C-SS, SU60-2230C-SS Ezurio	SDIO	SDIO	-30 to 85	Connector	2	M.2 E-Key	22 x 30 x 3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8/9
ST60-2230C-U, SU60-2230C-U Ezurio	USB	UART	-30 to 85	Connector	2	M.2 E-Key	22 x 30 x 3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8/9
ST60-2230C-UU, SU60-2230C-UU Ezurio	USB	USB	-30 to 85	Connector	2	M.2 E-Key	22 x 30 x 3.3	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8/9
ST60-SIPT, SU60-SIPT Ezurio	SDIO, USB, PCIe	UART, USB, SDIO	-30 to 85	Antenna pin(s)	2	SMD	13 x 14 x 1.87	FCC, IC, CE, MIC, RCM, RoHS, ISO, UKCA, BT SIG	i.MX 6/7/8
LBEE5XV1YM-574 Murata	PCIe, SDIO	UART	-30 to 85	Antenna pin(s)	2	SMD	11.8 x 8.4 x 1.3	CE, FCC, IC MIC (Japan)	i.MX

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 16 documents

Application Note
NXP Bluetooth UART Driver Integration - Application Notenew

PDFRev 2.0Nov 27, 2024214.3 KBAN14310English
Application Note
RF Test Mode on Linux OS - Application note

PDFRev 4Sep 26, 2024920.0 KBAN14114English
Application Note
Wi-Fi Firmware Automatic Recovery for Linux OS - Application note

PDFRev 1Sep 12, 2024274.8 KBAN14213English
Application Note
Bluetooth Direct Test Mode (DTM) - Application note

PDFRev 2Jul 4, 2024223.4 KBAN14163English
Application Note
802.11r Roaming with Fast Transition (FT) - Application note

PDFRev 2Jul 1, 2024686.1 KBAN13888English
Application Note
Compliance and Certification Considerations - Application note (public)

PDFRev 3Feb 20, 2024260.6 KBAN13006English
Application Note
Wi-Fi Alliance Derivative Certification Process - Application note (restricted)

PDFRev 6Dec 13, 2023905.2 KBAN12976English

Account Required
Application Note
Wi-Fi/Bluetooth/802.15.4 M.2 Key E Pinout Definition

PDFRev 4May 30, 2023303.4 KBAN13049English
Application Note
Enabling Bluetooth Deep-sleep with NXP Bluetooth UART - Application note (restricted)

PDFRev 1May 11, 2023569.6 KBAN13920English

Account Required
User Manual
WFA Certification for NXP-based Wireless Modules on i.MX 8M Quad EVK Running Android 14 OS - User Manual (Restricted)

PDFRev 6.0Sep 26, 2024475.0 KBUM11563English

Account Required
User Manual
Getting Started with NXP-based Wireless Modules on i.MX 8M Quad EVK Running Linux OS - User manual

PDFRev 15Sep 25, 20245.2 MBUM11483English

Account Required
User Manual
WFA Certification for NXP-based Wireless Modules on i.MX 8M Quad EVK Running Linux OS - User manual

PDFRev 9.0Sep 25, 2024451.8 KBUM11560English

Account Required
User Manual
Feature Configuration Guide for NXP-based Wireless Modules on i.MX 8M Quad EVK - User manual

PDFRev 16Sep 25, 20244.3 MBUM11490English

Account Required
User Manual
Getting Started with NXP-based Wireless Modules on i.MX 8M Quad EVK Running Android 14 OS

PDFRev 11Aug 8, 20245.6 MBUM11558English

Account Required
User Manual
How to Download and Build NXP Wi-Fi Drivers - User manual (restricted)

PDFRev 3Oct 12, 2022793.9 KBUM11675English

Account Required
Fact Sheet
88W8997 - 802.11ac wave 2 2x2 Wi-Fi Dual Band with Bluetooth 5 SoC - Fact sheet (public)

PDFRev 0Oct 2, 2019198.6 KB88W8997-FACT-SHEETEnglish, 中文

Show All

Design Resources

Design Files

Quick reference to our design files types.

Hardware

Quick reference to our board types.

2 hardware offerings

Evaluation and Development Boards

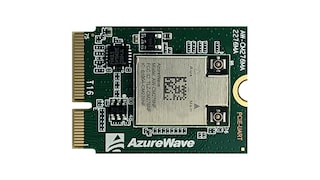

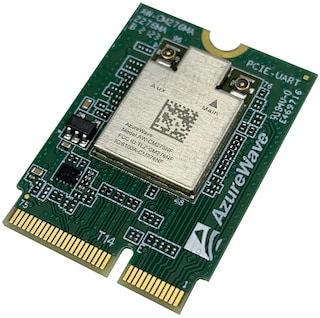

AW-CM276MA-PUR Evaluation Board

AW-CM276MA-PUR
Evaluation and Development Boards
Advantech's EWM-W306: NXP 88W8997 M.2 1216

EWM-W306

1-5 of 10 hardware offerings

Embedded Board Solutions
MBa93xxLA

Single Board Computer (SBC) based on TQMa93xxLA as a platform with TSN Gigabit Ethernet, ML-Accelerator and Graphics support.

By TQ-Systems GmbH Platinum Partner

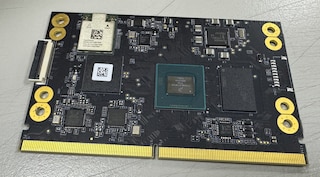

Embedded Board Solutions
Verdin iMX8M Plus

Verdin iMX8M Plus includes a Neural Network Processing Unit ideal for Machine Learning applications. Toradex provides integration with popular machine learning frameworks...

By Toradex® Platinum Partner
Module
EWM-W306

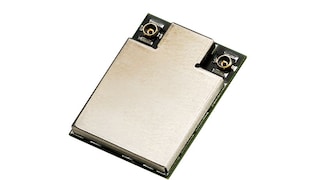

NXP 88W8997, IEEE802.11ac + BT 5.0, 2TR/2RX MU-MIMO, standard M.2 1216 solder down type module

By Advantech Co., Ltd. Gold Partner
Module
AIW-154

Advantech AIW-154 is NXP88W8997 M.2 2230 module, supporting 802.11ac and Bluetooth 5.3 2x2 dual-band. This wide range temperature module can use in medical devices, handh...

By Advantech Co., Ltd. Gold Partner
Module
AW-CM276NF

802.11 a/b/g/n/ac 2x2 + BT 5.0 M.2 1216 Module

By AzureWave Technologies, Inc. Gold Partner
Module
Type 1YM: 802.11a/b/g/n/ac 2x2 MIMO + Bluetooth 5.2 Module

Type 1YM is a 2.4GHz & 5GHz module based on NXP 88W8997 combo chipset which supports Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO + Bluetooth 5.2 BR/EDR/LE up to 866 Mbps PHY data rat...

By Murata Manufacturing Co., Ltd. Gold Partner
Module
SPB432

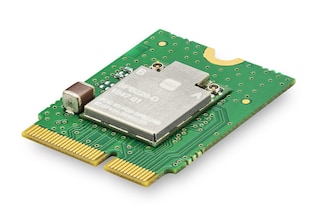

SPB432 is a complete WLAN/BT-module with integrated EMC shield, ready for integration in a M.2 Key E slot. Industrial Temperature range -40 to +85°C

By H&D Wireless Connectivity AB Gold Partner
Module
SPB228

Dual band Wi-Fi 802.11 abgn/ac and Bluteooth 5 module with integrated EMC shield. Industry temp The SPB228 module is based on a 88W8997 NXP chipset.

By H&D Wireless Connectivity AB Gold Partner
Module

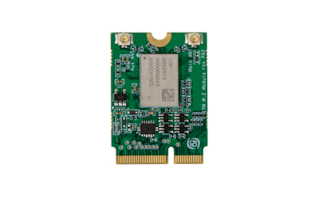

1YM M.2 Module
