PEGODA Contactless Smart Card Reader based on MFRC523

MFEV710 Not Recommended for New Designs

Roll over image to zoom in

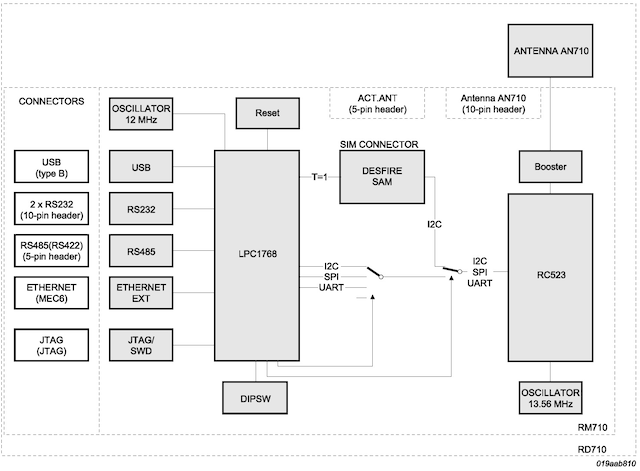

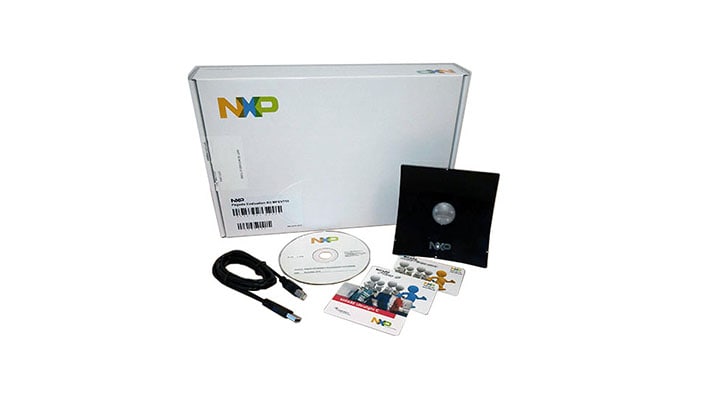

The Pegoda MFRD710 reader is a reference design and evaluation reader for secure applications based on MIFARE® and NTAG® products. The MFEV710 evaluation kit is built around proven, well-established MIFARE products, and a powerful Arm® Cortex®-M3 processor.

Product Details

Features

Microcontroller

  • Arm Cortex-M3 microcontroller with integrated flash memory

Connectivity

  • USB host interface to PC and Windows-based user interface
  • Optional support for RS-232, RS485, JTAG, Ethernet

Support

  • Full support for entire MIFARE product-based card portfolio and MIFARE discover
  • SAM support in standard or x-mode
  • ISO/IEC 14443 -3/-4 and MIFARE operation
  • PC/SC-based architecture on widely deployed hardware solutions
  • Firmware in source code and binaries
