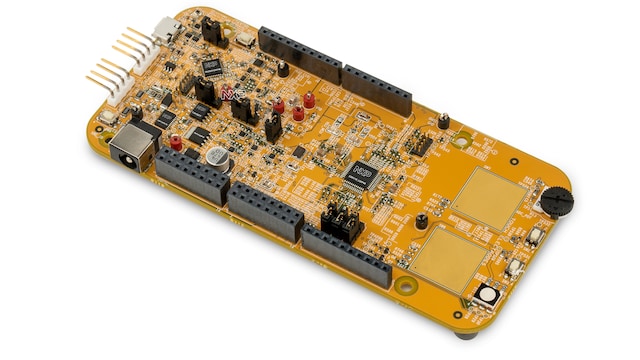

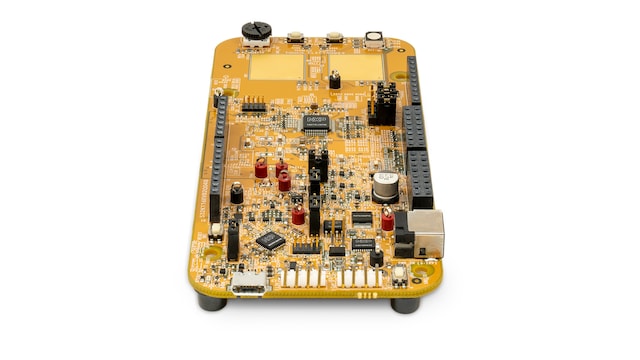

S32K116-Q048 Evaluation Board for Automotive General Purpose

S32K116EVB
Active

Roll over image to zoom in

The S32K116EVB2Q048 is a low-cost evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M0+ S32K11x MCU, both S32K116EVB2Q048 and S32K116EVB-Q048 offer a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options.

The two board versions integrate a security module complying with Secure Hardware Extension (SHE) specification for quick application prototyping and demonstration.

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • UJA1169TK: Mini High-Speed CAN System Basis Chip

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Adapters

  • OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces

Size and Price

  • Small form factor size 4.5” x 2.3”
  • Low cost

Compatibility

  • Arduino® UNO pint-out compatible with expansion “shield” support

Interfaces

  • On-board connectivity for CAN, LIN, UART/SCI

Power

  • Flexible power supply options: micro USB or external 12 V supply

Components

  • 2 x touchpads
  • 1 x potentiometer for precise voltage and analog measurement
  • 1 x RGB LED
  • 2 x push buttons

Buy Options

S32K116EVB2Q048-Image

Click to expand

S32K116EVB2Q048
Active

S32K116-Q048 Evaluation Board for Automotive General Purpose.

    $105.00 USD
    In Stock :23

    Normally ships 1-2 business days

    ADD TO CART
