TJA144x Automotive CAN FD Transceiver Family

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

The TJA144x family of transceivers provides an interface between a controller area network (CAN) or CAN flexible data rate (FD) protocol controller and the physical two-wire CAN-bus.

TJA1441: Basic CAN
TJA1442: Standby mode CAN
TJA1443: Sleep mode CAN
TJA1448: Dual channel standby mode CAN

All variants enable reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s.

The TJA144x is intended as a simple replacement for high-speed classical CAN and CAN FD transceivers. It offers pin compatibility and is designed to avoid changes to hardware and software design, allowing the TJA1442 to be easily retrofitted to existing applications.

AEC-Q100 Grade 0 variants, the TJR144x, are available for high temperature applications, supporting operation at 150°C ambient temperature.

A variant optimized for use in very low-speed industrial solutions is available, the TJF1441.

For additional information and sample availability, contact your local sales office.

Data Sheet

Product Details

Block Diagram

Choose a diagram:

TJA1441 Block Diagram

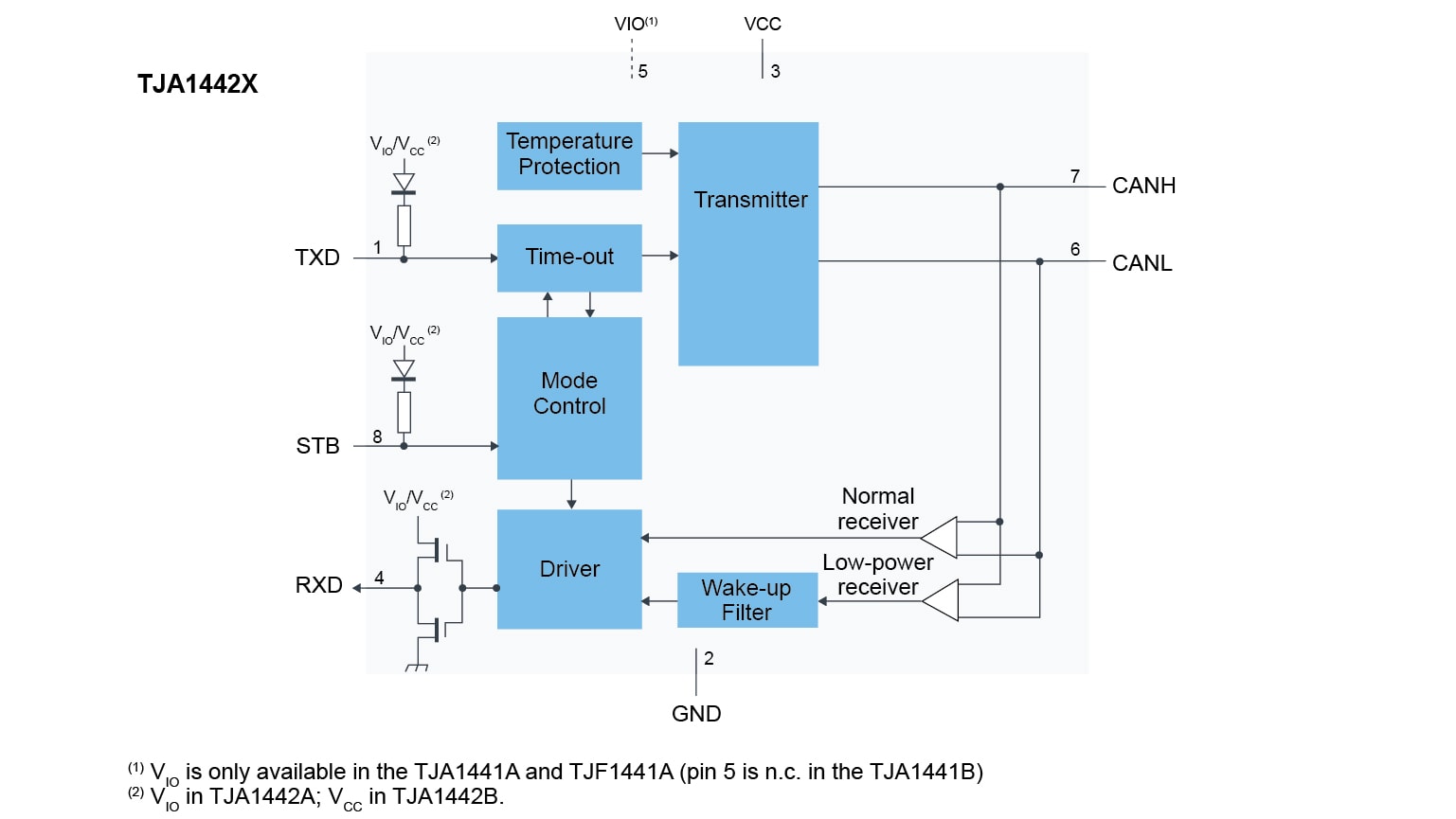

TJA1442 Block Diagram

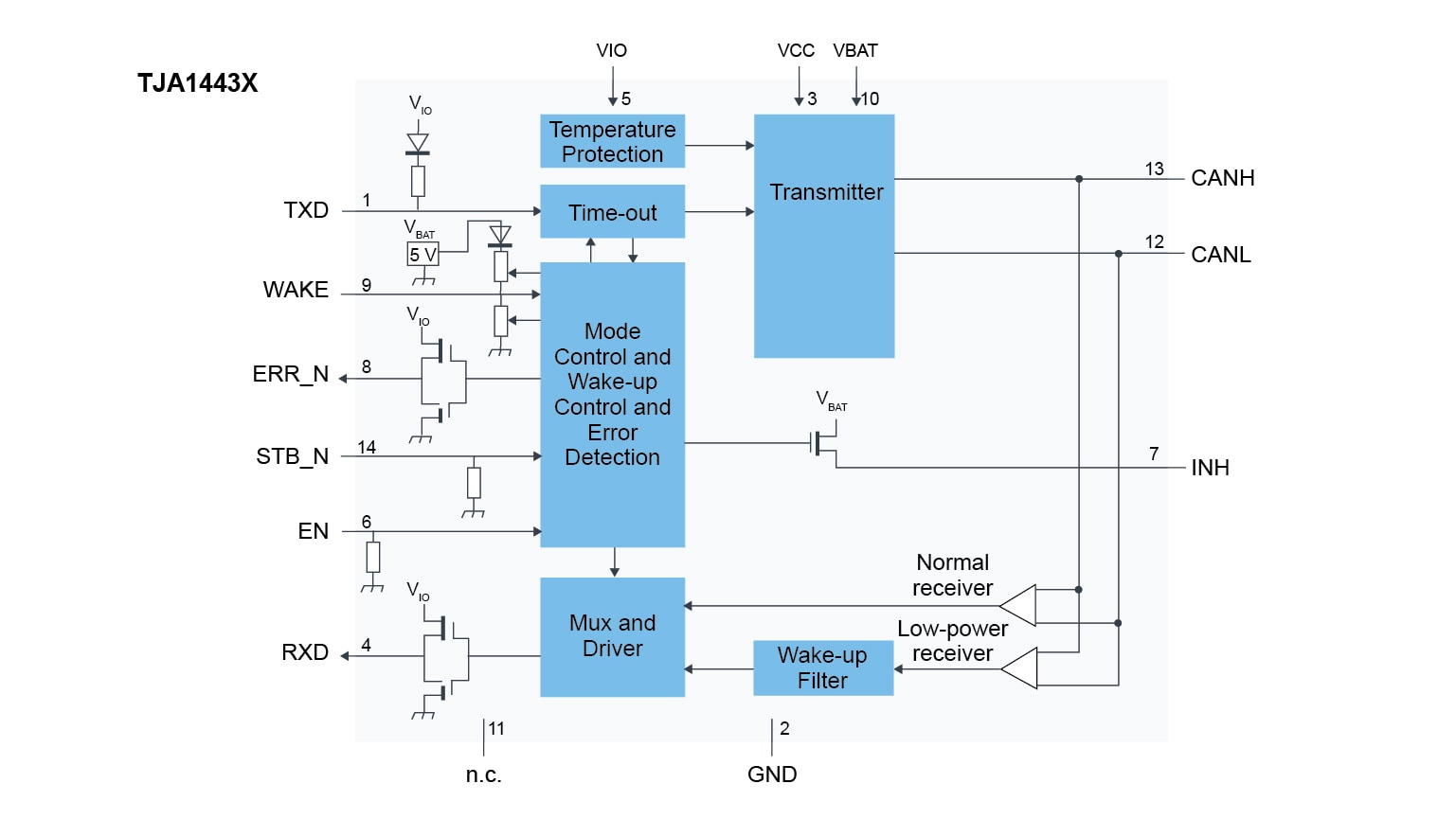

TJA1443 Block Diagram

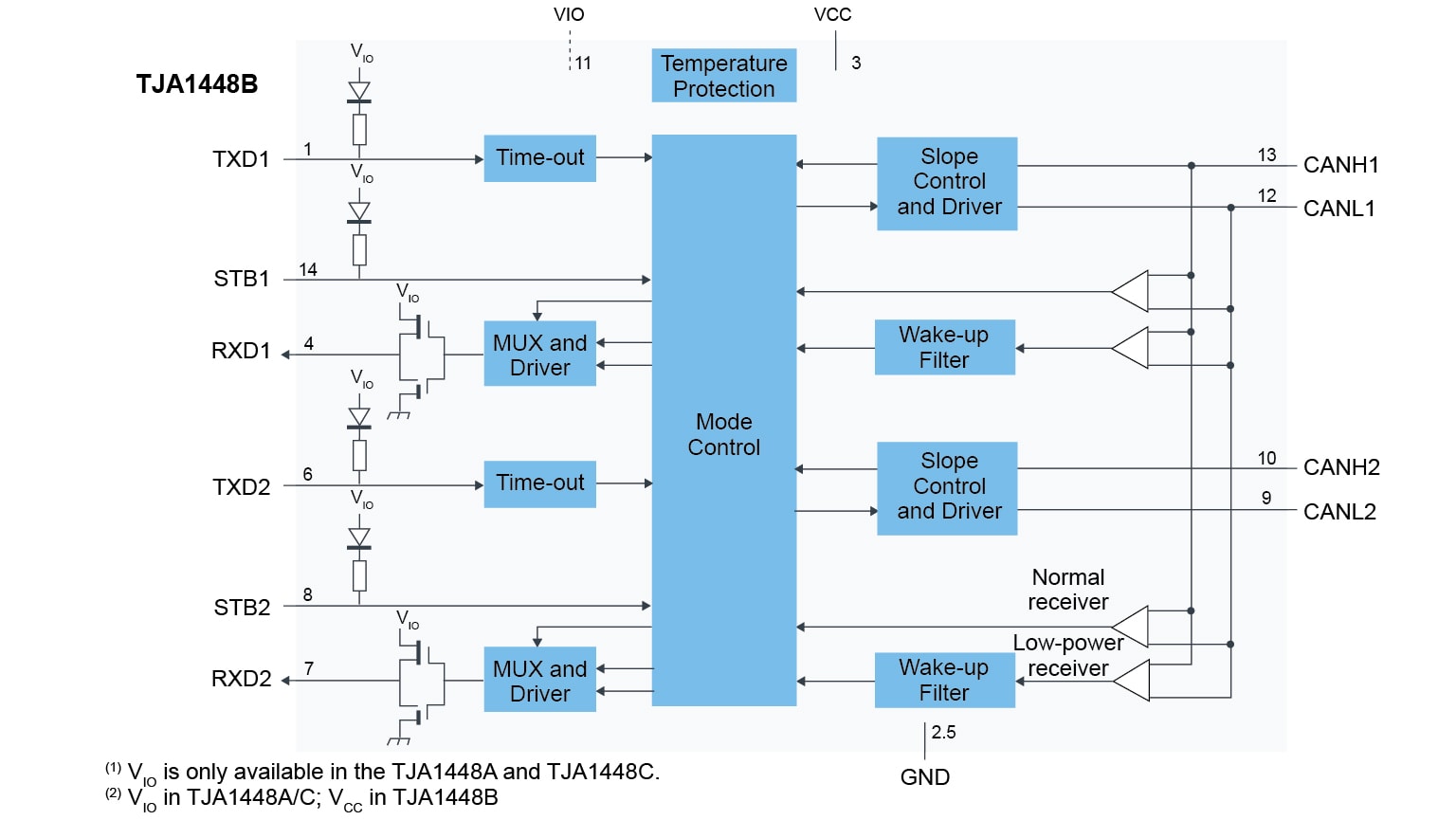

TJA1448 Block Diagram

Get diagram PDF

Features

Key Features

HS CAN and CAN FD up to 5 Mbit/s
Compliant to ISO 11898-2:2016, SAE J2284-1 to -5 and SAE J1939-14
Fully interoperable with high-speed classical CAN and CAN FD transceivers
VeLIO compliant
AEC-Q100 Grade-1 (Tambient = 125˚C) qualified
AEC-Q100 Grade-0 (Tambient = 150˚C) available on request (TJR144x)
Excellent ESD robustness of ±8kV at HBM according to IEC 61000-4-2

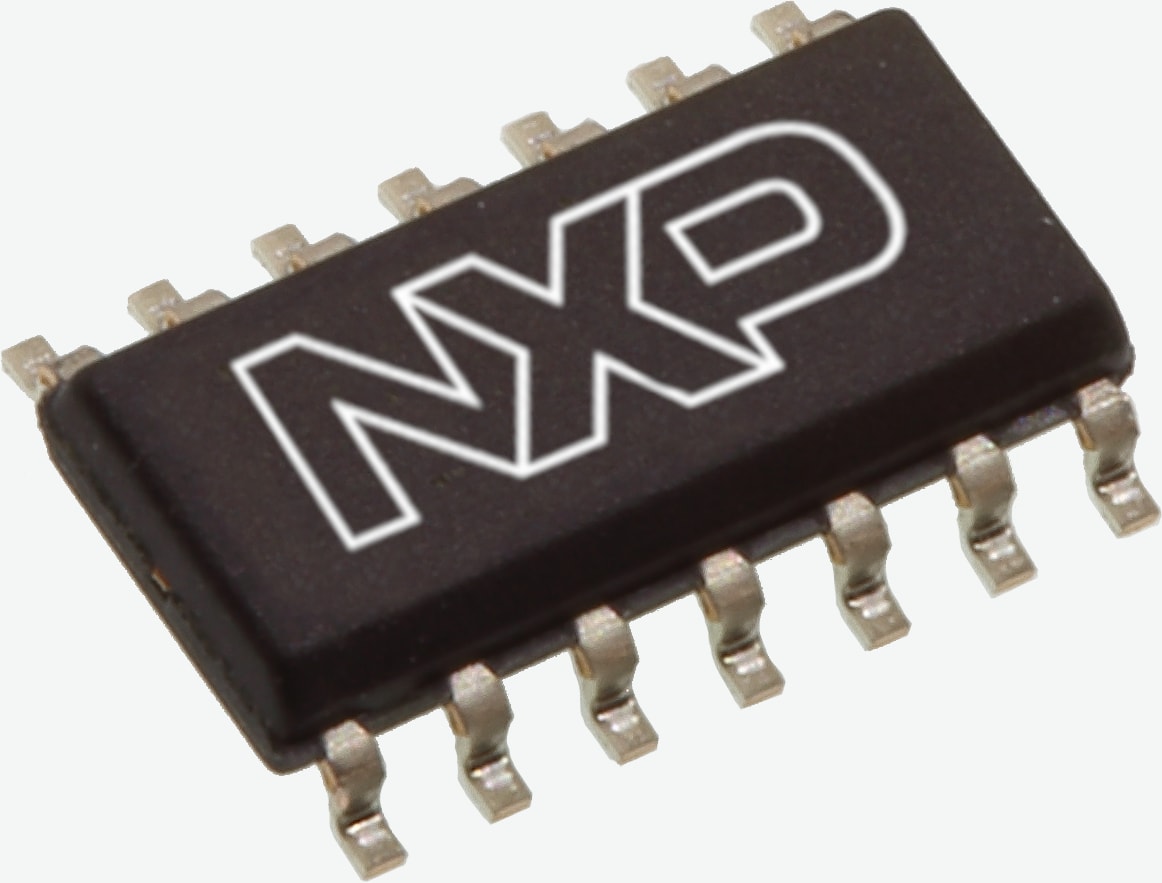

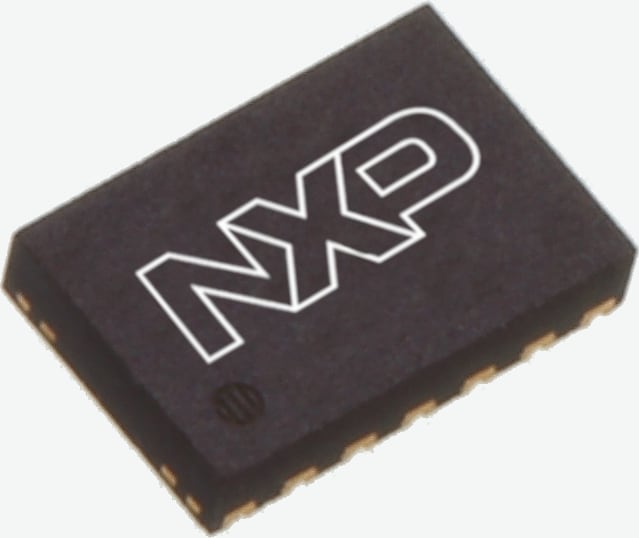

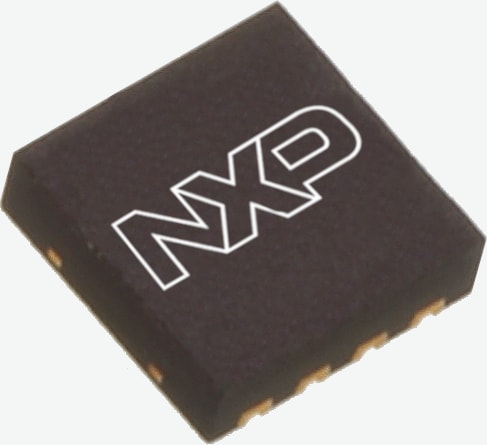

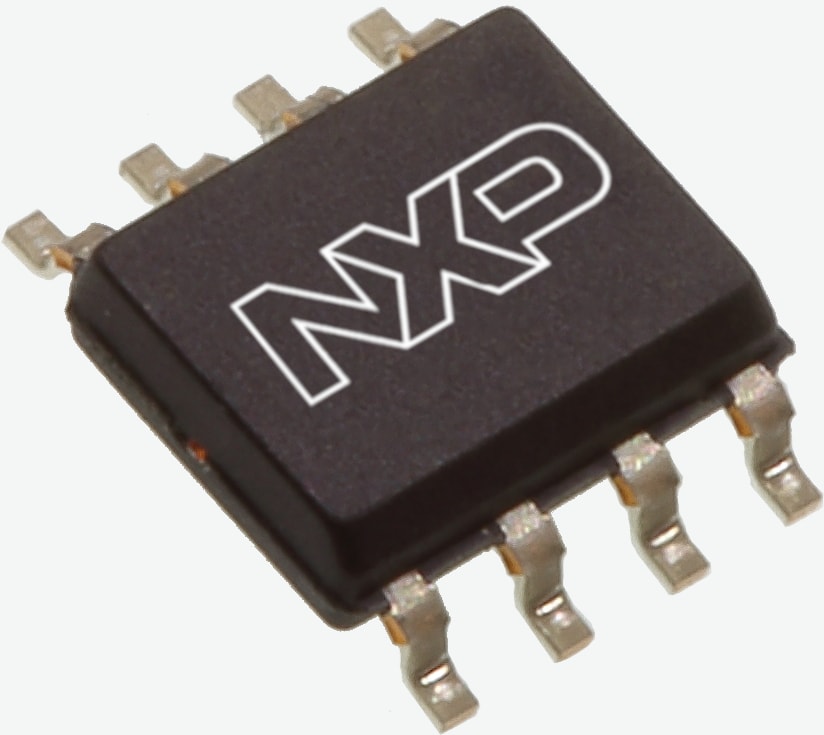

Available in SO and HVSON package
Robust design with self-diagnostics
Gap-free predictable and fail-safe behavior over full range of product limiting values
Overtemperature protection
Designed for 20 PPB
Dark green product (RoHS compliant)
Pin-to-pin and software compatible with NXP’s older generation HS CAN products
One family: Know one, know them all!

Product Longevity Program

This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The TJA1441, TJR1441, TJF1441, TJA1442, TJR1442, TJA1443, TJR1443, TJA1448 and TJR1448 is included in the 15-year program

Part numbers include: TJA1441AT, TJA1441ATK, TJA1441BT, TJA1441BTK, TJA1441DT, TJA1441DTK, TJA1442AT, TJA1442ATK, TJA1442BT, TJA1442BTK, TJA1443AT, TJA1443ATK, TJA1448AT, TJA1448ATK, TJA1448BT, TJA1448BTK, TJA1448CTK, TJF1441AT, TJR1441AT, TJR1441ATK, TJR1441BT, TJR1441BTK, TJR1441DT, TJR1441DTK, TJR1442AT, TJR1442ATK, TJR1442BT, TJR1442BTK, TJR1443AT, TJR1443ATK, TJR1448AT, TJR1448ATK, TJR1448BT, TJR1448BTK, TJR1448CTK.

Comparison Table

	TJA1441	TJA1442	TJA1448	TJA1443
Features	Basic CAN	Standby Mode CAN	Dual Channel Standby Mode CAN	Sleep Mode CAN
V_CC Supply Voltage	5 V ± 10%	5 V ± 10%	5 V ± 10%	5 V ± 10%
V_IO Supply Range	2.95 V - 5.5 V	2.95 V - 5.5 V	2.95 V - 5.5 V	2.95 V - 5.5 V
Supply Gap Free Operation
CAN FD Maximum Datarate	5 Mbps	5 Mbps	5 Mbps	5 Mbps
CAN Pin Bus Capacitance	20 pF	20 pF	20 pF	20 pF
Standby Mode Current "Only V_CC" (Max)	-	12 µA	18 µA	-
Standby Mode Current "V_CC and V_IO" (Max)	-	12 µA	18 µA	22 µA
Standby Mode Current "Only V_IO" (Max)	-	11 µA	16 µA	21 µA
Sleep Mode Current (Max)	-	-	-	28 µA
ESD IEC61000-4-2	± 8 kV	± 8 kV	± 8 kV	± 8 kV
CAN Bus Robustness	-36 V/+40 V	-36 V/+40 V	-36 V/+40 V	-36 V/+40 V
WUP Filter Time	-	0.5 µs - 1.8 µs	0.5 µs - 1.8 µs	0.5 µs - 1.8 µs
Loop Delay (Max)	230 ns	230 ns	230 ns	230 ns
ISO 11898-2:2016 Compliance
SAE J2284-1 to -5 Compliance
3 V 3 MCU Interface Compliance (V_IO pin)	TJA1441A	TJA1441A	TJA1448A/C	TJA1443A
5 V 0 MCU Interface Compliance	TJA1441A/B	TJA1441A/B	TJA1448A/B/C	TJA1443A
VeLIO Compliance
AEC-Q100 Grade-1
AEC-Q100 Grade-0	TJR1441	TJR1442	TJR1448	TJR1443
Packages	SO8, HVSON8	SO8, HVSON8	SO14, HVSON14	SO14, HVSON14
