Evaluation Kit - MC13892, i.MX35/51 Power Management

KIT13892VKEVBEJ Active

Roll over image to zoom in

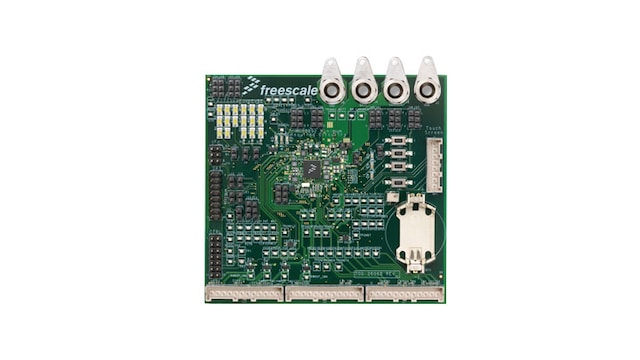

This EVB shows the functionality of the MC13892JVK device set up under specific operation parameters.

The MC13892 is a Power Management Integrated Circuit (PMIC) for our i.MX51, i.MX37, i.MX35, and i.MX27 application processors, targeting netbooks, ebooks, mobile internet devices, smart phones, personal media players, and personal navigation devices. For evaluation purposes this KIT13892VKEVBEJ comes with the KITUSBCOMDGLEVME board for communication and control purposes.

Product Details

Supported Devices

Power Management

5 V PMIC Solutions

  • MC13892: Power Management IC (PMIC) for i.MX35/51

Features

Connectivity

  • Four-wire resistive touchscreen interface connector
  • I 2C and SPI communication interface connectors
  • Power control interface connector
  • Banana jack connectors for battery and charger attachments
  • Three 12-pin connectors for switchers, linear regulators, and NMOS power gate switches accessibility
  • Several jumper configurations for PMIC mode of operation

User Components

  • Three RGB LEDs for color mixing or general-purpose signaling
  • 17 white LEDs for backlighting applications
  • Two green LEDs for RESETB and RESETBMCU signaling
  • One red LED for charger attachment signaling

Test Points

  • Scattered test points for different measurements

General Specifications

  • Low Noise Design
  • Battery holder for a CR2477 Li-Ion/Li-Pol coin cell
  • Four Layer Board
  • Top and bottom Layer component placement
