PF Series Programmer

KITPFPGMEVME Active

Roll over image to zoom in

The NXP® PF series programmer is a development tool designed to provide easy configuration of PF series devices and to facilitate programming the device’s one-time programmable (OTP) registers.

For additional information and sample availability, contact your local NXP Sales Office.

NXP recommends the use of the KITPF0100SKTEVBE to support programming and verification of the MMPF0100 devices, while using the KITPFPGMEVME.

Note: Please download the Rev 4.0 GUI for Revision B KITPFPGMEVME boards.

Product Details

Supported Devices

Power Management

PMICs

  • MMPF0100: 14-Channel Configurable PMIC

Features

Connectivity

  • USB to I2C interface to access device registers
  • Standard mini-USB (Type B) connector for communication with PC

Power Management

  • Generates voltage for programming the OTP registers

User Components

  • LED indicators for easy monitoring of programming status

General Specifications

  • Graphical user interface (GUI) to program regulator voltages and start up sequences, save, and recall user-defined configuration files and develop configuration macros with a powerful scripting tool

Buy Options

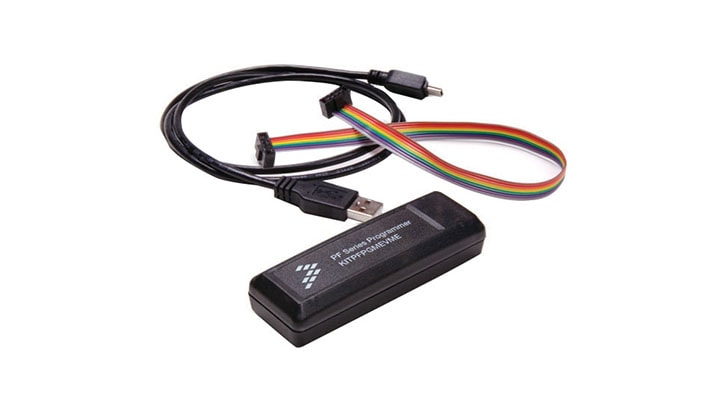

KITPFPGMEVME-Image

Click to expand

  • KITPFPGMEVME
    Active

  • Evaluation Kit Programmer - PF Series Programmer.

    • KITPFPGMEVME hardware
    • Various Cables (2)
    • Quick Reference Guide
  • $135.70 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
