Schematic S08QL8 LITE

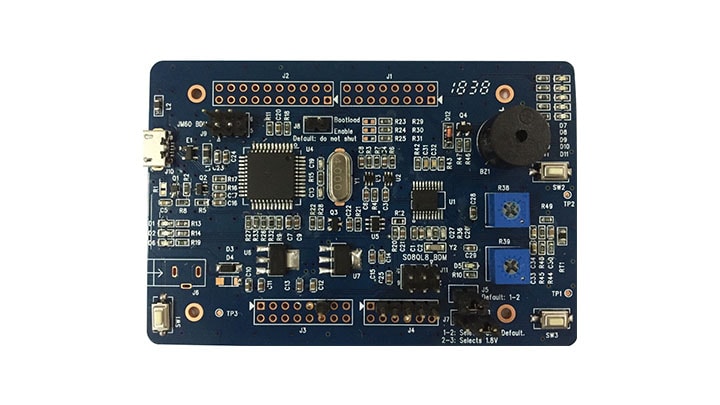

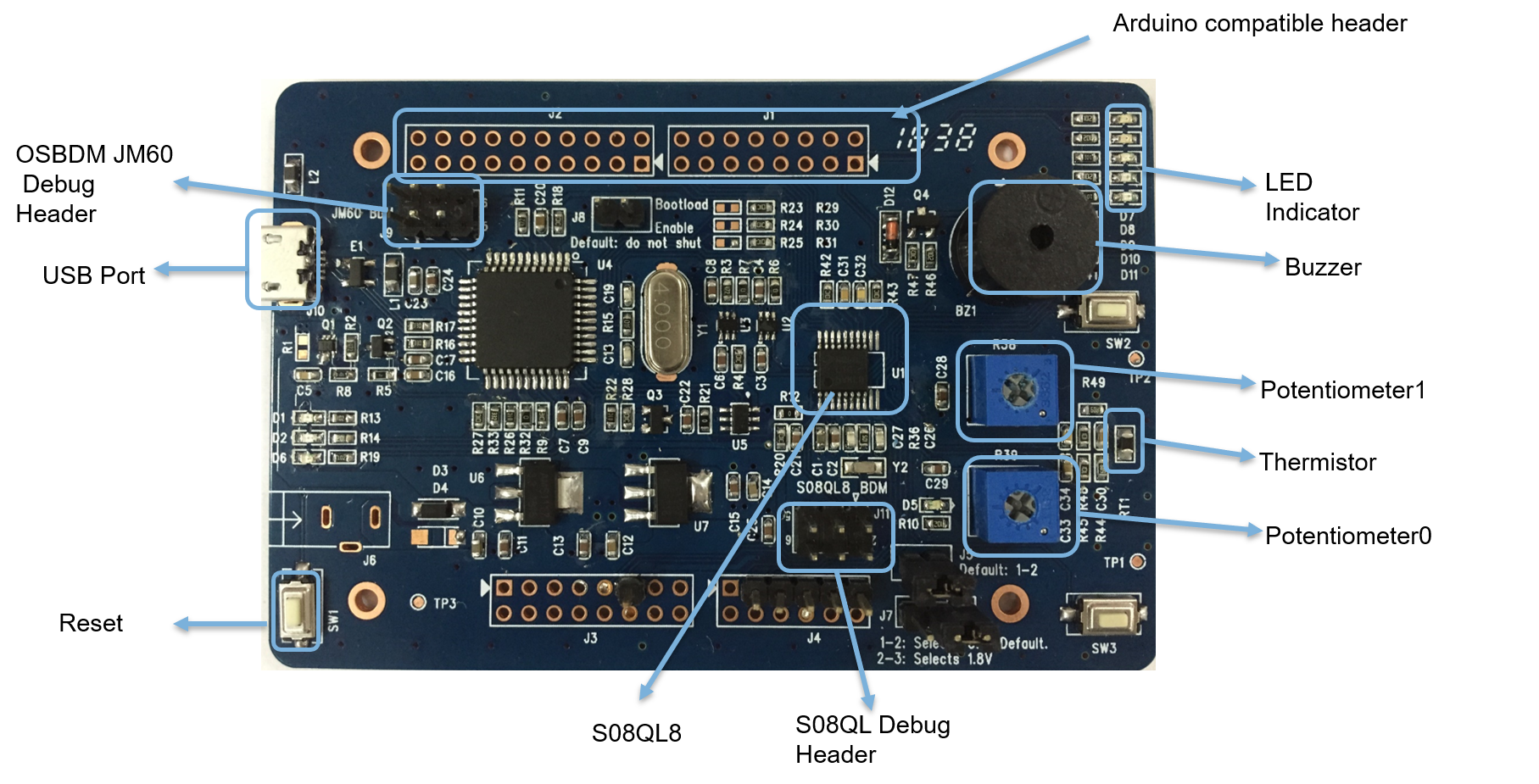

S08QL8-Lite Evaluation Board
The S08QL8-Lite is cost-effective development hardware for the NXP S08QL ultra-low-power 8-bit MCUs. It’s small, yet powerful, with rich integrated peripherals to evaluate all features of S08QL MCUs. S08QL8-Lite support OSBDM debugs, so it can be used to debug without an external debugger tool. Sample code and schematic are free to download for the user’s reference.
Product Details
Block Diagram
Choose a diagram:
Features
MCU
- Ultra-low-power 8-bit S08QL, 8 kB Flash, 512 B RAM, 1.8 to 3.6 V, -40 to 85 °C, 20TSSOP.
- 12-bit ADC, Analog Comparator, RTC, UART, Support low power run mode.
Resource
- On-board potentiometer to evaluate the ADC and Analog Comparator.
- On-board temperature sensor connected to ADC input.
- On-board buzzer module drive by timer/PWM.
Interface
- On board OSBDM debugs through a USB interface, no need an external debugger.
- Arduino® compatible interface.
Documentation
Quick reference to our documentation types.
3 documents
-
Data Sheet
MC9S08QL8 Series Data Sheet
-
Quick Reference Guide
S08QL8-Lite Quick Start Guide
Design Resources
Software
Quick reference to our software types.
2 software files
-
BSPs and Device Drivers
OSBDM Firmware
-
Development IDEs and Build Tools
CodeWarrior® for MCUs (Eclipse IDE) - ColdFire®, 56800/E DSC, Qorivva® 56xx, RS08/S08, S12Z - 11.1
Note: For better experience, software downloads are recommended on desktop.
