8-bit General Purpose SE MCUs

Product Details

Block Diagram

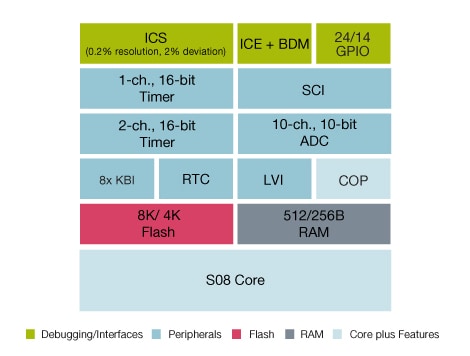

NXP S08SE Microcontroller Block Diagram

Get diagram PDF

Features

8-bit HCS08 Central Processor Unit (CPU)

Up to 20 MHz HCS08 (10 MHz internal bus frequency)
HC08 instruction set with added BGND instruction
Supports up to 32 interrupt/reset sources

Integrated Third-Generation Flash Memory and RAM

Embedded flash that is in-application reprogrammable over the full operating voltage and temperature range with a single power supply
Fast, byte-writable programming, as fast as 20 µs (burst mode)
Up to 100,000 write/erase cycles at typical voltage and temperature (10k minimum write/erase)
100 years typical data retention (15 years minimum)

Flexible Clock Options

Internal clock source (ICS) module with a frequency-locked loop (FLL) controlled by internal or external reference
Precision trimming of internal reference allows typical 0.2 percent resolution and 2 percent deviation over operating temperature and voltage
Internal reference can be trimmed from 31.25 kHz to 38.4 kHz, allowing for up to 10 MHz FLL output
Low-power oscillator module (XOSC) with software-selectable crystal or ceramic resonator range, 31.25 kHz to 38.4 kHz or 1 MHz to 16 MHz

22 I/O Pins, One Input-Only Pin and One Output-Only Pin

Outputs 10 mA each, 60 mA max for package
Software-selectable pull-ups on ports when used as inputs; internal pull-up on reset and interrupt request (IRQ) pin
Software-selectable slew rate control and drive strength on ports when used as output
8-pin keyboard interrupt module with softwareselectable polarity on edge or edge/level modes

Ganged Output Option for PTB (5:2) and PTC (3:0)

Allows single write to change state of multiple pins
Provides option to tie multiple pins from different ports to same control registers

Multiple Serial Communication Options

Serial communication interface module with option for 13-bit break capabilities and double-buffered transmit and receive

Analog-to-Digital Converter (ADC)

10-channel
10-bit
Automatic compare function, software programmable for greater than, equal to or less than conditions
Asynchronous clock source
Temperature sensor
Hardware triggerable using the RTC counter
Low-power and high-speed options

Real-Time Counter (RTC)

8-bit modulus counter with binary or decimal-based prescaler
Three software selectable clock sources
- 1 kHz internal low-power oscillator
- External clock and 32 kHz internal clock

Three Timer Modules

Programmable 16-bit timer/PWM modules (TPM1 and TPM2)

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
Low-voltage detection with reset or interrupt
Illegal opcode detection with reset
Security feature for flash and RAM
Always-on power-on reset (POR) circuitry

Development Support

Background debugging system
On-chip in-circuit emulation (ICE) with real-time bus capture

Part numbers include: MC9S08SE4CTG, MC9S08SE4CWL, MC9S08SE4MWL, MC9S08SE4VTG, MC9S08SE8CTG, MC9S08SE8CWL, MC9S08SE8MWL, MC9S08SE8VTG, MC9S08SE8VWL.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 22 documents

^{Reference Manual}
MC9S08SE8, MC9S08SE4 - Reference ManualFeatured

PDFRev 3Apr 8, 20093.0 MBMC9S08SE8RMEnglish
^{Fact Sheet}
MC9S08SE Do more with less - Fact SheetFeatured

PDFRev 0Feb 12, 2009207.8 KBMC9S08SE8FSEnglish
^{Data Sheet}
MC9S08SE8 Series - Data Sheet

PDFRev 4Apr 29, 2015518.5 KBMC9S08SE8English
^{Reference Manual}
HCS08 Family Reference Manual

PDFRev 2May 4, 20074.9 MBHCS08RMV1English
Sign in required
^{Application Note}
AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note

PDFRev 0May 31, 20132.2 MBAN4752English
Sign in required
^{Application Note}
AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note

PDFRev 0May 30, 2013477.3 KBAN4753English
^{Application Note}
Migrating from the MC68HC908QY to the MC9S08SH

PDFRev 0Jul 20, 2008186.4 KBAN3590English
^{Application Note}
A Miner's Lamp Using MC9S08QG4

PDFRev 1Jul 20, 2008227.6 KBAN3601English
^{Application Note}
Driving a Stepper Motor based on the MC9S08QD4 and other 8-bit Families. Using input Signals to Determine the Position of the Stepper Motor.

PDFRev 0Apr 11, 2008498.2 KBAN3602EnglishAssociated File: AN3602SW
^{Application Note}
Low Power Management Unit with MC34700

PDFRev 0Feb 6, 2008685.3 KBAN3592EnglishAssociated File: AN3592SW
^{Application Note}
AN3499, Clock Options on the HC9S08 Family - Application Notes

PDFRev 0Jan 15, 2008576.2 KBAN3499EnglishAssociated File: AN3499SW
^{Application Note}
AN3552, Analog Comparator Tips and Tricks for the MC9S08QG MCU - Application Notes

PDFRev 0Nov 19, 20072.1 MBAN3552English
^{Application Note}
Differences between the TI MSP430 and MC9S08QE128 and MCF51QE128 Flexis^® Microcontrollers

PDFRev 0Oct 1, 2007305.2 KBAN3502English
^{Application Note}
A Software Approach to Using Nested Interrupts in HCS08

PDFRev 0Jul 13, 2007253.5 KBAN3496English
^{Application Note}
Low-Power Design Enabled by MC9S08QE128 and MCF51QE128 Microcontrollers

PDFRev 0Jun 26, 2007333.5 KBAN3460English
^{Application Note}
Migrating within the contoller continuum

PDFRev Rev. 0Jun 24, 20072.0 MBAN3465EnglishAssociated File: AN3465SW
^{Application Note}
AN3467, Using Processor Expert^® with Flexis^® ™ Microcontrollers - Application Notes

PDFRev Rev. 0May 1, 20077.1 MBAN3467EnglishAssociated File: AN3467SW
^Errata
Mask Set Errata: 0M82J - Errata

PDFRev 0Nov 11, 200926.2 KBMSE9S08SE8_0M82JEnglish
^{Product Change Notice}
Copper Wire Conversion for Microcontroller and Microprocessor Devices

HTMRev 0May 20, 2014311.5 KBPCN16235English
^{Reliability and Quality Information}
VDE IEC 60730 Class B test report for the MC9S08 MCU

PDFRev 1.0Sep 15, 20101.0 MBVDE_S08_CLASSB_TEST_REPORTEnglish
Sign in required
^{Reliability and Quality Information}
Tuev IEC 60730 SRAM test certificate for MC9S08 controller

PDFRev 1.0Sep 15, 2010194.7 KBTUEVCERTIFICATIONWALKPATRAMEnglish
Sign in required
^{Reliability and Quality Information}
Tuev IEC 60730 CPU test certificate for MC9S08 controller

PDFRev 1.0Sep 15, 201059.2 KBTUEVCPUCLASSCCERTEnglish
Sign in required

Show All

Design Resources

Hardware

Quick reference to our board types.

5 hardware offerings

^{Emulators, Probes, and Programmers}
Universal Multilink Development InterfaceFeatured

UMultilink
^{Evaluation and Development Boards}

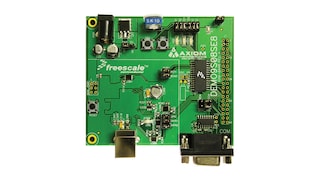

S08SE Evaluation and Demonstration BoardFeatured
