8-bit Cost-Effective with CAN D MCUs

Overview

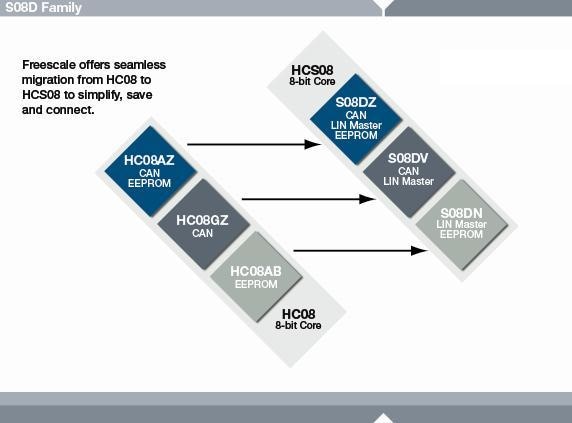

We have developed the industry's first 8-bit microcontroller family with embedded CAN, embedded EEPROM and on-chip emulation/debug for the automotive and industrial markets. The S08D family offers designers scalability and flexibility of migration with pin, peripheral and tool compatibility between S08D family devices.

This highly integrated next generation family of MCUs is packed with features designed to provide increased performance, as well as save power, development time, board space and cost.

Learn More

Features

S08 CPU

40 MHz core speed, 20 MHz bus speed on S08 CPU
HC08 instruction set with added BGND instruction

On-Chip Memory

Up to 128 KB flash read/program/erase over full operating voltage and temperature
Up to 2 KB EEPROM in-circuit programmable memory; 8-byte single-page or 4-byte dualpage erase sector; program and erase while executing flash; erase abort
Up to 8 KB RAM (16:1 flash/RAM, ratio better than competition)

Power Saving Modes

Two very low-power stop modes
Very low-power, real-time interrupt for use in run, wait and stop modes

Clock Source Options

Oscillator (XOSC)—Loop-control Pierce oscillator; crystal or ceramic resonator range of 31.25 kHz–38.4 kHz or 1 MHz–16 MHz
Multi-purpose clock generator (MCG)–PLL and FLL modes; internal reference clock with trim adjustment; external reference with oscillator/resonator options

System Protection

Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
Low-voltage detection with reset or interrupt; selectable trip points
Illegal opcode detection with reset
Illegal address detection with reset
Flash block protect
EEPROM block protect

Peripherals

ACMPx—Analog comparators with selectable interrupt on rising, falling or either edge of comparator output; compare option to fixed internal bandgap reference voltage
MSCAN—CAN protocol—Version 2.0 A, B; standard and extended data frames; support for remote frames; five receive buffers with FIFO storage scheme; flexible identifier acceptance filters programmable as: 2 x 32-bit, 4 x 16-bit, or 8 x 8-bit
SCIx—SCI(s) with LIN 2.0 Protocol and SAE J2602 compliance; leader extended break generation; follower extended break detection; LIN follower supplement on SCI1; automatic baud rate correction; message time-out detection
SPI—Full-duplex or single-wire bi-directional; double-buffered transmit and receive; leader or follower mode; MSB-first or LSB-first shifting
I²C—Up to 100 kbps with maximum bus loading; multi-controller operation; programmable target address; interrupt-driven, byte-by-byte data transfer; broadcast mode enabled
TPMx—One 6-channel (TMP1) and one 2-channel (TPM2); selectable input capture, output compare or buffered edge-aligned PWM on each channel
RTC (Real-time counter)—8-bit modulus counter with binary or decimal-based prescaler; external clock source for precise time base, time-of-day calendar or task scheduling functions; free running, on-chip, low-power oscilator (1 kHz) for cyclic wake-up without external components

Development Support

Single-wire background debug (BDM) interface
On-chip, in-circuit emulation (ICE) with real-time bus capture

Input/Output

87 general-purpose I/O pins and one input-only pin
32 interrupt pins with selectable polarity on each pin
Hysteresis and configurable pull-up device on all input pins
Configurable slew rate and device strength on all output pins

Package Options

100 LQFP 14 x 14 mm
64-pin low-profile quad flat pack (LQFP)—10 x 10 mm
48-pin LQFP—7 x 7 mm
32-pin LQFP—7 x 7 mm

Miscellaneous

EMC performance
Wide operating voltage range: 2.7V–5.5V

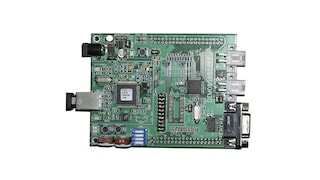

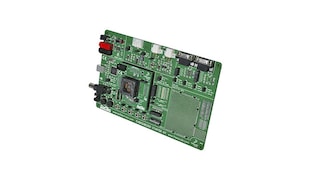

Background Debugging System

On-chip BDM

Package

Pin-compatible with SH, QG family

Product Longevity Program

This product is included in our product longevity program, with assured supply for a minimum of 15 years after launch
