Arm® Cortex®-A5-Based Microprocessors with 1.5MB SRAM, LCD, Security, 2x Ethernet and L2 Switch

VF5xx

Click over video to play

The VFxxx VF5xx family is a single-core (Arm® Cortex®-A5) solution with 1.5 MB on-chip SRAM, DDR2/3 and dual Execute-in-Place (XIP) quad SPI memory interfaces, dual high-speed USB with PHY, dual Ethernet with an L2 switch, and a digital video camera interface. VF5xx devices are also software and pin compatible with the VF6xx VFxxx Controller family that also includes a second core (Cortex-M4 core) potentially eliminating the need for an external MCU or field programmable gate array (FPGA).

VFxxx devices are ideal for applications including simple HMI in appliances and industrial machines, secure control of infrastructure and manufacturing equipment, energy conversion applications such as motor drives and power inverters, ruggedized wired and wireless connectivity, and control of mobile battery-operated systems such as robots and industrial vehicles. VFxxx devices also provide a powerful combination of on-chip encryption, secure boot, anti-tamper and anti-clone capabilities to secure sensitive or critical infrastructure applications such as smart grid or industrial control.

Product Details

Select a section:

Block Diagram

VF5xx Block Diagram

VFxxx VF5xx Block Diagram
Get diagram PDF

Features

  • Cortex-A5
  • Optional 512 KB L2 cache
  • 1.5 MB on-chip SRAM (1.0MB when L2 cache is selected)
  • Dual USB 2.0 OTG with integrated PHY
  • Dual Ethernet 10/100 MAC with L2 switch
  • Digital video camera interface
  • Dual display controllers supporting resolutions up to SVGA or one display up to XGA (1024x768)
  • High-assurance boot with crypto acceleration
  • 800 MHz DDR3 and LPDDR2 support with 8-bit ECC protection
  • NAND Flash controller and dual quad-SPI with Execute-In-Place (XIP)
  • Dual 12-bit ADC and DAC; dual SDIO

Documentation

Quick reference to our documentation types.

Filters

1-5 of 16 documents

Show All

Design Resources

Select a section:

Design Files

Filters

2 design files

  • Models

    VFxxx F Series 364MAPBGA BSDL Silicon Revision 1.1

    BSDLRev 0May 29, 2013 00:00:0029.9 KBVFXXX_364_F_BSDL
    Download
  • Models

    VFxxx F Series 364MAPBGA IBIS Model Silicon Revision 1.1

    IBSRev 0Jan 11, 2017 00:00:0015.1 MBVFXXX_364_F_IBS
    Download

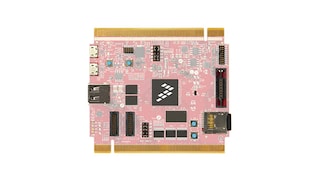

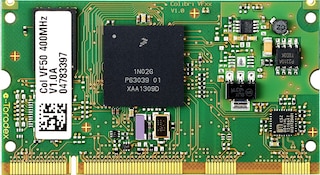

Hardware
