EXPLORE-NFC - Exclusive from element14

PNEV512R Preproduction

Roll over image to zoom in

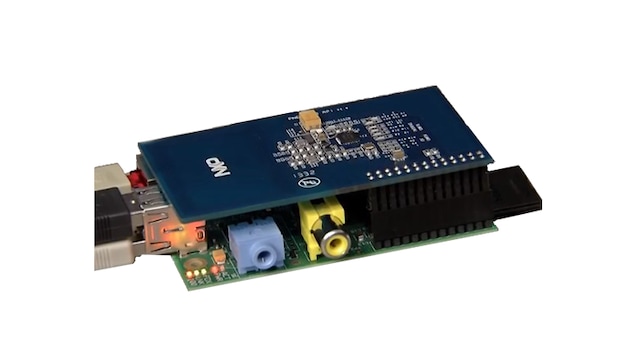

EXPLORE-NFC is a high-performance full NFC expansion board for the Raspberry Pi, only available through element14: exploreNFC

Product Details

Supported Devices

RFID

NFC Readers

Features

  • Based on NXP® PN512 full NFC forum-compliant NFC IC, meeting compliance with all 3 NFC modes (Reader, P2P, and Card Emulation)
  • Reader mode supports 4 NFC tag types and NXP MIFARE® proprietary command

Software

  • Software available for Card Polling: find out which contactless smart card you have in your pocket
  • Software available for P2P Communication: transmit data from the RaspberryPI to the NFC enabled cell phone through NFC
  • Software available for Card Emulation: implement your Paper Chase Game using NFC on the RaspberryPI together with your NFC enabled cell phone
  • Integrated high-performance antenna.
  • Complete with MIFARE Ultralight® RFID card

Buy Options

PNEV512R-Image

Click to expand

  • PNEV512R

  • EXPLORE-NFC - Exclusive from element14.
