PCA9451A-EVK
Active -

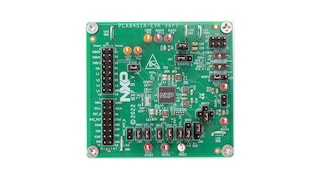

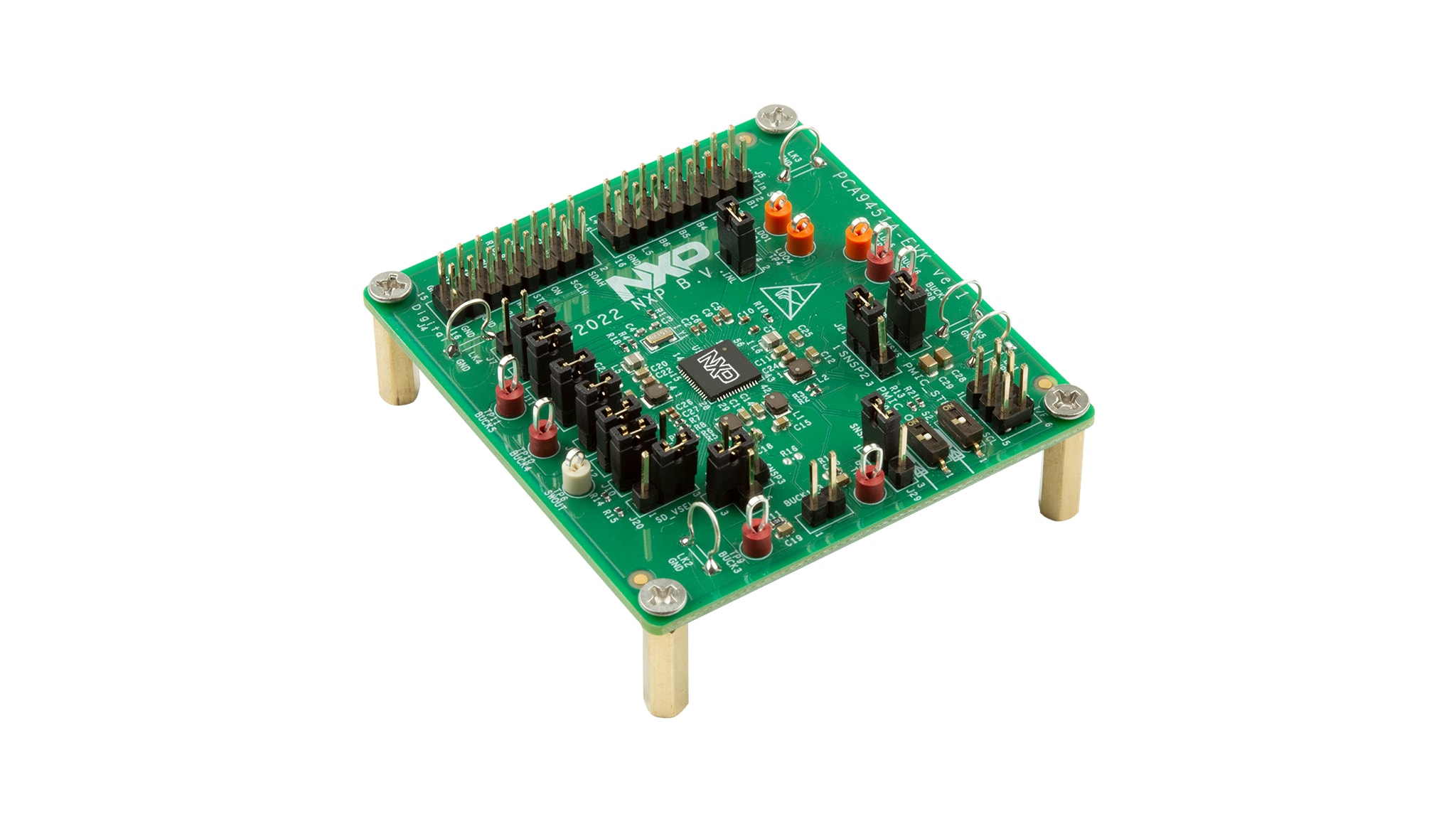

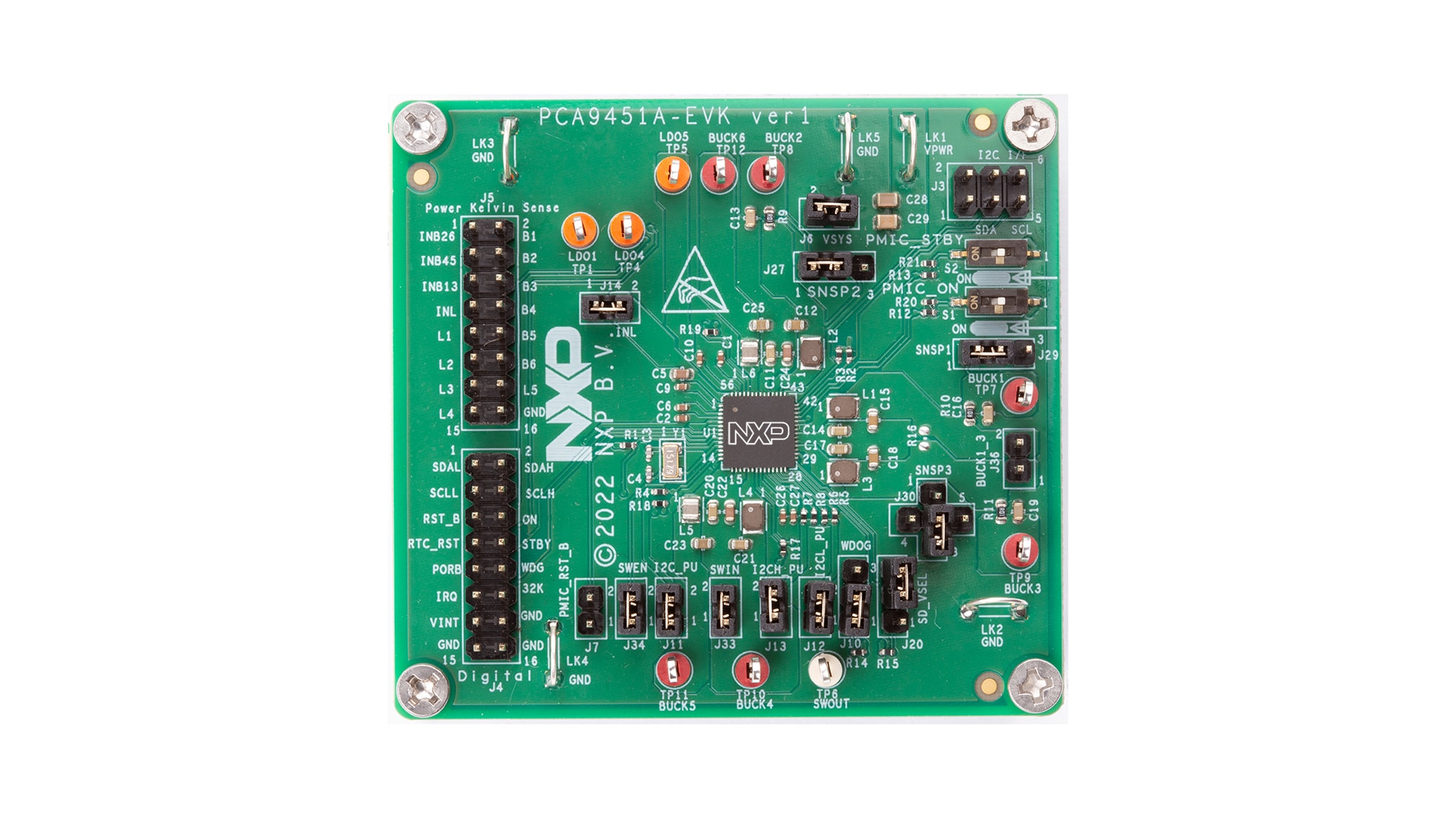

PCA9451A Evaluation Board .
- Assembled and tested PCA9451A evaluation board in an anti-static bag
- USB to FDTI Serial cable for I²C communication
- Spare jumpers
The PCA9451A is a general purpose single chip power management IC (PMIC) designed to support different microcontrollers and microprocessors for different applications for the consumer and industrial markets. The PCA9451A provides an out-of-the-box power supply solution to support i.MX 93 family processors.
The device provides six high efficiency step-down regulators, three LDOs, one 400 mA load switch, 2-channel level translator and 32.768 kHz crystal oscillator driver.
This PCA9451A-EVK board provides full access to all the features in the PCA9451A device. The evaluation kit comes with a FTDI cable used as a communication interface between I²C and USB to have control of the PMIC's configuration registers using the PCA9451A GUI software.
Note: To see the product features close this window.
PCA9451A Evaluation Board .
Distributor | Region | Inventory | Inventory Date | Order |
---|
Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
Quick reference to our documentation types.
3 documents
Please wait while your secure files are loading.
2 design files
Please wait while your secure files are loading.
Quick reference to our software types.
1 software file
Note: For better experience, software downloads are recommended on desktop.
Please wait while your secure files are loading.
