Programming Socket Board for VR5510 PMIC

KITVR5510SKTEVM Active

Roll over image to zoom in

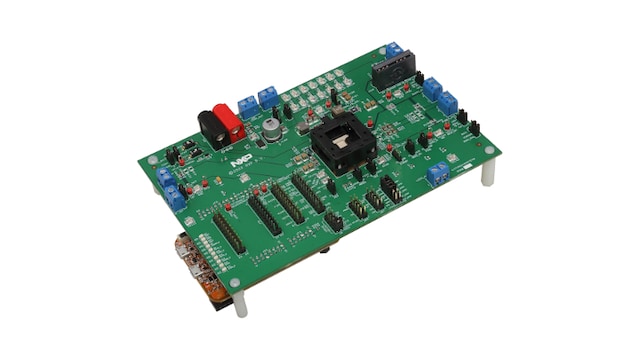

The KITVR5510SKTEVM is a programming board featuring a 56-pin QFN socket for VR5510 PMIC. The kit integrates all hardware needed to program the OTP registers in the PMIC. It integrates a communication bridge based on the FRDM-K82F.

Supported Devices

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

Features

Programming Socket

  • Clamshell 56-pin QFN socket

System Features

  • 12 V operating input voltage range
  • USB to I2C communication via the FRDM-KL25Z interface
  • Up to 3.0 MHz I2C communication
  • Selectable hardwire default PMIC configuration or Debug mode
  • Selectable operation mode (Normal/Standby mode)
  • Advance system monitoring/diagnostic via PMIC and/or system AMUX
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage

Buy Options

KITVR5510SKTEVM-Image

Click to expand

KITVR5510SKTEVM
Active

Programming Socket Board for VR5510 PMIC.

    $427.80 USD
    In Stock :8

    Normally ships 1-2 business days

    ADD TO CART
