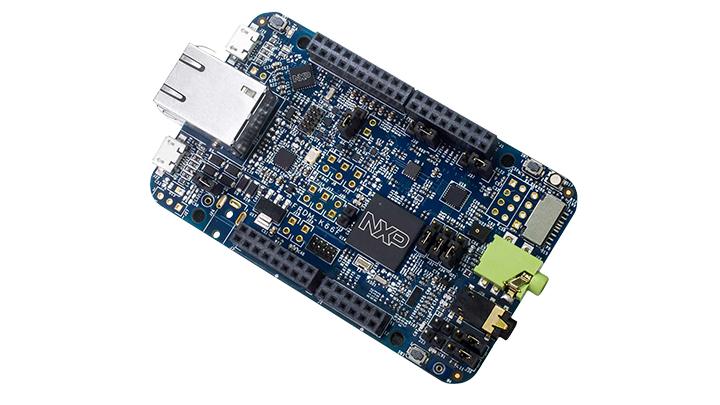

Freedom Development Platform for Kinetis® K66, K65, and K26 MCUs

FRDM-K66F

Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

K2x USB

K6x Ethernet

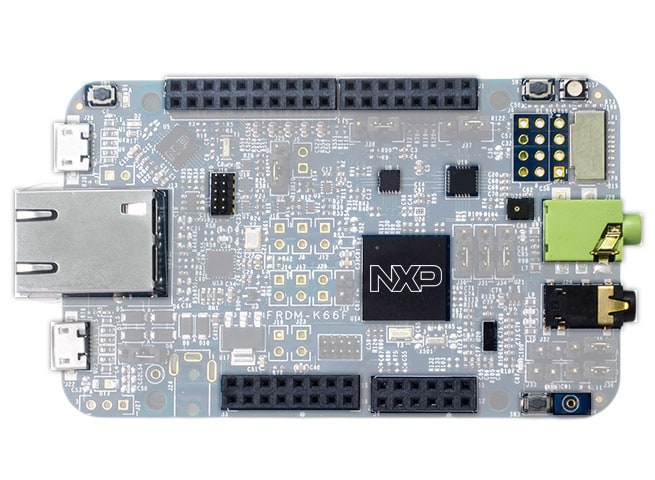

Features

Microcontroller

    MK66FN2M0VMD18 MCU

  • 180 MHz
  • 2 MB Flash
  • 256 KB SRAM
  • 144 BGA package

Power Management

    Flexible power supply option

  • OpenSDAv2.1 USB
  • K66F USB
  • External Source

Connectivity

  • Dual role high-speed USB interface with Micro-B USB connector
  • Ethernet connectivity
  • Arduino® Rev3 compatible I/O connectors
  • Arduino® Rev3 compatible I/O connectors
  • Optional header for add-on RF module: RF24L01+ Nordic 2.4 GHz Radio
  • Optional header for add-on Bluetooth module: JY-MCU BT Board V1.05 BT

Memory

  • Micro SD card socket

Audio

  • Audio codec
  • Digital MEMS microphone
  • Auxiliary audio input jack
  • Headset/Analog microphone jack
  • Two inputs for additional analog microphones

Debug

  • Programmable JLink OpenSDAv2.1 debug interface implementing SWD debug protocol and virtual COM port functionality

Sensors

  • Accelerometer & Magnetometer (FXOS8700CQ)
  • Gyroscope (FXAS21002)

User Components

  • Two user push buttons
  • RGB LED

Buy Options

FRDM-K66F-Image

Click to expand

  • FRDM-K66F

  • Freedom Development Board for Kinetis K26 and K66 MCUs.

  • $60.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
