i.MX Audio Board

MCIMX8M-AUD

Roll over image to zoom in

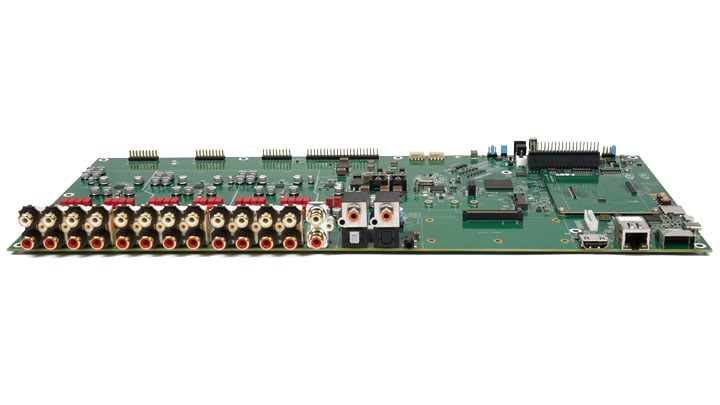

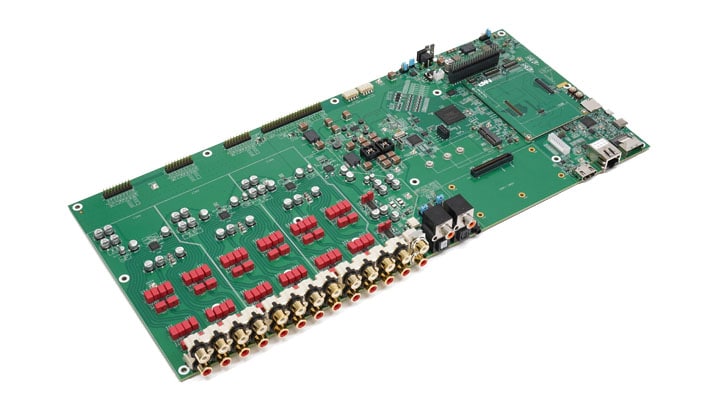

i.MX Audio Board is a configurable and functional audio processing platform. It supports multiple i.MX 8M series processors (including the i.MX 8M Plus, i.MX 8M Mini, and i.MX 8M Nano) and HDMI card boards. Integrating a variety of audio input and output interfaces into the system, the i.MX Audio Board supports HDMI input, HDMI eARC, S/PDIF I/O, 2-ch ADC line-in, 24-ch DAC line-out and more. Based on these features, rich audio application cases can be realized.

The i.MX Audio Board may be used to evaluate NXP’s Immersiv3D™ Audio Framework Software. Together, the reference hardware and software dramatically reduce development time and cost for consumer audio devices with immersive sound.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7
  • IMX8MPLUS: i.MX 8M Plus – Arm® Cortex®-A53, Machine Learning, Vision, Multimedia and Industrial IoT
  • i.MX8MMINI: i.MX 8M Mini - Arm® Cortex®-A53, Cortex-M4, Audio, Voice, Video

Buy Options

MCIMX8M-AUD-Image

Click to expand

  • MCIMX8M-AUD

  • i.MX Audio Board.

  • NOTE: All purchases are subject to approval. Please contact your local sales representative for any questions.

    • i.MX Audio Board
    • Interposer board
    • HDMI card
    • Button Board
    • 12V 5A with DC jack
    • Quick Start Guide
  • $1840.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

2 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    i.MX Audio Board Design Files

    ZIPRev 0Feb 16, 202130.2 MBMCIMX8M-AUD-DESIGNFILES
