i.MX31_LITE_KIT: i.MX31 Lite Development Kit

Overview

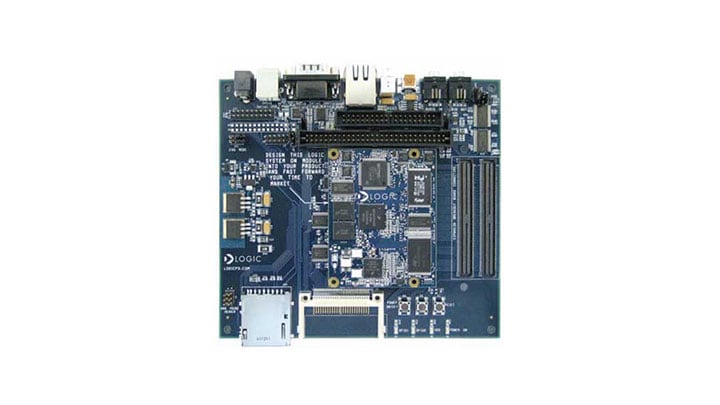

i.MX31 Lite Development Kit Product Image

Specifications

Technical and Functional Specifications

The i.MX31 SOM-LV is based on the i.MX31 multimedia applications processor running up to 532 MHz.
  • LCD Display Connector
  • Integrated LCD, touch, and backlight connector for Zoom Display Kits Audio
  • Stereo input and output jacks Network Support
  • One RJ45 Ethernet jack connector with magnetics (application/debug) PC Card Expansion
  • CompactFlash® Type I card
  • MMC/SD card ATA Support USB
  • One USB 2.0 high-speed host interface
  • One USB high-speed On-the-Go device interface Serial Ports
  • 115.2kbps RS-232 debug serial port Software
  • LogicLoader™ (bootloader/monitor)
  • Windows® CE 5.0 BSP
  • GNU cross development toolchain (compiler, linker, assembler, debugger) Cables
  • Serial cable (null-modem)
  • Ethernet crossover cable
  • USB A to mini-B cable
  • 5 volt power supply (with Europe, Japan, UK, & US adapters) Mechanical
  • 146.1 mm wide x 158.8 mm long x 17.1 mm high RoHS Compliant

Supported Devices

Power Management

PMICs
  • MC13783 : Power Management and Audio Component

Processors and Microcontrollers

i.MX Mature Processors
  • i.MX31 : Applications Processors - Integrated Image Processing Unit (IPU), Connectivity , Arm11™ Core
