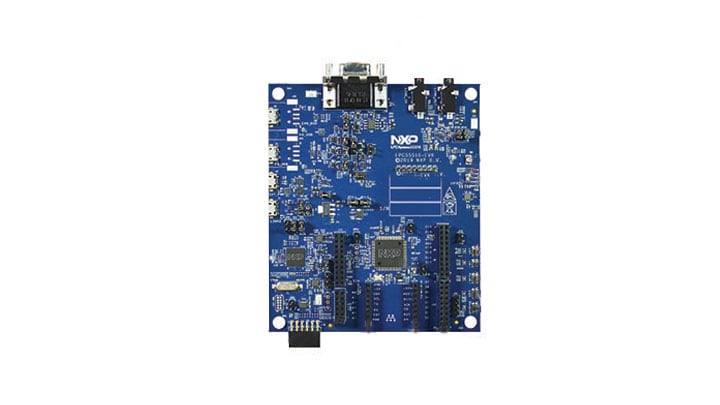

LPCXpresso55S69 Development Board

LPC55S69-EVK

Roll over image to zoom in

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

LPC5500 Arm Cortex-M33

Features

Microcontroller

  • LPC55S69 dual core Arm Cortex-M33 microcontroller running at up to 150 MHz.

Memory Expansion

  • Micro SD card slot (4-bit SDIO).

Connectivity

  • UART and SPI port bridging from LPC55S69 target to USB via the onboard debug probe.
  • High and full speed USB ports with micro A/B connector for host or device functionality.

Debug

  • Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options.
  • Hardware support for external debug probe.

Sensors

  • NXP MMA8652FCR1 accelerometer

Audio

  • Stereo audio codec with a line in/out

Expansion Options

  • MikroEletronika Click expansion option
  • LPCXpresso-V3 expansion connectors compatible with Arduino® UNO Rev3
  • PMod compatible expansion / host connector

User Interface

  • RGB user LED, plus Reset, ISP, Wake, and user buttons

Buy Options

LPC55S69-EVK-Image

Click to expand

    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

2 documents

Design Resources

Select a section:

Design Files

1-5 of 8 design files

  • Printed Circuit Boards and Schematics

    LPCXpresso55S69/55S28 Board Schematic

  • Printed Circuit Boards and Schematics

    LPCXpresso55S69/55S28 Design Files

  • Symbols and Footprints

    Symbols and Footprints for LPC55S66JEV98

  • Symbols and Footprints

    Symbols and Footprints for LPC55S69JBD64

  • Symbols and Footprints

    Symbols and Footprints for LPC55S69JBD100

Show All

Software

1-5 of 17 software files

Show All

Note: For better experience, software downloads are recommended on desktop.

Training

7 trainings

Show All
