Evaluation Board for PF4210, Power Management IC for i.MX 8M

KITPF4210EPEVB

Roll over image to zoom in

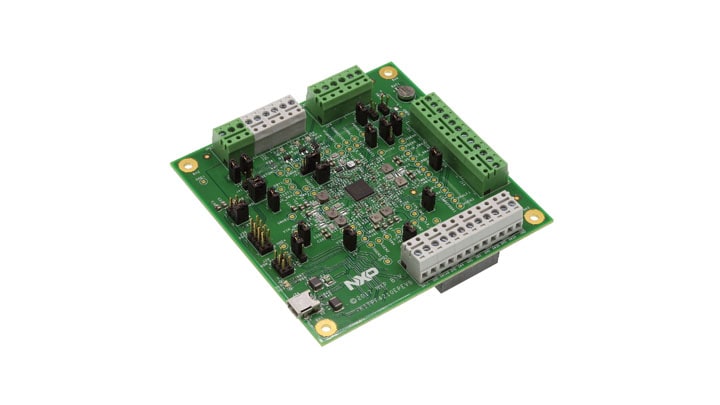

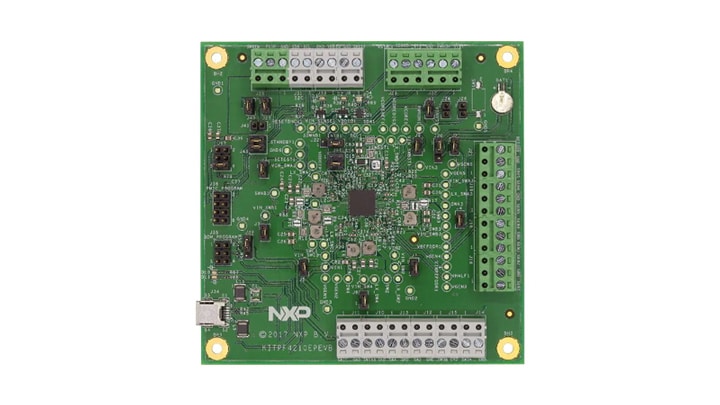

The KITPF4210EPEVB is an easy to use evaluation board for the PF4210 Power Management IC optimized for i.MX 8M. It operates with a single power supply from 3.1 V to 4.5 V and is controlled via USB with help of an integrated USB-I2C communication bridge.

By applying the input voltage supply, the KITPF4210EPEVB powers up according to the default power-up sequence described in the PF4210 data sheet.

Product Details

Supported Devices

Power Management

PMICs

  • PF4210: 14-Channel Power Management IC Optimized for i.MX 8M

Features

Connectivity

  • Onboard connectors for interfacing with future evaluation/debug tools

Power Management

  • Input voltage operation range from 3.1 V to 4.5 V
  • Output voltage supplies accessible through detachable terminal blocks
    • Four to six independent buck converters
    • One 5.0 V boost regulator
    • Six general-purpose LDO regulators
    • One DDR memory termination voltage reference
    • One VSRTC supply

Size

  • Compact form factor (4 x 4 in2)

Interface

  • Integrated USB to I2C programming interface for full control/configuration
    • Onboard PMIC control through the I2C register map
    • Fully featured programmer through J36 for external device control/programming

General Specifications

  • On/off push-button support
  • Hardware configuration flexibility through various jumper headers and resistors
  • Coin cell support for “Try-Before-Buy” (TBB) mode

Buy Options

KITPF4210EPEVB-Image

Click to expand

  • KITPF4210EPEVB

  • Evaluation Board for PF4210, Power Management IC for i.MX 8M.

    • The KITPF4210EPEVB contents include:
    • Assembled and tested KITPF4210EPEVB board in an anti-static bag
    • Quick start guide
    • Warranty card
  • $286.06 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
