Multimedia Applications Processors - Robust Security for Mobile, High Performance, Connectivity, Arm9 Core

  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

Product Details

Select a section:

Block Diagram

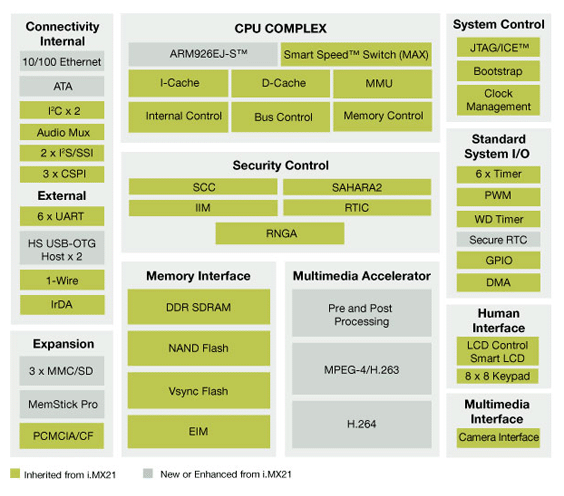

i.MX27 Multimedia Applications Processor Block Diagram

i.MX27 Multimedia Applications Processor Block Diagram

Features

CPU Complex

  • Arm926EJ-S™ 400 MHz core
  • 16 KB L1 I-Cache and D-Cache
  • 16-channel DMA
  • ETM real-time debug
  • Smart Speed switch

Multimedia

  • MPEG®-4 H.263/H.264 D1 HW Codec
  • Pre- and post-processing
  • High-speed CMOS sensor interface

Connectivity

  • 10 and 100 Mbps Ethernet/IEEE802.3MAC
  • USB OTG high speed, host x 2
  • 3 x MMC/SD, Memory Stick-Pro
  • PCMCIA/CF
  • ATA-6 (HDD) interface
  • Audio MUX
  • IrDA, keypad, 1-wire
  • Configurable SPI x 3, SSI/I2S x 2, UART x 6

Product Longevity

Software Update


There are no plans to release WinCE 5.0 for the i.MX27 (alphas, betas, and patches have only been released). Instead, we have a full version of WinCE 6.0 for the i.MX27 ADS board. If you have any issues, please contact your local sales/marketing representative.

Documentation

Quick reference to our documentation types.

1-5 of 30 documents

Show All

Design Resources

Select a section:

Design Files

1-5 of 6 design files

  • Models

    i.MX27 BSDL File for design BONO

  • Models

    i.MX27 17x17 IBIS Model File

  • Models

    i.MX27 19x19 IBIS Model File

  • Models

    i.MX27 preliminary BSDL File

  • Printed Circuit Boards and Schematics

    i.MX27 19x19mm OrCAD Symbol

Show All

Hardware

1 hardware offering

Software

1 software file

  • Development Software - miscellaneous

    [Archive]:Windows Embedded CE6.0 Source Code Files Release 1.0

Note: For better experience, software downloads are recommended on desktop.
