i.MX503 Processors|2D Graphics Acceleration

Product Details

Block Diagram

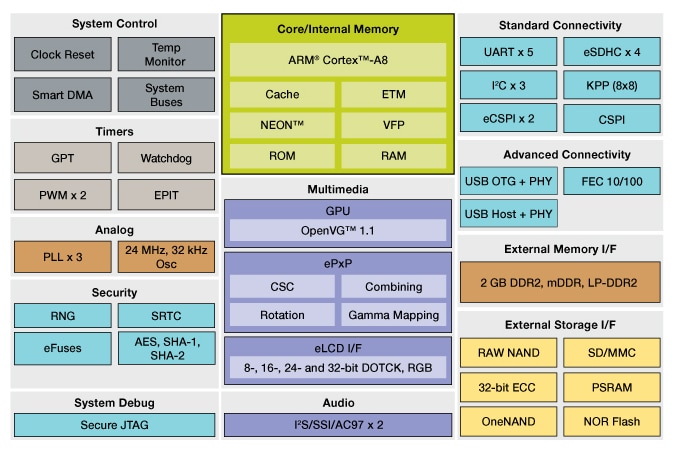

i.MX503 Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

Up to 800 MHz Arm^{^®} Cortex^®-A8
32 KB instruction and data caches
Unified 256 KB L2 cache
NEON™ SIMD media accelerator
Vector floating point coprocessor

Multimedia

OpenVG™ 1.1 hardware accelerator
32-bit primary display support up to SXGA+ resolution
Pixel Processing Pipeline (ePxP) supporting CSC, Combine, Rotate, Gamma Mapping

External Memory Interface

Up to 2GB of LP-DDR2, DDR2 and LP-DDR1(mDDR), 16/32-bit
SLC/MLC NAND flash, 8/16-bit with 32-bit ECC

Advanced Power Management

Multiple independent power domains
State Retention Power Gating (SRPG)
Dynamic voltage and frequency scaling (DVFS)

Connectivity

High-Speed USB 2.0 OTG with PHY
High-Speed USB 2.0 Host with PHY
10/100 Ethernet controller

Controllers

Wide array of serial interfaces, including SDIO, SPI, I2C and UART
I2S audio interface

Product Longevity

This product is included in NXP^{^®}.s product longevity program, with assured supply for a minimum of 10 years after launch
