i.MX507 Processors|Low Power Optimization

Product Details

Block Diagram

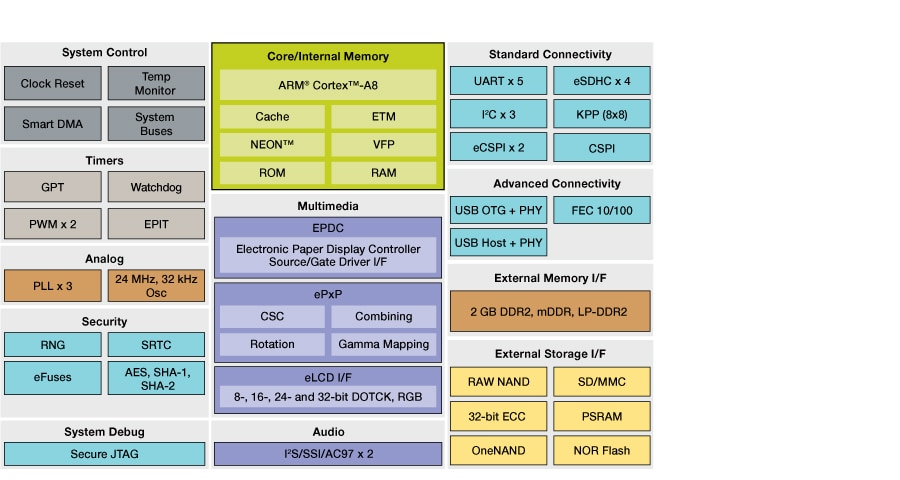

i.MX507 Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

Up to 800 MHz Arm^{^®} Cortex™-A8
32 KB instruction and data caches
Unified 256 KB L2 cache
NEON™ SIMD media accelerator
Vector floating point coprocessor

Multimedia

32-bit primary display support up to SXGA+ resolution
EPD Controller supporting up to 4096 x 4096 resolution
Pixel Processing Pipeline (ePxP) supporting CSC, Combine, Rotate, Gamma Mapping

Simultaneous EPD and LCD support

Pixel Processing Pipeline (PxP) supporting CSC, Combine, Rotate, Gamma Mapping

External Memory Interface

Up to 2GB of LP-DDR2, DDR2 and LP-DDR1(mDDR), 16/32-bit
SLC/MLC NAND flash, 8/16-bit with 32-bit ECC

Advanced Power Management

Multiple independent power domains
State Retention Power Gating (SRPG)
Dynamic voltage and frequency scaling (DVFS)

Connectivity

High-Speed USB 2.0 OTG with PHY
High-Speed USB 2.0 Host with PHY
10/100 Ethernet controller

Controllers

Wide array of serial interfaces, including SDIO, SPI, I2C and UART
I2S audio interface

Product Longevity

This product is included in NXP^{^®}.s product longevity program, with assured supply for a minimum of 10 years after launch
