The i.MX514 multimedia applications processor offers high performance processing optimized for the lowest power consumption combined with hardware accelerated 2D and 3D graphics for navigation, advanced HMI, instrument clusters and telematics. It features Our advanced and power-efficient implementation of the Arm^® Cortex^®-A8 core, which operates at speeds up to 600 MHz.

The i.MX514 is supported by companion NXP^® power management ICs (PMIC), MC13892, MC34704, MC34709 and MMPF0100.

For automotive i.MX51 versions, i.MX516 samples are orderable.

Data Sheet

Reference Manual

Product Details

Block Diagram

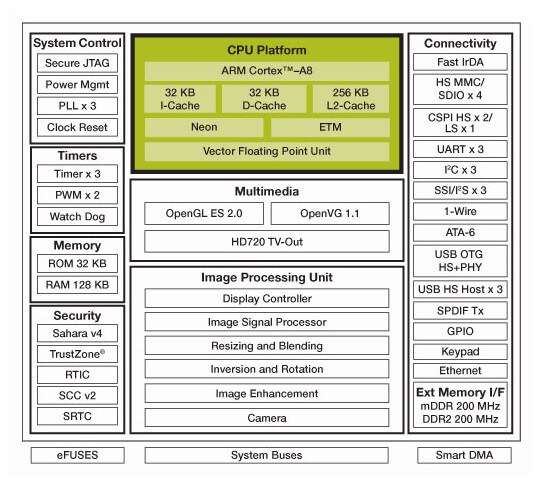

i.MX514 Multimedia Applications Processor Block Diagram

Get diagram PDF

Features

CPU Complex

600 MHz Arm Cortex-A8 CPU
32KB instruction and data caches
Unified 256KB L2 cache
NEON SIMD media accelerator
Vector floating point co-processor

Multimedia

OpenGL^® ES 2.0 and OpenVG 1.1 hardware accelerators
24-bit primary display support up to WXGA resolution
18-bit secondary display support
Image and video resize, inversion and rotation hardware
Alpha blending and color space conversion
Display quality enhancement: color correction, gamut mapping, gamma correction

External Memory Interface

mDDR and DDR2 SDRAM, 16/32-bit, 200MHz
SLC/MLC NAND flash, 8/16-bit

General

Interface Flexibility
Advanced Power Management

Product Longevity

This product is included in NXP’s product longevity program, with assured supply for a minimum of 10 years after launch
