Integrated ColdFire® Version 2 Microprocessor

  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

Product Details

Block Diagram

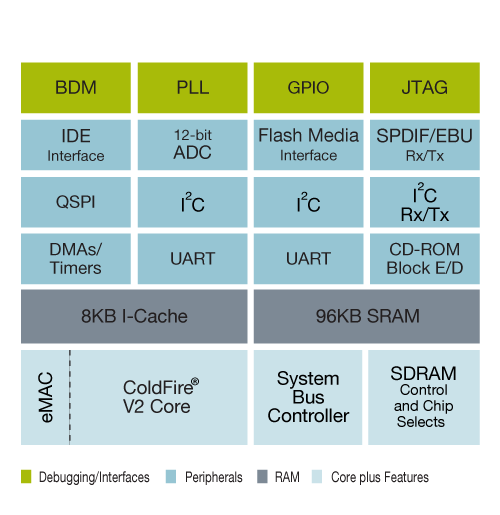

ColdFire MCF524X Microcontroller Block Diagram

ColdFire MCF524X Microcontroller Block Diagram

Features

  • 96 KB static random access memory (SRAM)
  • 8 KB instruction cache
  • eMAC
  • Debug module (background and real time)
  • Synchronous dynamic random access memory controller (SDRAM)
  • System integration (phase-lock loop, software watchdog)
  • Integrated peripherals
    • 4 programmable chip selects
    • 4-channel direct memory access (DMA)
    • 2 independent universal asynchronous receiver and transmitter (UARTs)
    • 2 independent 16-bit timers
    • 2 I²C interfaces
    • 2 independent 6-bit channel
    • Queued serial peripheral interface (QSPI)
    • CD-ROM block decoder/encoder

Key Parametrics

  • Status
    Not Recommended for New Designs
  • Budgetary Price ($US)
    113.85
