ColdFire® V3 Microprocessor with LCD driver, Ethernet, USB and CAN

  • Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

Product Details

Block Diagram

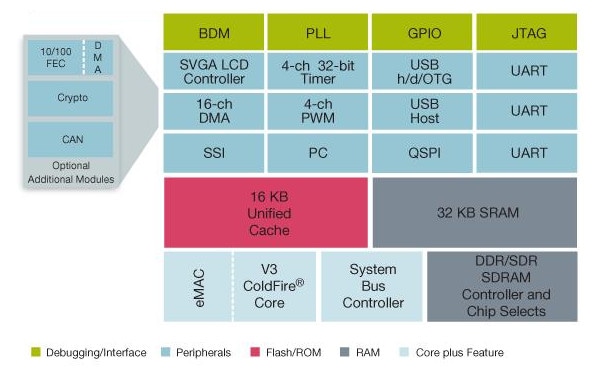

ColdFire MCF532X Microprocessor Block Diagram

ColdFire MCF532X Microprocessor Block Diagram


  • ColdFire® V3 core delivering up to 211 (Dhrystone 2.1) MIPS @ 240 MHz
  • 32 KB RAM
  • 16 KB I/D-cache
  • Enhanced multiply-accumulate (MAC) module handles DSP-like instructions
  • Integrated peripherals
    • USB host/USB on-the-go (OTG)
    • FlexCAN 2.0B
    • 10/100 fast Ethernet controller (FEC)
    • Three universal asymchronous receiver/transmitters (UARTs)
    • I²C bus interface
    • Queued serial peripheral interface (QSPI)
    • Serial synchronous interface (SSI)
    • Pulse width modulation (PWM): four channels
    • Real-time clock
    • Direct memory access (DMA): 16 channnels
    • 16-bit DDR/32-bit SDR SDRAM controller
    • Integrated SVGA LCD controller
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch

Part numbers include: MCF5327CVM240, MCF53281CVM240, MCF5328CVM240, MCF5329CVM240.
