MPC5746R Scalable Engine Control MCU

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The MPC5746R Power Architecture^® MCU targets industrial and automotive engine/transmission control applications that require advanced performance, timing systems and functional safety capabilities. The family offers a high performance multi-core architecture with industry standard eTPU based timer system. Scalable Flash, core configurations and packaging options are available along with the highest level of functional safety (ASIL-D) support.

Data Sheet

Reference Manual

Product Details

Block Diagram

MPC5746R 4M Block Diagram

Get diagram PDF

Features

Two independent 200MHz Power Architecture^® z4 cores
Single 200MHz z4 core in Lockstep with one of the main cores
4M Flash
320kB total SRAM
2 eTPU+ timers with 64 channels
eMIOS timer with 32 channels
Ethernet 10/100
4 Sigma Delta and 3 SAR ADC converters
Built to support functional safety (ISO 26262/ASIL-D)
252 MAPBGA, 176 LQFP and 144 LQFP packages
-40 to 125C Ta Operation

MPC574xR Family Comparison Table

			MPC5746R	MPC5745R	MPC5743R
CPU	Clock	MHz	200	Up to 200	200
	Main core	number	2	2	1
	Locked step core	number	1	1	1
Flash	Code flash	KB	4,000	2,976	1,952
Flash	Data flash	KB	256	256	256
RAM	Total System RAM	KB	256	192	128
Complex Timer	eTPU	mod/ch	2/64	2/64	2/64
	eMIOS	mod/ch	2/32	2/32	2/32
	Reaction Module	ch	10	10	10
LINFlex (UART)		ch	4+2MSC	4+2MSC	3+2MSC
DSPI		ch	5+2MSC	5+2MSC	4+2MSC
SENT		ch	6	6	6
CAN	CAN 2.0	mod/MB	4/64	4/64	4/64
SAR ADC		mod/ch	4	4	4
SD ADC		mod/ch	3	3	3
DECIMATION FILTER		mod	2	2	2
PKG		-	MAPBGA252	MAPBGA252 LQFP176	LQFP176 LQFP144

Design Resources

Hardware

5 hardware offerings

^{Evaluation and Development Boards}
MPC5746R Engine Management Evaluation SystemFeatured

MPC5746REVB
^{Emulators, Probes, and Programmers}
PEmicro Cyclone FX programmer

CYCLONE-FX
^{Emulators, Probes, and Programmers}
Universal Multilink FX High-Speed Development Interface

U-MULTILINK-FX
Additional hardware available. View our featured partner solutions.
^{Adapters, Cables, Sockets}
Zipwire Cable Assembly

SIPI-ERM8-ZIPCBL
^{Evaluation and Development Boards}
MPC5646C Devlce and Target Adapters

MPC5646C-DB

1-5 of 12 hardware offerings

^{Test Accessories and Debugger}
Universal Access Device 3+ (UAD3+)

The UAD3+, equipped with up to 4 GB of trace memory and powerful interfaces to target and host, is the right solution for trace, multicore debugging, profiling and code c...

By PLS Development Tools Gold Partner
^{Test Accessories and Debugger}
TRACE32 JTAG/BDM Debugger for Power Architecture

Lauterbach has over 40 years of experience in making world class microprocessor development tools. TRACE32 supports technologies like JTAG, SWD, NEXUS or ETM with embedde...

By Lauterbach Gold Partner
^{Test Accessories and Debugger}
USB Multilink Universal FXUPDATED

Multilink Universal FX is a high-speed,BDM/JTAG debug probe for Kinetis, LPC, S32, Qorivva MPC5xxx, MPC5xx/8xx, ColdFire, HC(S)12(X), S12Z, HCS08, RS08, DSC, 683xx, & HC1...

By P & E Microcomputer Systems, Inc Gold Partner
^{Test Accessories and Debugger}
CYCLONE LCUPDATED

Production programmer. Models support high-speed, low-cost, in-circuit flash programming, debugging, & test of many NXP 8-/16-/32-bit systems. Stand-alone or host-control...

By P & E Microcomputer Systems, Inc Gold Partner
^{Test Accessories and Debugger}
TRACE32 Debug and Aurora NEXUS Trace for MPC5XXX

Lauterbach has over 40 years of experience in making world class microprocessor development tools. TRACE32 NEXUS for is a high-end debug and trace system for MPC5XXX with...

By Lauterbach Gold Partner
^{Test Accessories and Debugger}
Vitra-PPC

Hardware Emulation and Trace system for embedded development with NXP’s Power Architecture® devices featuring (i) Non-intrusive debugging, (ii) Full Instruction Trace and...

By Ashling Microsystems Gold Partner
^{Test Accessories and Debugger}
USB Multilink UniversalUPDATED

The USB Multilink Universal is an all-in-one BDM/JTAG debug probe for NXP Kinetis, LPC, i.MX RT, S32, HCS08, HC(S)12(X), S12Z, RS08, ColdFire V1/+V1, ColdFire V2-4*, Qori...

By P & E Microcomputer Systems, Inc Gold Partner
^{Test Accessories and Debugger}
Universal Access Device 2next (UAD2next

The (UAD2next) combines the state-of-the-art debugging features and CAN with trace capabilities. It can be extended by plugin trace modules supporting e.g. ARM CoreSight ...

By PLS Development Tools Gold Partner
^{Test Accessories and Debugger}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum Partner
^{Test Accessories and Debugger}
Universal Access Device 2pro (UAD2pro)

The UAD2pro offers fast and flexible communication between Universal Debug Engine on the Host PC and the microcontroller target. Host interface is USB 2.0. Target interfa...

By PLS Development Tools Gold Partner
^{Test Accessories and Debugger}
CYCLONE FXUPDATED

Advanced Cyclone programmer. Models support high-speed in-circuit flash programming, debugging, and test of many NXP 8-/16-/32-bit MCUs. Enhanced speed/security/storage...

By P & E Microcomputer Systems, Inc Gold Partner
^{Embedded Board Solutions}

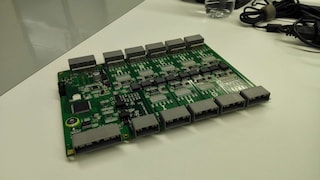

Battery Management System
