Name: PN512 reader board
Price: 178.02 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

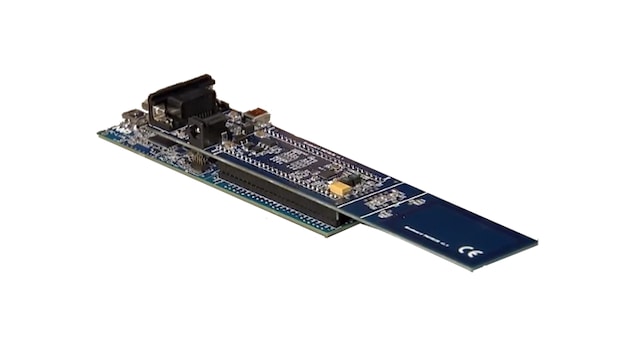

PN512 reader board stacked on top of LPC-link board supporting NXP^®'s Arm-based microcontrollers

Design Files

Software

Product Details

Supported Devices

RFID

NFC Readers

PN5120A0ET: Full NFC Forum-Compliant Frontend
PN5120A0HN: Full NFC Frontend
PN5120A0HN1: Full NFC Frontend
PN512AA0HN1: Full NFC Frontend

Features

Connectivity

Power supply by USB cable
Antenna can be separated from reader section

Tools and OS Support

Simple to understand software based on NXP^® Reader Library incl. examples for fast development supporting LPC1769 development board
Supports full development environment of LPCXpressoTM

Polling Loop
MIFARE^® Ultralight, MIFARE Classic^®, MIFARE DESFire^® EV1
Exemplary Implementation of a Tag 4 Type Emulation
Exemplary Implementation of a Peer to Peer Communication with a Phone

Buy Options

Click to expand

PNEV512B
Active
PN512 reader board.

$178.02 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 50
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

5 documents

User Guide
NXP Reader Library User Manual based on CLRC663 and PN512 Blueboard Reader projectsGetting Started

PDFRev 1.3Aug 5, 2018619.6 KBUM10663English, 中文

Account Required
User Guide
NXP Reader Library Peer to Peer User Manual based on CLRC663 and PN512 Blueboard Reader projectsGetting Started

PDFRev 1.2Aug 5, 20181.8 MBUM10721English

Account Required
Application Note

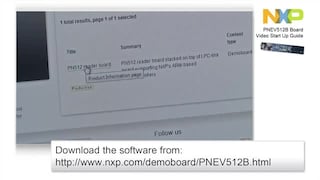

Quick Start Up Guide PNEV512B Board

PDFRev 2.5Sep 26, 20182.9 MBAN11308English
Application Note
Guide about how to port the Passive Target example from the NFC Reader Library to another MCU

PDFRev 1.0Aug 12, 2014676.0 KBAN11583English
Application Note
How to Scale Down the NXP Reader Library

PDFRev 1.0Mar 11, 2013184.1 KBAN11342English

Design Resources

Design Files

Quick reference to our design files types.

1 design file

Printed Circuit Boards and Schematics
Schematics and BOM for PNEV512B

ZIPRev 1.0Aug 6, 2014 00:00:001.9 MBSW302410
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Software

Quick reference to our software types.

1 software file

BSPs and Device Drivers
NFC Reader Library v4.040.05.011646 R1 for PNEV512B including all software examples.

ZIPRev 3.9Nov 24, 2016 00:00:0015.5 MBSW2979

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Note: For better experience, software downloads are recommended on desktop.
