2x2 Tri-band (2.4G/5/6 GHz) Wi-Fi® 6E and Bluetooth Combo Solution
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

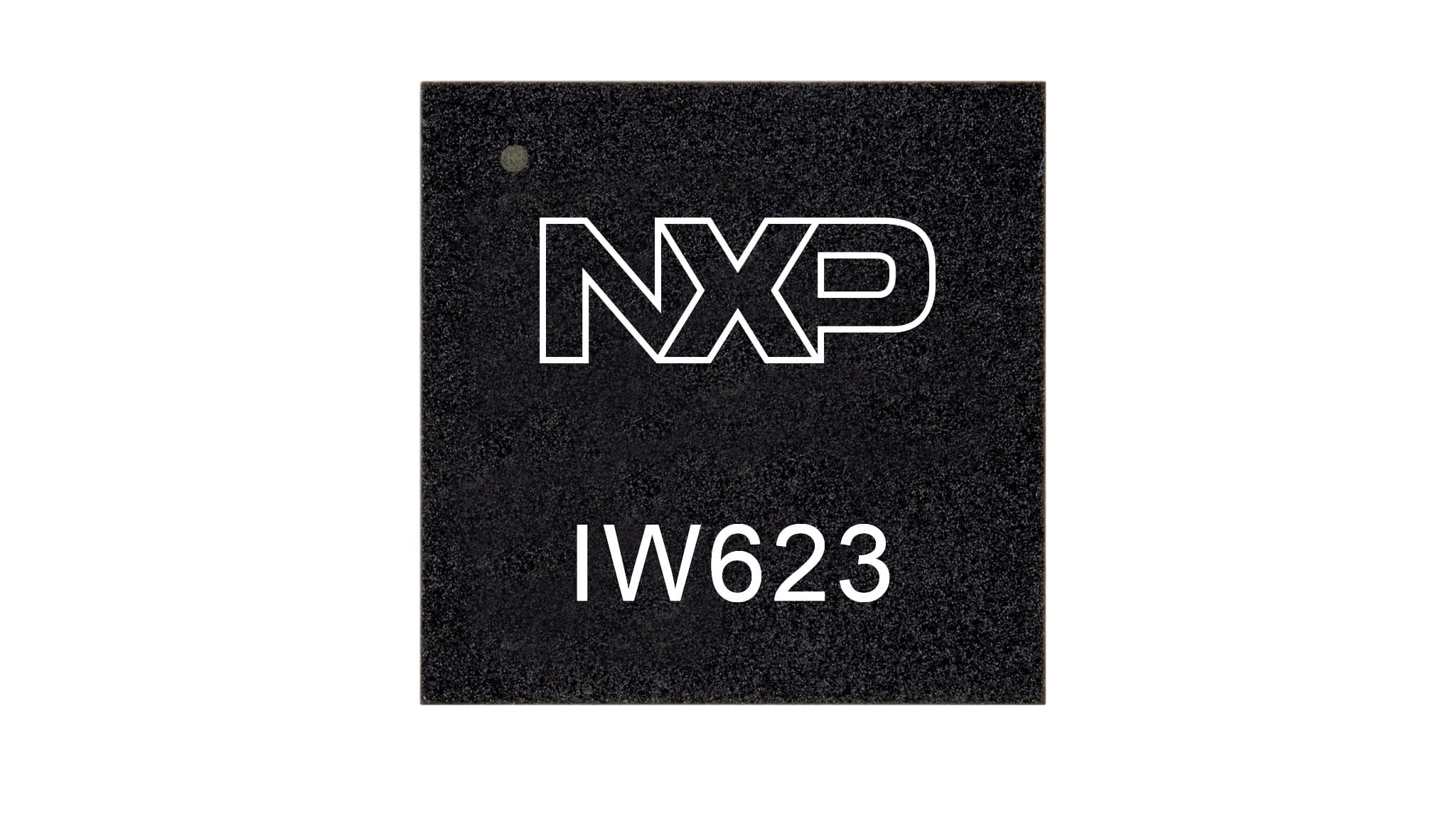

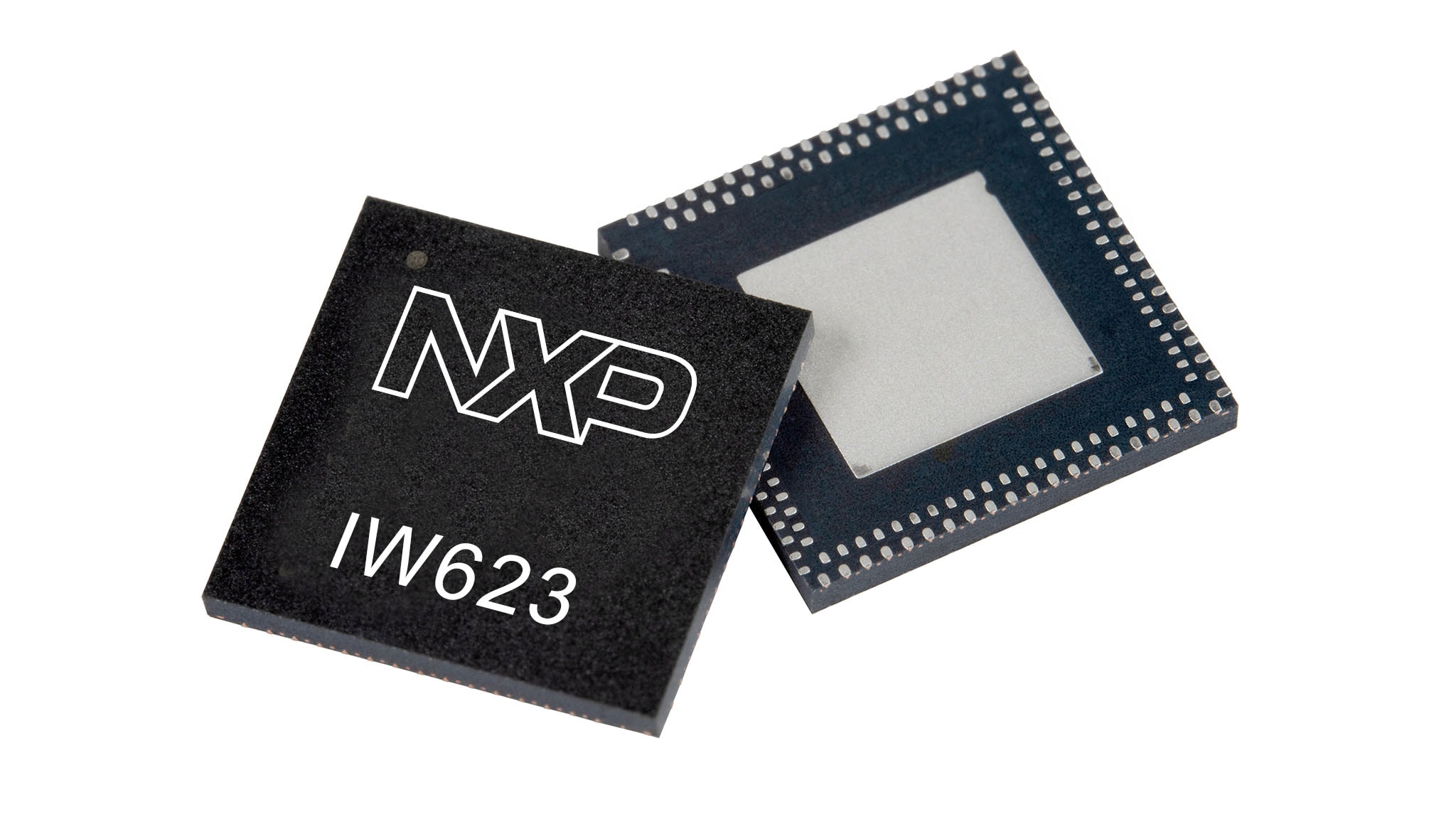

The IW623 is a highly integrated Wi-Fi 6E device enabling Tri-Band (2.4 GHz, 5 GHz and 6 GHz) Wi-Fi 6E and Bluetooth operation. Supporting a 2x2 MIMO configuration in the 2.4 GHz and 5-7 GHz bands, the System-on-chip (SoC) for IW623 implements advanced features including MU-MIMO, OFDMA, target wake-up time (TWT), and Bluetooth LE Audio.
Product Details
Block Diagram
Choose a diagram:
Features
Wi-Fi Key Features
- 2x2 radios
- Wi-Fi 6E Tri-Band (2.4 GHz, 5 GHz and 6 GHz)
- STA and mobile AP
- Wireless multi-streaming
- Adaptive scheduler
- Agile channel switching
- Wi-Fi TSF host clock sync between AP and STA
- PCIe and SDIO host interface
Bluetooth Key Features
- High speed, long range, advertising extensions
- Isochronous channels supporting LE Audio
- Integrated PA (+13 dBm)/LNA/SW
- UART host interface
IW623 Product Family Offers
| IW623 | Operation Mode | Host Interface |
|---|---|---|
| IW623P | 2x2 (2.4/5/6 GHz) Wi-Fi 6E TB | PCIe |
| IW623S | 2x2 (2.4/5/6 GHz) Wi-Fi 6E TB | SDIO |
Partner Modules
IW623
2x2 Tri-band (2.4G/5/6 GHz) Wi-Fi® 6E and Bluetooth Combo Solution| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|
JODY-W673-00B |
PCIe | UART, PCM/I²S | -40 to 85 | Antenna pin(s) | 3 | SMD | 13.8 x 19.8 x 2.5 | AEC-Q104; FCC/ISED, RED/UKCA, GITEKI, BTSIG | i.MX 6/7/8/9 |
|
JODY-W673-50B |
SDIO | UART, PCM/I²S | -40 to 85 | Antenna pin(s) | 3 | SMD | 13.8 x 19.8 x 2.5 | AEC-Q104; FCC/ISED, RED/UKCA, GITEKI, BTSIG | i.MX 6/7/8/9 |
|

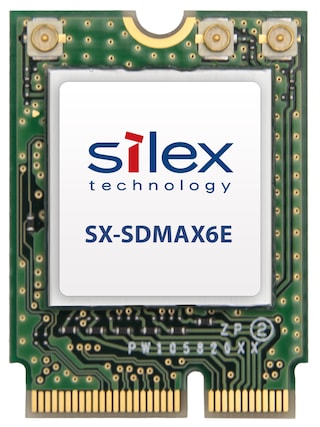

SX-SDMAX6E-M2 |
SDIO | UART | -40 to 85 | U.FL Connector(s) | 2 | M.2 E-Key | 22.0 x 30.0 x 4.45 | FCC, ISED, CE, UKCA, MIC | i.MX |
|

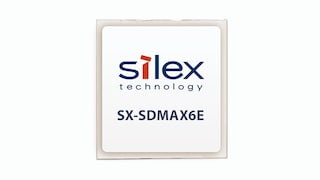

SX-SDMAX6E-2530S |
SDIO | UART | -40 to 85 | RF Pin (Trace) | 2 | SMD | 17.0 x 18.0 x 2.65 | FCC, ISED, CE, UKCA, MIC | i.MX |
